Quick Details
-
Brand Name:
-
SDIEM
-
Model Number:
-
INR18650-25RM
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
50 g
-
The charging ratio:
-
1C
-
The discharge rate:
-
7.5C
-
Type:
-
Li-Ion
-
Cycle life:
-
1000 Times
-
Nominal Voltage:
-
3.6V
-
Nominal Capacity:
-
2500mAh
-
OEM/ODM:
-
Available
-
Sample:
-
Available
-
Certification:
-
UN38.3
-
Warranty:
-
12 months
Quick Details
-
Storage Type:
-
normal temperature
-
Anode Material:
-
Other
-
Application:
-
Power Tools, Home Appliances, Consumer Electronics, Golf Carts, Electric Bicycles/Scooters, electric vehicles, Electric Power Systems
-
Brand Name:
-
SDIEM
-
Model Number:
-
INR18650-25RM
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
50 g
-
The charging ratio:
-
1C
-
The discharge rate:
-
7.5C
-
Type:
-
Li-Ion
-
Cycle life:
-
1000 Times
-
Nominal Voltage:
-
3.6V
-
Nominal Capacity:
-
2500mAh
-
OEM/ODM:
-
Available
-
Sample:
-
Available
-
Certification:
-
UN38.3
-
Warranty:
-
12 months

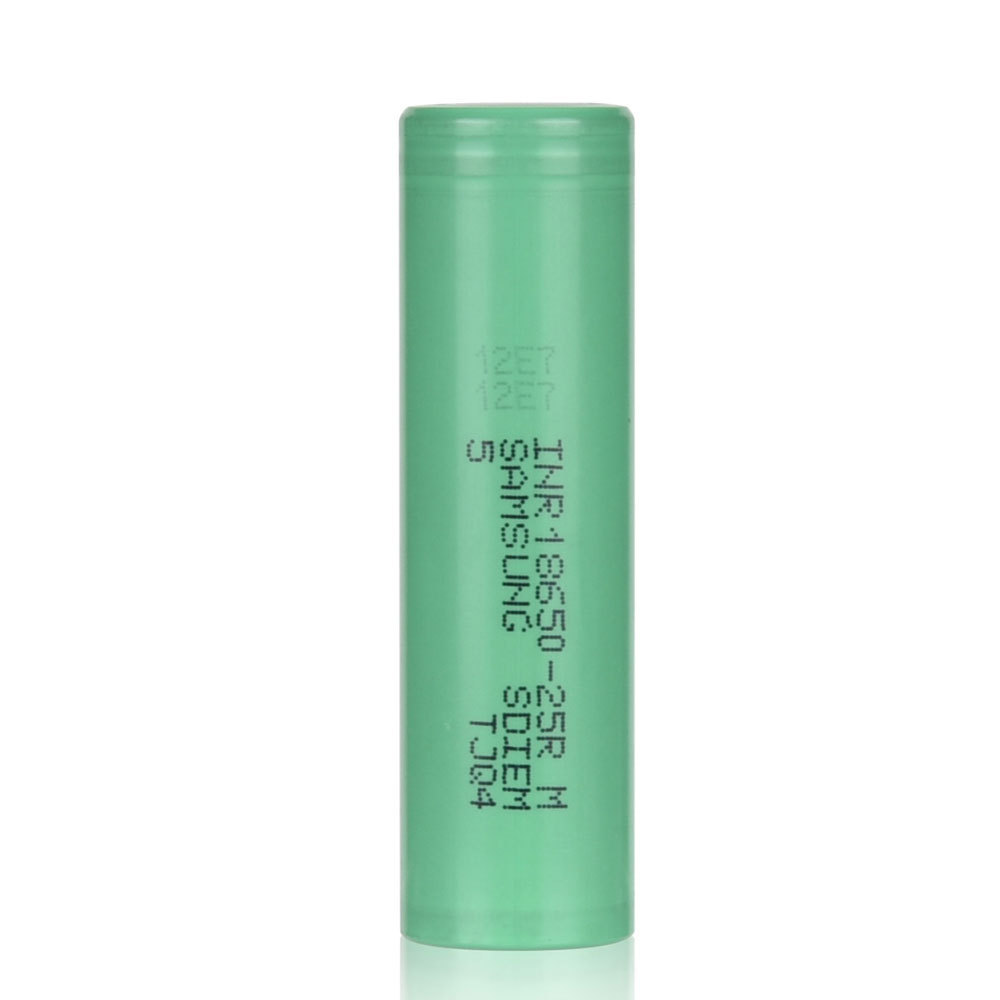

Original INR 18650 25RM 2500mAh 20A High Capacity Battery for SAMSUNG
Brand: SAMSUNG
Type: INR18650-25RM
Long service life: 1,000 cycles
Application: Electric power tool, car battery,High rate discharge equipment etc.
Specification:
High quality rechargeable li-ion cell INR18650-25R.
Brand: Samsung SDIEM
Type: 18650
Nominal voltage: 3.6V
Nominal capacity: 2500mAh
Max continuous discharge current: 20A
Standard discharge current: 2500 mAh
Charge: 1.25A, 4.20V,CCCV 100mA cut-off.
Discharge: 0.2C,2.5V discharge cut-off.
Quick charge: CCCV, 4A, 4.20 ± 0.05 V, 100mA cut-off
Charge time:
Standard charge: 180 min/ 100 mA cut-off
Quick charge: 60 min (at 25℃)/100mA cut-off
Discharge cut-off voltage: 2.5V
Cell weight: 49.0 g max
Size: height:64.85 ± 0.15mm ,diameter: 18.33 ± 0.07mm
| Item | Specification |
| Nominal discharge capacity |
2500 mAh Charge: 1.25A,4.20V,CCCV 100mA cut-off Discharge: 0.2C,2.5V discharge cut-off |
| Nominal voltage | 3.6V |
| Standard charge | CCCV,1.25A,4.20±0.05V,100 mA cut-off |
| Rapid charge | CCCV,4A,4.20±0.05V,100 mA cut-off |
| Charging time |
Standard charge: 180 min/100 mA cut-off Rapid charge: 60 min (at 25℃)/100 mA cut-off |
| Max.continuous discharge | 20A (at 25℃),60% at 250 cycle |
|
Discharge cut-off voltage End of discharge |
2.5V |
| Cell weight | 45.0 g max |
| Cell dimension |
Height: 64.85±0.15 mm Diameter: 18.33±0.07 mm |
|
Operating temperature (surface temperature) |
Charge: 0 to 50℃ (recommended recharge release <45℃) Discharge:-20 to 75℃ (recommended re-discharge release <60℃) |
|
Storage temperature (Recovery 90% after storage |
1.5 year -30~25℃ 3 months -30~45℃ 1 month -30~60℃ |
