- Product Details
- {{item.text}}
Quick Details
-
Power:
-
22.1KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AIWEIYA
-
Maximum Digging Height:
-
3200mm
-
Maximum Digging Depth:
-
2000mm
-
Machine Weight:
-
1800 kg
-
Max Digging Radius:
-
3600mm
-
Rated Speed:
-
2.5km/h
-
Marketing Type:
-
New Product 2024
-
Warranty of core components:
-
1 year
-
Model Number:
-
AWY20 Excavator
-
Engine Power:
-
22.1KW/2200RPM
-
Bucket Capacity:
-
0.06m³
-
Max. traction:
-
12KN
-
Total track length:
-
1890mm
-
Wheel tread:
-
1040mm
-
Platform ground clearance:
-
900mm
-
Overall Dimension (LxWxH):
-
3100x1300x2350mm
Quick Details
-
Operating Weight:
-
2ton, 2000kgs
-
Bucket capacity:
-
0.06m³
-
Engine Brand:
-
Laidong L385, Laidong L385
-
Power:
-
22.1KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AIWEIYA
-
Maximum Digging Height:
-
3200mm
-
Maximum Digging Depth:
-
2000mm
-
Machine Weight:
-
1800 kg
-
Max Digging Radius:
-
3600mm
-
Rated Speed:
-
2.5km/h
-
Marketing Type:
-
New Product 2024
-
Warranty of core components:
-
1 year
-
Model Number:
-
AWY20 Excavator
-
Engine Power:
-
22.1KW/2200RPM
-
Bucket Capacity:
-
0.06m³
-
Max. traction:
-
12KN
-
Total track length:
-
1890mm
-
Wheel tread:
-
1040mm
-
Platform ground clearance:
-
900mm
-
Overall Dimension (LxWxH):
-
3100x1300x2350mm
Products Description

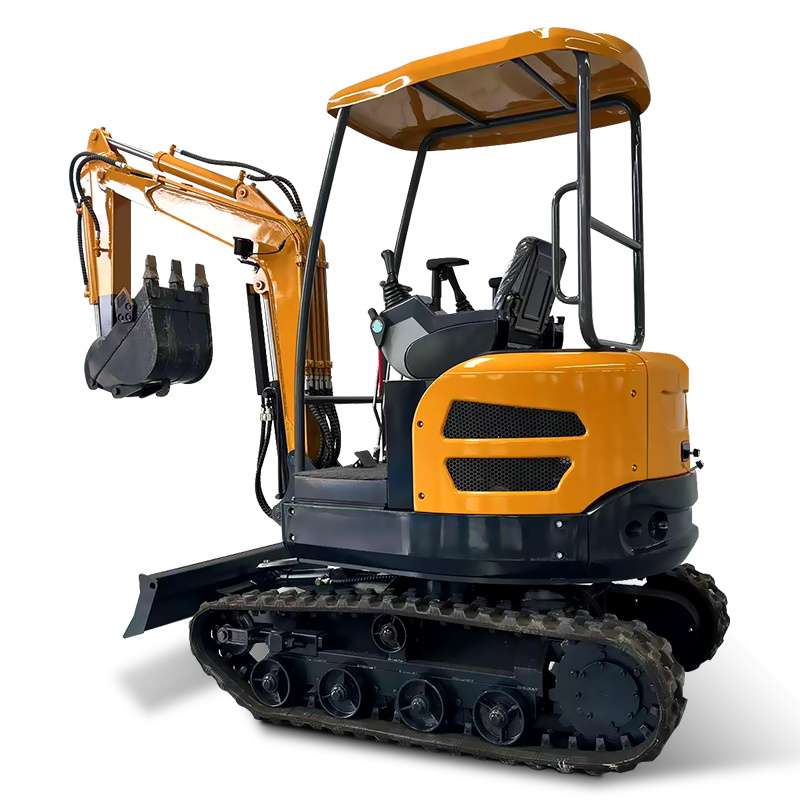

Aiweiya Minibagger Diesel Engine 2 ton Mini Excavator
1. Compact appearance: The excavator adopts a compact design and is suitable for operation in small working spaces. , can easily enter narrow areas for work.
2. Simple operation: This excavator adopts an intuitive and easy-to-understand operating interface and operating lever, allowing operators to easily master and operate it, lowering the threshold for use.
3. Powerful: The tri-cylinder water-cooled excavator is equipped with a high-performance engine with strong power output, which can easily cope with various construction site environments and operating needs.
4. Complete configuration: The excavator comes with a variety of accessories and tools, such as different types of buckets and hydraulic clamps, to meet different operating needs and excavation requirements.
5. Reliable and stable: Laidong engine is a reputable machinery manufacturer whose products have stable and reliable performance and can run continuously for a long time, reducing the possibility of repairs and failures.
1. Compact appearance: The excavator adopts a compact design and is suitable for operation in small working spaces. , can easily enter narrow areas for work.
2. Simple operation: This excavator adopts an intuitive and easy-to-understand operating interface and operating lever, allowing operators to easily master and operate it, lowering the threshold for use.
3. Powerful: The tri-cylinder water-cooled excavator is equipped with a high-performance engine with strong power output, which can easily cope with various construction site environments and operating needs.
4. Complete configuration: The excavator comes with a variety of accessories and tools, such as different types of buckets and hydraulic clamps, to meet different operating needs and excavation requirements.
5. Reliable and stable: Laidong engine is a reputable machinery manufacturer whose products have stable and reliable performance and can run continuously for a long time, reducing the possibility of repairs and failures.
|
Model
|
|
Unit
|
AWY20
|
|||
|
Performance Parameters
|
|
|
|
|||
|
Operating weight
|
|
kg
|
2000
|
|||
|
Canopy/Cabin
|
|
|
Cabin
|
|||
|
Bucket
|
Capacity
|
m³
|
0.06
|
|||
|
|
Width
|
mm
|
400
|
|||
|
|
Max. digging force
|
kN
|
12
|
|||
|
Arm digging force
|
|
kN
|
5
|
|||
|
Engine
|
Brand/Model
|
|
Laidong L385
|
|||
|
|
Rated power/speed
|
kW/rpm
|
22.1KW/2200RPM
|
|||
|
|
Displacement
|
lt
|
1.617
|
|||
|
Main pump
|
Flow rate
|
lt/min
|
24/24
|
|||
|
Motors
|
Swing motor
|
cc
|
400
|
|||
|
|
Traveling motor
|
cc
|
200
|
|||
|
Running speed (high/low)
|
|
km/h
|
2.8
|
|||
|
Max. traction
|
|
kN
|
12
|
|||
|
Ground pressure
|
|
kPa
|
23
|
|||
|
Gradeability
|
|
°
|
30
|
|||
|
Fuel tank capacity
|
|
lt
|
45
|
|||
|
Hydraulic oil tank capacity
|
|
lt
|
30
|
|||
|
Boom deflection (left/right)
|
|
°
|
Left 58 Right 31
|
|||
|
Slewing speed
|
|
r/min
|
10
|
|||
|
Swing radius (minimum)）
|
|
mm
|
2100
|
|||
|
Scope of Work
|
|
|
|
|||
|
Max. digging height
|
|
mm
|
3200
|
|||
|
Max. dumping height
|
|
mm
|
2200
|
|||
|
Max. digging depth
|
|
mm
|
2000
|
|||
|
Max. vertical digging depth
|
|
mm
|
2000
|
|||
|
Max. digging radius
|
|
mm
|
3600
|
|||
|
Dozer blade (Length*Width)
|
|
mm
|
1300*300
|
|||
|
Max. lift height of the dozer blade
|
|
mm
|
210
|
|||
|
Max. digging depth of the dozer blade
|
|
mm
|
150
|
|||
|
Outline Dimensions
|
|
|
|
|||
|
Overall Dimension (LxWxH)
|
|
mm
|
3100x1300x2350
|
|||
|
Total track length
|
|
mm
|
1890
|
|||
|
Wheel tread
|
|
mm
|
1040
|
|||
|
Platform tail slewing radius
|
|
mm
|
950
|
|||
|
Platform ground clearance
|
|
mm
|
900
|
|||
|
Chassis ground clearance
|
|
mm
|
260
|
|||
|
Chassis width
|
|
mm
|
1300
|
|||
|
Track width
|
|
mm
|
245
|
|||
|
Track height
|
|
mm
|
490
|
|||
