Quick Details
-
Voltage:
-
380V, can be customized as user's needs
-
Weight (T):
-
4 T
-
Power (kW):
-
0
-
Rated temperature:
-
650℃
-
Furnace hearth size:
-
3000mm*1000mm*1000mm (L*W*H)
-
Max.loading capacity:
-
5000KG
-
Weight:
-
4000KG
Quick Details
-
Place of Origin:
-
Henan, China
-
Marketing Type:
-
New Product 2024
-
Brand Name:
-
MTL
-
Voltage:
-
380V, can be customized as user's needs
-
Weight (T):
-
4 T
-
Power (kW):
-
0
-
Rated temperature:
-
650℃
-
Furnace hearth size:
-
3000mm*1000mm*1000mm (L*W*H)
-
Max.loading capacity:
-
5000KG
-
Weight:
-
4000KG

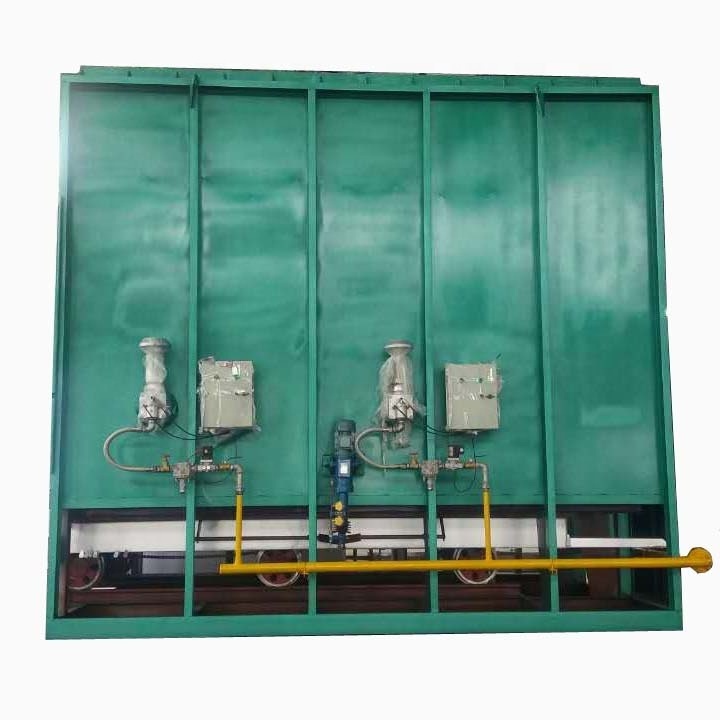

Nature Gas Trolley Type S
intering Furnace
This nature gas trolley type furnace is mainly used for sintering and drying of various metal, ceramic shuttle and cookware sintering furnace. It can realize the automatic control of temperature and the automatic in and out of trolley.
Main technical parameters
1.Working temperature: 0-1000℃
2.Furnace hearth size: depends on the size and loading capacity of the user's workpiece.
3.Heating zone qty: based on the depth of the furnace.
4.Rated voltage: 380V-3P-50HZ or customized as user's request.
5.Temp control precision: ±1℃
6.Furnace temp uniformity: ±10-15℃
7.Temperature control: PID intelligent instrument temperature control
8.Furnace Lining: Adopt high purity and molding heat-resistant fiber structure, special stainless steel fixed.
9.Door opening mode: open up and down open or side open.
10.Trolley walking speed: 6-8m/min
11.Heating method: nature gas,LPG, or electric resistance
2.Furnace hearth size: depends on the size and loading capacity of the user's workpiece.
3.Heating zone qty: based on the depth of the furnace.
4.Rated voltage: 380V-3P-50HZ or customized as user's request.
5.Temp control precision: ±1℃
6.Furnace temp uniformity: ±10-15℃
7.Temperature control: PID intelligent instrument temperature control
8.Furnace Lining: Adopt high purity and molding heat-resistant fiber structure, special stainless steel fixed.
9.Door opening mode: open up and down open or side open.
10.Trolley walking speed: 6-8m/min
11.Heating method: nature gas,LPG, or electric resistance
Please provide the following detail information when request for quotation.
1.What’s the workpiece?
2.What’s the steel raw material of workpiece?
3.What’s the size and weight of max. workpiece?
4.What’s the output of each batch?
5.What’s the furnace used for? Is it sintering or others?
6.What’s the heating mode? Nature gas, LPG or electric resistance?
2.What’s the steel raw material of workpiece?
3.What’s the size and weight of max. workpiece?
4.What’s the output of each batch?
5.What’s the furnace used for? Is it sintering or others?
6.What’s the heating mode? Nature gas, LPG or electric resistance?
