Quick Details
-
Power:
-
74-55KW
-
Weight:
-
1500 KG
-
Dimension(L*W*H):
-
2500*1500*2200mm
-
Name:
-
dry dog food making machine
-
Motor:
-
single/three phase electric
-
Usage:
-
dog food
-
Production Capacity:
-
100-500kg/h
-
type:
-
automatic
-
mold shape:
-
can be customized
-
Final products:
-
dog feed pellet
-
screw diameter:
-
40-100mm
-
Feature:
-
stainless steel
-
After Warranty Service:
-
Spare parts
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Newest
-
Voltage:
-
380V/50HZ
-
Power:
-
74-55KW
-
Weight:
-
1500 KG
-
Dimension(L*W*H):
-
2500*1500*2200mm
-
Name:
-
dry dog food making machine
-
Motor:
-
single/three phase electric
-
Usage:
-
dog food
-
Production Capacity:
-
100-500kg/h
-
type:
-
automatic
-
mold shape:
-
can be customized
-
Final products:
-
dog feed pellet
-
screw diameter:
-
40-100mm
-
Feature:
-
stainless steel
-
After Warranty Service:
-
Spare parts
New design pet food production line/extruder pet food/dry dog food making machine
Description of dog food making machine
| Pet dog food production line is plant or animal material intended for consumption by dogs or other canines. In extruder, the ingredients are cooked under intense heat and pressure as it moves toward the open end of the extruder where ingredients pass through a shaping die and knife. |
Application of dog food making machine
|
Raw materials: adopts fish meal, brown rice, bone meal or fresh meat, chicken meal, colleseed oil, oat fibre etc as raw materials
Products:
different shapes are made by adjusting the dies from extruder
Capacity:
30-40kg/h,70-80kg/h,100-150kg/h, 200-240kg/h, 400-500kg/h,
Flow Chart:
Mixing system---Extrusion system----Drying system----Flavoring system--Packing system
|
Parameters of dog food making machine
|
model |
GAS-55 |
GAS-65 |
GAS-75 |
GAS-85 |
|
voltage |
380V |
380V |
380V |
380V |
|
power |
7.5kw |
15KW |
18.5KW |
22KW |
|
Screw size |
Ø55 mm |
Ø65 mm |
Ø75 mm |
Ø85 mm |
|
W orking capacity |
70-80KG/H |
120-150KG/H |
200-250KG/H |
250-300KG/H |
1. Pet food raw material mixer.
2. Screw Conveyor
3. Animal feed extruder machine
4. Belt Conveyor(Air Conveyor)
5. Roasting Oven(Fryer Machine)
6. Flavoring Machine

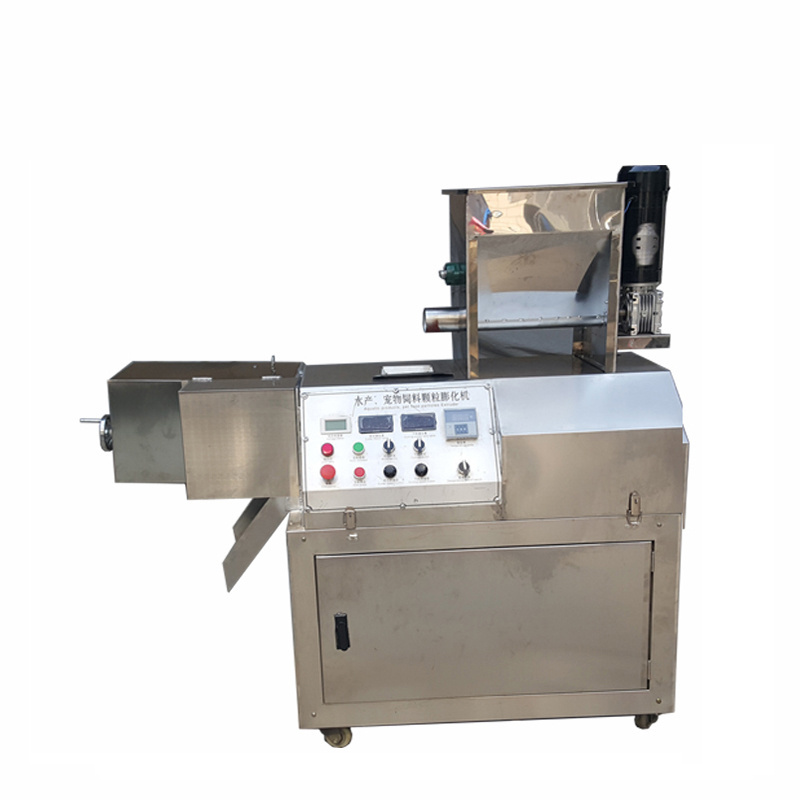

Photos of dog food making machine
|
