Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZOMAGTC
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
1710*850*1450mm
-
Weight:
-
340 kg
-
Product name:
-
Hard Cover Book Shell Maker Machine Hard Cover Book Case Maker
-
Max Size:
-
A3+ landscape size
-
Operation Desk Size:
-
980*466mm
-
Gluing width:
-
500mm
-
Rolling Width:
-
500mm
-
Thickness of the cardboard:
-
1.5~4mm
-
Thickness of the cover paper:
-
80~400g/㎡
-
Power Supply:
-
220V/110V
-
Machine Weight:
-
340KG
-
Packing:
-
Wooden Case
Quick Details
-
Type:
-
Hardcover making machine
-
Production Capacity:
-
3-7 pcs/min
-
Max. workable width:
-
980mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZOMAGTC
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
1710*850*1450mm
-
Weight:
-
340 kg
-
Product name:
-
Hard Cover Book Shell Maker Machine Hard Cover Book Case Maker
-
Max Size:
-
A3+ landscape size
-
Operation Desk Size:
-
980*466mm
-
Gluing width:
-
500mm
-
Rolling Width:
-
500mm
-
Thickness of the cardboard:
-
1.5~4mm
-
Thickness of the cover paper:
-
80~400g/㎡
-
Power Supply:
-
220V/110V
-
Machine Weight:
-
340KG
-
Packing:
-
Wooden Case
Products Description

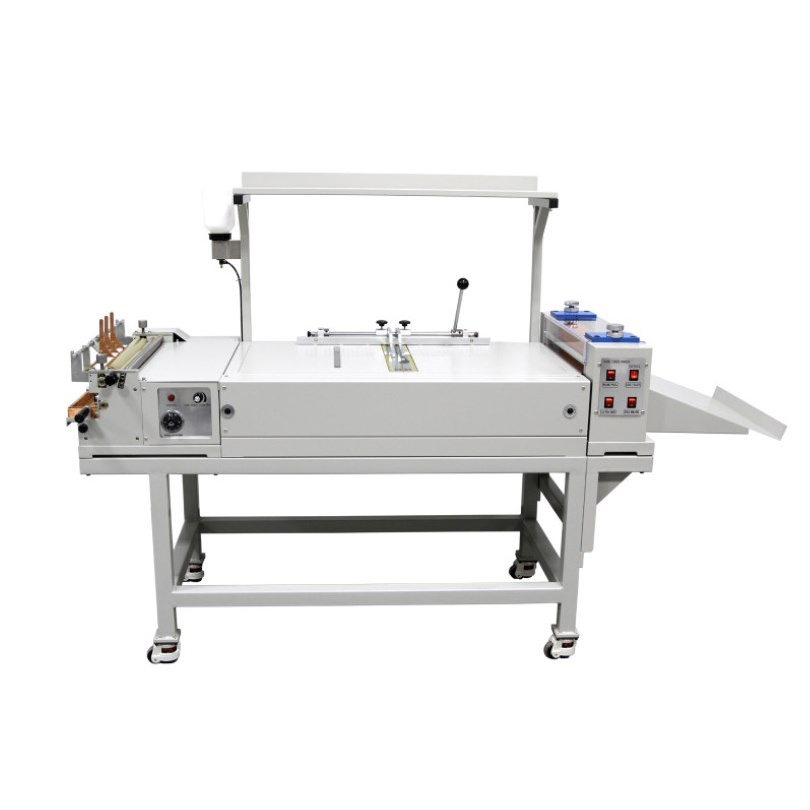

SK950L Hard Cover Book Shell Maker Machine Hard Cover Book Case Maker
|
Max. size
|
A3+landscape size
|
|
Operation Desk Size
|
980×466mm
|
|
Gluing width
|
500mm
|
|
Rolling width
|
500mm
|
|
Thickness of the cardboard
|
1.5~4mm
|
|
Thickness of the cover paper
|
80~400g/m2
|
|
Power Supply
|
220V/110V
|
|
Machine Weight
|
340 kg
|
|
Machine dimensions
|
1710×850×1450mm
|
● Hot melt gluing ● Electric edge folder ● Rolling press
It is designed according to the case making process and operating habits, it is suitable for mass production case making of hard cover books, albums, menu books.
500mm gluing and pressing width, Max. size of hard cover up to A3 landscape size.
Copper alloy made Glue application roller and Glue tray. Independent homothermal impermeable heater unit.
Automatic water replenishing, stepless glue application speed.
Microthermal animal glue drying quickly, no deformation and lower cost.
Animal glue and water-based white latex are both available.
Soft ligth table with center position.
Large air quantity suction assistance position.
Flexible and fast to change the different width of spine guides.
Antidromic electric edge folding operate.
Adjustable rolling press pressure.
Soft rubber roller and steel roller makes the pressure uniform and constant.
Stack the cover papers and cardboards on the Upper table.
The base of the machine is equipped with high load bearing Footmaster casters, which is convenient for moving the machine, level adjustment and rising fixed.
● Automatic adding water ● Vacuum table ● Soft light table
SK950L is a case making system which features hot-melt gluer, vacuum suction, center position, electric edge folder and rolling press multi-functions in one machine.
SK950L is a case making system which features hot-melt gluer, vacuum suction, center position, electric edge folder and rolling press multi-functions in one machine.
It is designed according to the case making process and operating habits, it is suitable for mass production case making of hard cover books, albums, menu books.
500mm gluing and pressing width, Max. size of hard cover up to A3 landscape size.
Copper alloy made Glue application roller and Glue tray. Independent homothermal impermeable heater unit.
Automatic water replenishing, stepless glue application speed.
Microthermal animal glue drying quickly, no deformation and lower cost.
Animal glue and water-based white latex are both available.
Soft ligth table with center position.
Large air quantity suction assistance position.
Flexible and fast to change the different width of spine guides.
Antidromic electric edge folding operate.
Adjustable rolling press pressure.
Soft rubber roller and steel roller makes the pressure uniform and constant.
Stack the cover papers and cardboards on the Upper table.
The base of the machine is equipped with high load bearing Footmaster casters, which is convenient for moving the machine, level adjustment and rising fixed.
