Quick Details
-
Voltage:
-
220V
-
Weight:
-
700 KG
-
Dimension(L*W*H):
-
1650X1500X1000MM
-
Product name:
-
PSA Nitrogen Generator
-
Application:
-
Heating\Carbide\Metal Deoxidization\The Aerospace Industry
-
Technology:
-
PSA System
-
Function:
-
Nitrogen Making
-
Capacity:
-
1~200Nm3/h
-
Color:
-
Customized Color
-
Advantage:
-
Easy Operation
-
Type:
-
Gas nitrogen and liquid nitrogen
-
MOQ:
-
1 Set
-
Oxygen producing method:
-
PSA Pressure Swing Adsorption
Quick Details
-
Place of Origin:
-
henan
-
Brand Name:
-
YUGONG
-
Production Rate:
-
99%
-
Voltage:
-
220V
-
Weight:
-
700 KG
-
Dimension(L*W*H):
-
1650X1500X1000MM
-
Product name:
-
PSA Nitrogen Generator
-
Application:
-
Heating\Carbide\Metal Deoxidization\The Aerospace Industry
-
Technology:
-
PSA System
-
Function:
-
Nitrogen Making
-
Capacity:
-
1~200Nm3/h
-
Color:
-
Customized Color
-
Advantage:
-
Easy Operation
-
Type:
-
Gas nitrogen and liquid nitrogen
-
MOQ:
-
1 Set
-
Oxygen producing method:
-
PSA Pressure Swing Adsorption
Product Description
Air separation nitrogen generator equipment is a device that uses the principle of pressure swing adsorption and uses carbon molecular sieve to extract nitrogen from the air.
The adsorption tank of the pressure swing adsorption nitrogen generator, when the pressure is high, the carbon molecular sieve absorbs oxygen in the air, and the nitrogen that is not easily adsorbed becomes the product; when the pressure is low, the oxygen is desorbed from the carbon molecular sieve. Using the pressure change, the required nitrogen can be effectively separated from the air.
The adsorption tank of the pressure swing adsorption nitrogen generator, when the pressure is high, the carbon molecular sieve absorbs oxygen in the air, and the nitrogen that is not easily adsorbed becomes the product; when the pressure is low, the oxygen is desorbed from the carbon molecular sieve. Using the pressure change, the required nitrogen can be effectively separated from the air.

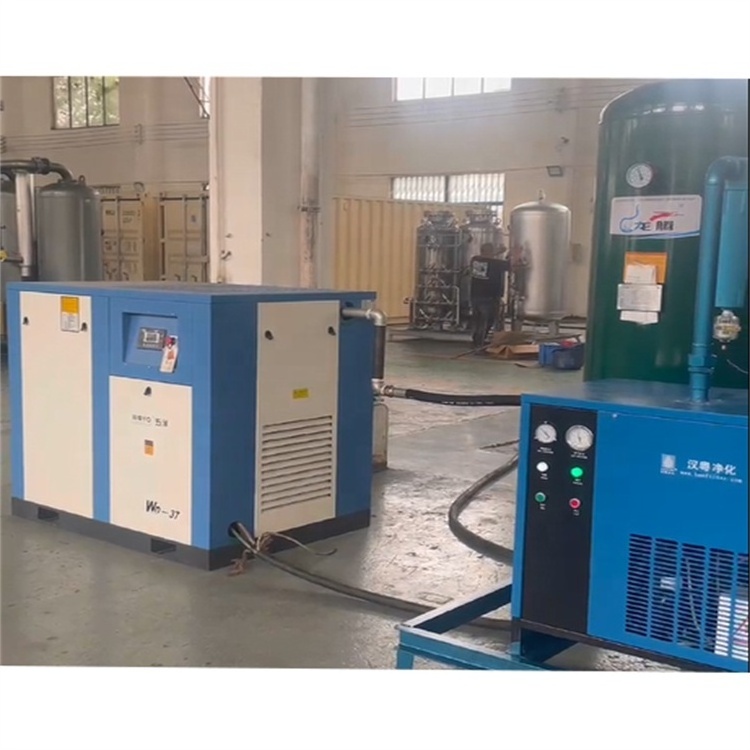

The whole set of equipment consists of three parts
1-Screw air compressor
2-Air purification unit
3-XM1-99 nitrogen generator
Specification
|
Nitrogen production
|
1-3000Nm3/h
|
|
Nitrogen purity
|
95%-99.999%
|
|
Inlet pressure
|
≥0.6Mpa
|
|
Nitrogen outlet pressure
|
0.1-0.65Mpa
|
|
Dust particle size
|
≤0.01um Carbon molecular sieve has a service life of more than 5-8 years.
|
|
Weight
|
2200kg
|
|
Size
|
2400*1400*2600mm
|
Product Feature
Features:
*The equipment adopts a newly designed filling technology.
* Unique shunt design, low energy consumption and high efficiency.
*Computer operation, simple process and easy maintenance.
*Computer operation, simple process and easy maintenance.
*Compact structure and small footprint
