Quick Details
-
Production Capacity:
-
100%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
IGOLDENCNC granite cutter
-
Voltage:
-
AC380V/50Hz for granite cutter
-
Dimension(L*W*H):
-
3000x2000mm stone carving power tools
-
Weight:
-
2000 kg
-
Keywords:
-
bridge cutting machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Grey,Black,White,Red,etc for stone cutting machines
-
Control System:
-
DSP/Ncstudio System for marble engraving machine
-
Spindle speed:
-
24000r/min for stone cnc router
-
Transmission:
-
X/Y rack and pinion, Z ball screw
-
Cooling System:
-
Double water cooling for spindle and cutters
-
Driving Motor:
-
servo for granite block cutting machine
-
Function:
-
Stone Engraving Carving Cutting
Quick Details
-
Type:
-
Bridge Saw
-
Power:
-
7.5kw for 3d stone carving machine
-
Cutting thickness (max):
-
120mm
-
Production Capacity:
-
100%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
IGOLDENCNC granite cutter
-
Voltage:
-
AC380V/50Hz for granite cutter
-
Dimension(L*W*H):
-
3000x2000mm stone carving power tools
-
Weight:
-
2000 kg
-
Keywords:
-
bridge cutting machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Grey,Black,White,Red,etc for stone cutting machines
-
Control System:
-
DSP/Ncstudio System for marble engraving machine
-
Spindle speed:
-
24000r/min for stone cnc router
-
Transmission:
-
X/Y rack and pinion, Z ball screw
-
Cooling System:
-
Double water cooling for spindle and cutters
-
Driving Motor:
-
servo for granite block cutting machine
-
Function:
-
Stone Engraving Carving Cutting

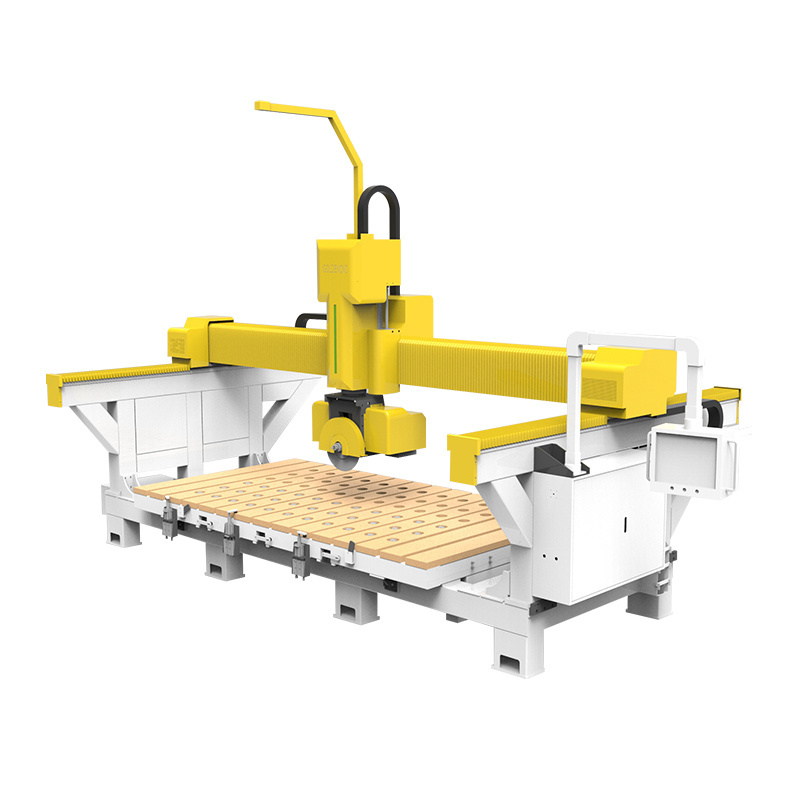

Automatic CNC 5 axis bridge granite marble stone cutting machine price
Technical parameters:
|
Programming method 1 |
Manual programming |
|
Programming method 2 |
Image input |
|
Control method |
CNC |
|
Power |
4000W |
|
Working voltage |
380V/50HZ |
|
R.P.M |
2800r/min |
|
Blade size |
350mm |
|
X-axis working stroke |
3000mm |
|
Y-axis working stroke |
2000mm |
|
Z-axis working stroke |
260mm |
|
A-axis working stroke |
360°free rotation |
|
X/Y-axis cutting speed |
1-2000mm/min |
|
Z-axis cutting speed |
1-1000mm/min |
|
A cutting speed |
0-7r/min |
|
Cutting thickness |
100mm |
|
Processing precision |
0.2mm |
|
Working table size |
3000*2000mm |
|
Overall size |
4500*2750*2100mm |
|
Weight: |
2000KG |
These machines are all popular among different customers. Why not to take one minutes for clicking to get more details. All the specification of machine can be customized according to your own requirements, and there will be one machine suit for you.
| ATC CNC Wood Machine |
Pneumatic Multi Spindles |
CNC Plasma Cutting |
1.Engineers available to service machinery overseas. Machine has been adjusted before delivery , operation disk was included.
2.Two year quality guaranty, the machine with main parts(excluding the consumables)shall be changed free of charge when problems happened during the warranty period.
3.Lifetime maintenance free of charge.Free training course at our plant. 24 hours on line service each day, free technical support.
4.We will provide the consumable parts at an agency price when you need replacement.
shandong igolden cnc technology co. ,ltd established in 2012, one the top CNC machine manufacturer from China, the professional solution supplier of CNC application with key technology and independent intellectual property rights. The company integrates research and development with production, sales and after-sales.
Product lines cover 7 series and more than 100 models, include CNC Wood Router, Eps Foam CNC Machine, Stone CNC Machine, Furniture and Cabinet Door Making Machine, Fiber Laser Cutter, Laser Engraver, Laser Marker, CNC Plasma Cutter, and CNC kits, tools and accessories. We always provide customers with high-quality products, competitive price and excellent service.
And welcome to visit https://igoldencncrouter.en.alibaba.com/ for more choices and info.
