Quick Details
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1750x1380x1350mm
-
Warranty:
-
12 Monthes
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Knife Discs Diameter:
-
280mm
-
Knife Discs Rotating Speed:
-
960r/min
-
Main Motor Power:
-
22KW
-
Wind Suction Machine Power:
-
3KW
-
Overall Diameter:
-
1750x1380x1350mm
-
Power:
-
22KW
-
Certification:
-
ISO9001:2008/CE/SGS
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Shun Cheong
-
Model Number:
-
XFJ-280
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1750x1380x1350mm
-
Warranty:
-
12 Monthes
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Knife Discs Diameter:
-
280mm
-
Knife Discs Rotating Speed:
-
960r/min
-
Main Motor Power:
-
22KW
-
Wind Suction Machine Power:
-
3KW
-
Overall Diameter:
-
1750x1380x1350mm
-
Power:
-
22KW
-
Certification:
-
ISO9001:2008/CE/SGS
Semi-automatic Scrap tire recycling line
Semi-automatic scrap tire recycling Application
Waste tire recycling line is used to make the tire into rubber powder.
Waste tire recycling machine, waste tire recycling equipment prices for sale, waste tyre recycling plant cost is used to crush the waste tire into rubber powder.
Waste tire recycling / Rubber powder Production Proces
Waste Tires → → Ring cutter → → Press loop Machine → → Strip cutter → →Block cutter → → Rubber Cracker Mill → → Auxiliary Machine( Vibrating Screen, Belt Conveyor, Magnetic Separator) →→ Fiber Separator →→ Fine Rubber Power Pulverizer →→ rubber powder

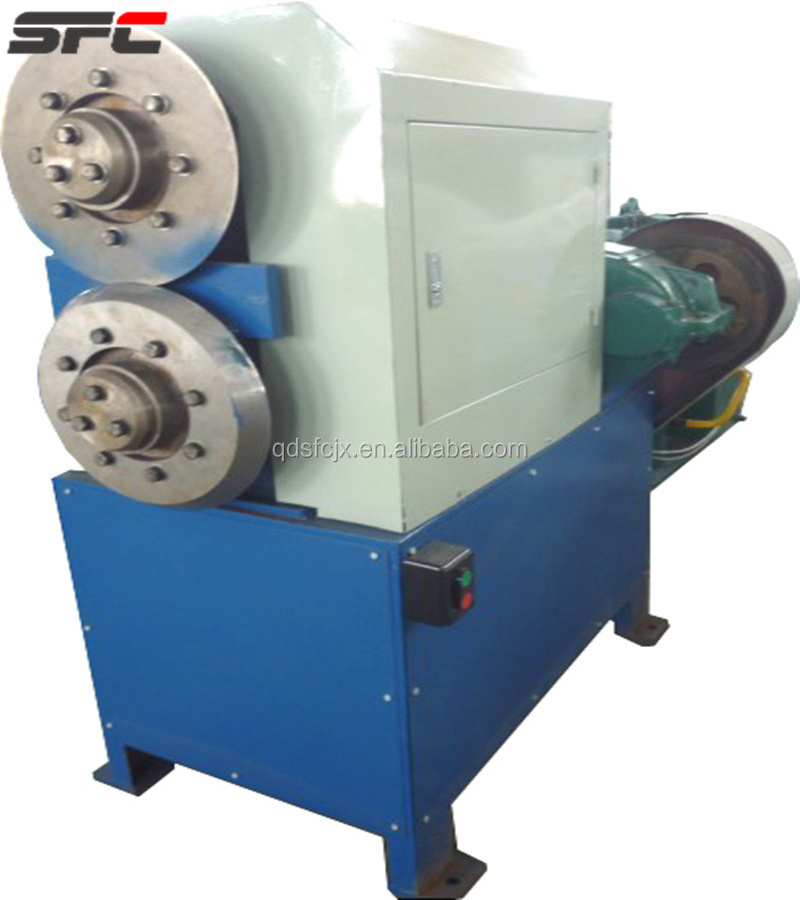

1.Ring Cutter
2.Press Loop Machine
3.Strip Cutter
4.Block cutter
5.Rubber Cracker Mill
|
Model |
XKP- 560 |
|
Front roll diameter |
560 mm(smooth one) |
|
Rear roll diameter |
5 10mm(groove one) |
|
Roll working length |
800mm |
|
Roll speed Ratio |
1:1.3 8 |
|
Producing capacity |
500-800kg /h |
|
Mail motor |
90 kw |
|
Weight |
20 T |
6. Auxiliary Machine
7. Fiber Separator
Company Infomation
Qingdao shun cheong rubber machinery manufacturing co.,ltd is a chinese manufacturer with establishment in 2007, and have 10 years experience in making various of rubber machines area, also pass the ISO 9001:2008 , SGS, CE certificates too.
our factory major in rubber kneader/rubber mixing mill ; various of plate vulcanizing press ; 2 roll/3 roll/4 roll rubber calender; rubber batch off cooler; waste tire recycling line;reclaimed rubber production line;conveyor belt production line;rubber seals extruding &vulcanizing line etc...
Market: our machineries have exported to America, Mexico, ndia, Vietnam, South Africa, Singapore, Malaysia, Indonisia, Australia, Sri Lanka and many other countries and regions
Professional engineers and teams, then basing on customer requirements, we accept OEM*ODM machines, also oversea engineer service is available.
