Quick Details
-
Brand Name:
-
PHOTON
-
Use:
-
FTTH
-
Warranty Time:
-
1 years
-
input optical range:
-
0~-18dBm
-
Output Level:
-
76±2dBuV (@-15dBm power input)
-
MER:
-
≥35dB
-
Opticasl Connector Type:
-
SC/APC in, SC/PC out
-
Power Consumption:
-
<1.0W
-
RF Output:
-
1 or 2 output optional
-
RF Output Connector:
-
F Connector
-
dimension:
-
90*85*25mm
-
Gross weight:
-
0.15Kg
-
Power:
-
< 0.8W
Quick Details
-
Type:
-
Optical Fibers
-
Model Number:
-
PTR3282C
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PHOTON
-
Use:
-
FTTH
-
Warranty Time:
-
1 years
-
input optical range:
-
0~-18dBm
-
Output Level:
-
76±2dBuV (@-15dBm power input)
-
MER:
-
≥35dB
-
Opticasl Connector Type:
-
SC/APC in, SC/PC out
-
Power Consumption:
-
<1.0W
-
RF Output:
-
1 or 2 output optional
-
RF Output Connector:
-
F Connector
-
dimension:
-
90*85*25mm
-
Gross weight:
-
0.15Kg
-
Power:
-
< 0.8W

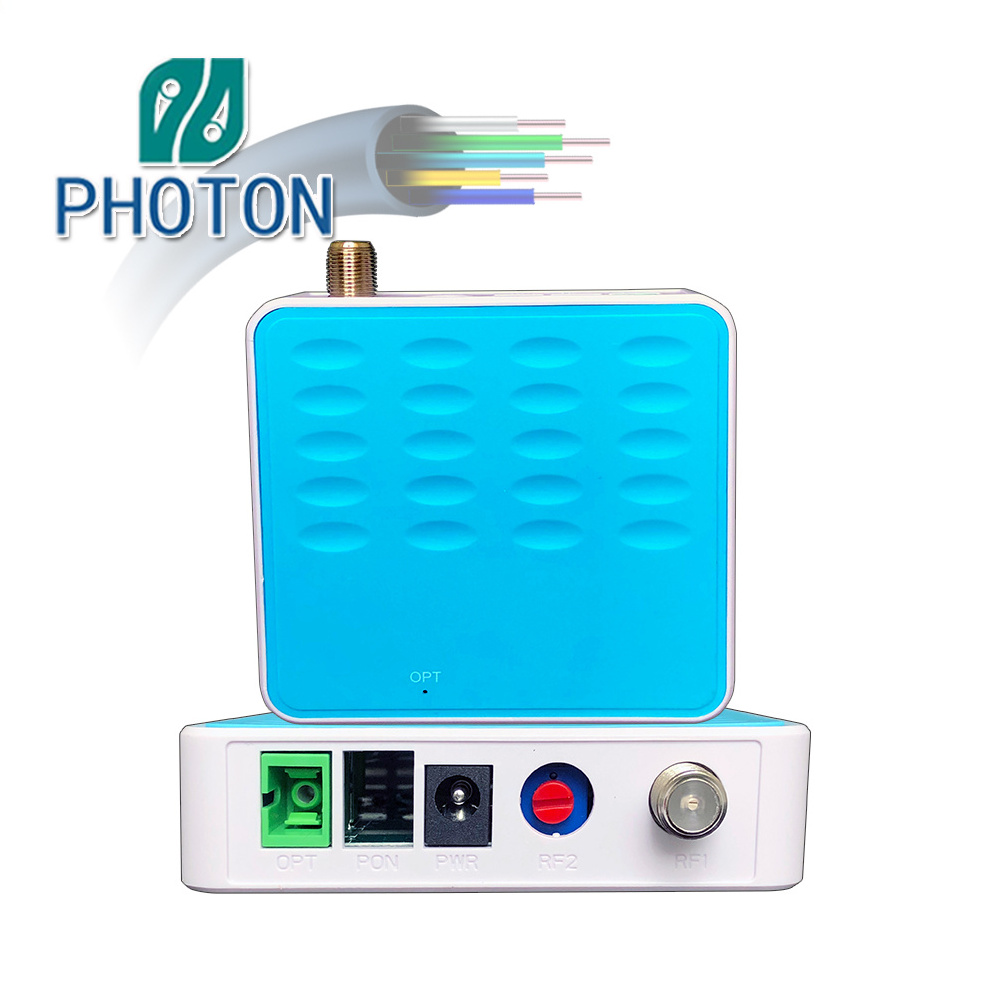

Indoor CATV Optical Receiver Mini optical Node
1. Description
Indoor Mini Node FTTH CATV WDM Optical Receiver is a mini in-door optical receiver with WDM that especially design for FTTP/FTTH application. High performance, low receiver optical power and lower cost is FTTH solution best selection for MSO. WDM integrated for 1550nm video signal and 1490nm /1310nm data signal in one fiber. Reflection 1490nm/1310nm for connecting ONT device. They are very suitable for PON and TV system
2. Features (Indoor CATV Optical Receiver Mini optical Node )
1 GHz operating bandwidth
WDM build with 1550nm/1490nm/1310mn
1 or 2 RF output optional
AGC with Level 76 ±2 dBuV (@0 to -15dBm input)
Wide optical power input range -18~+2dBm
Low power consumption <1.0W;
3. Specification
5. AGC Function
Order information
4. Shipping packaging
|
Description |
Quantity |
Weight |
Carton Size |
|
Shipping packaging |
100pcs/ctn |
19kg/ctn 19.4kg/ctn(2RF) |
475*440*450mm |
1. Technical support: Professional technical team, all of our engineers can speak English, they will help you solve problems directly and Efficient.
2. OEM&ODM: We can help you to design and put your good idea into products.
3. Delivery time: We always ready to ship.
4. Warranty:1-years warranty.
5.After-sale:online service support for 365 days a year and 7x24 hours a week.
