Quick Details
-
Certification:
-
CE
-
Magnet Type:
-
Nd-Fe-B
-
Phase type:
-
3Phase
-
Generator material:
-
Aluminium body+copper wire+Nd-Fe-B
-
Rated rotor speed:
-
20-900RRM
-
Generator type:
-
AC
-
Protection grade:
-
IP 54
-
Bearing brand:
-
SKF
-
Model:
-
low rpm power generator
-
TYPE:
-
permanent magnet generators for sale
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GreeF
-
Model Number:
-
PMG Series
-
Certification:
-
CE
-
Magnet Type:
-
Nd-Fe-B
-
Phase type:
-
3Phase
-
Generator material:
-
Aluminium body+copper wire+Nd-Fe-B
-
Rated rotor speed:
-
20-900RRM
-
Generator type:
-
AC
-
Protection grade:
-
IP 54
-
Bearing brand:
-
SKF
-
Model:
-
low rpm power generator
-
TYPE:
-
permanent magnet generators for sale

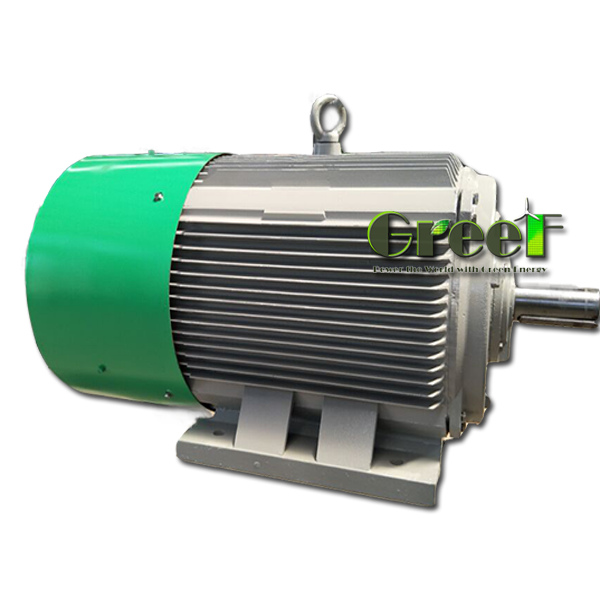

Permanent Magnet Generators are used in a large number of applications such as Wind Turbines, Hydro Turbines, motors and others.
|
Rated power
|
0.5--5000
|
kW
|
|
|
Rated rotate speed
|
20--3000
|
rpm
|
|
|
Rated voltage
|
48--1140
|
Vac
|
|
|
Frequency
|
60/50
|
Hz
|
|
|
Number of Poles
|
24
|
|
|
|
Generator type
|
3phase AC Synchronous generator
|
|
|
|
Magnet type
|
NdFeB
|
|
|
|
Winding Method
|
Y
|
|
|
|
Magnet temperature level
|
Max.120℃
|
|
|
|
Winding temperature level
|
Max.180℃
|
|
|
|
Effienciency
|
>95%
|
|
|
|
Insulate Grade
|
H
|
|
|
|
Insulating resistance
|
100Mohm Min(500Vdc)
|
|
|
|
Classification of degrees
|
IP54
|
|
|
|
Generatror shell material
|
Cast Iron
|
|
|
|
Winding material
|
100% Copper
|
|
|
|
Shaft material
|
Steel
|
|
|
|
Iron Core
|
Cold rolled silicon steel sheet
|
|
|
|
Bearing brand
|
SKF
|
|
|
|
Cooling Method
|
Fan Cooling
|
|
|
|
Weight (N.W /G.W )
|
132kg /152kg
|
|
|
|
Packing Size
|
870*470*570mm
|
|
|
|
Installation
|
Horizontal
|
|
|
|
RATED POWER
|
RATED SPEED
|
RATED VOLTAGE
|
FREQUENCY
|
|
0.5KW
|
20rpm~400rpm
|
12V~220Vac
|
10Hz~60Hz
|
|
1KW
|
20rpm~600rpm
|
12V~220Vac
|
10Hz~60Hz
|
|
2KW
|
20rpm~1000rpm
|
12V~400Vac
|
10Hz~60Hz
|
|
3KW
|
20rpm~1500rpm
|
48V~690Vac
|
10Hz~60Hz
|
|
5KW
|
20rpm~1500rpm
|
48V~690Vac
|
10Hz~60Hz
|
|
10KW
|
20rpm~1500rpm
|
120V~690Vac
|
10Hz~60Hz
|
|
15KW
|
20rpm~3000rpm
|
120V~690Vac
|
10Hz~60Hz
|
|
20KW
|
20rpm~3000rpm
|
120V~690Vac
|
10Hz~60Hz
|
|
25KW
|
20rpm~3000rpm
|
120V~1140Vac
|
10Hz~60Hz
|
|
30KW
|
20rpm~3000rpm
|
120V~1140Vac
|
10Hz~60Hz
|
|
50KW
|
20rpm~3000rpm
|
220V~1140Vac
|
10Hz~60Hz
|
|
80KW
|
20rpm~3000rpm
|
220V~1140Vac
|
10Hz~60Hz
|
|
100KW
|
20rpm~3000rpm
|
220V~1140Vac
|
10Hz~60Hz
|
|
150KW
|
20rpm~3000rpm
|
380V~1140Vac
|
10Hz~60Hz
|
|
200KW
|
20rpm~3000rpm
|
380V~1140Vac
|
10Hz~60Hz
|
|
250KW
|
20rpm~3000rpm
|
380V~1140Vac
|
10Hz~60Hz
|
|
300KW
|
20rpm~3000rpm
|
380V~1140Vac
|
10Hz~60Hz
|
|
500KW
|
20rpm~3000rpm
|
380V~1140Vac
|
10Hz~60Hz
|
|
700KW
|
20rpm~3000rpm
|
690V~1140Vac
|
10Hz~60Hz
|
|
800KW
|
20rpm~3000rpm
|
690V~1140Vac
|
10Hz~60Hz
|
|
1MW
|
200rpm~3000rpm
|
690V~1140Vac
|
10Hz~60Hz
|
|
2MW
|
200rpm~3000rpm
|
690V~1140Vac
|
10Hz~60Hz
|
|
3MW
|
200rpm~3000rpm
|
690V~1140Vac
|
10Hz~60Hz
|
|
20KW
|
20rpm~3000rpm
|
120V~690Vac
|
10Hz~60Hz
|
|
4MW
|
600rpm~3000rpm
|
690V~1140Vac
|
10Hz~60Hz
|
|
5MW
|
600rpm~3000rpm
|
690V~1140Vac
|
10Hz~60Hz
|
GREEF Company provide customized generator according to each customer 's requirements of Voltage, Speed, Power, Frequency etc.
1. Greef generator use inner foam protection, outer Plywooden case.
2. Package size and weight, please contact our sales.
3. Shipping by sea with FCL / LCL to your nearest port
Or Shipping by air to your nearest a irport
Or Shipping by DHL/FedEx/UPS/TNT to your door
If you have any requests in package and shipping , please contact us directly.
Permanent Magnet Generators are 3 years warranty for free, all lifelong technical support and part cost supply.
(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) The warranty period: company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
