Quick Details
-
Roll Ratio(Front/Back):
-
1:1.2
-
Cooling Mode:
-
water
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OULI MACHINE
-
Voltage:
-
Required, CUSTMOIZED
-
Dimension(L*W*H):
-
3500*3200*2800mm
-
Year:
-
2024
-
Power (kW):
-
110
-
Weight (KG):
-
21000 KG
-
Applicable Industries:
-
rubber machine
-
Gear Reducer:
-
Hard-tooth Surface Gear Reducer
-
Name:
-
Dough Mixer Machine
-
Application:
-
rubber compound mixing and sheeting
-
roll:
-
chilled cast iron hardness HS 72
-
Lubrication:
-
Automatic grease
-
Weight:
-
1t-22t
-
Power(W):
-
90-110KW
-
After Warranty Service 1:
-
Video technical support
-
After Warranty Service 2:
-
Spare parts
Quick Details
-
Diameter of Roll(mm):
-
560 mm
-
Rotation Speed of Front Roll(rpm):
-
20 - 21 rpm
-
Length of Roll(mm):
-
1530 mm
-
Roll Ratio(Front/Back):
-
1:1.2
-
Cooling Mode:
-
water
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OULI MACHINE
-
Voltage:
-
Required, CUSTMOIZED
-
Dimension(L*W*H):
-
3500*3200*2800mm
-
Year:
-
2024
-
Power (kW):
-
110
-
Weight (KG):
-
21000 KG
-
Applicable Industries:
-
rubber machine
-
Gear Reducer:
-
Hard-tooth Surface Gear Reducer
-
Name:
-
Dough Mixer Machine
-
Application:
-
rubber compound mixing and sheeting
-
roll:
-
chilled cast iron hardness HS 72
-
Lubrication:
-
Automatic grease
-
Weight:
-
1t-22t
-
Power(W):
-
90-110KW
-
After Warranty Service 1:
-
Video technical support
-
After Warranty Service 2:
-
Spare parts
1 Products Description

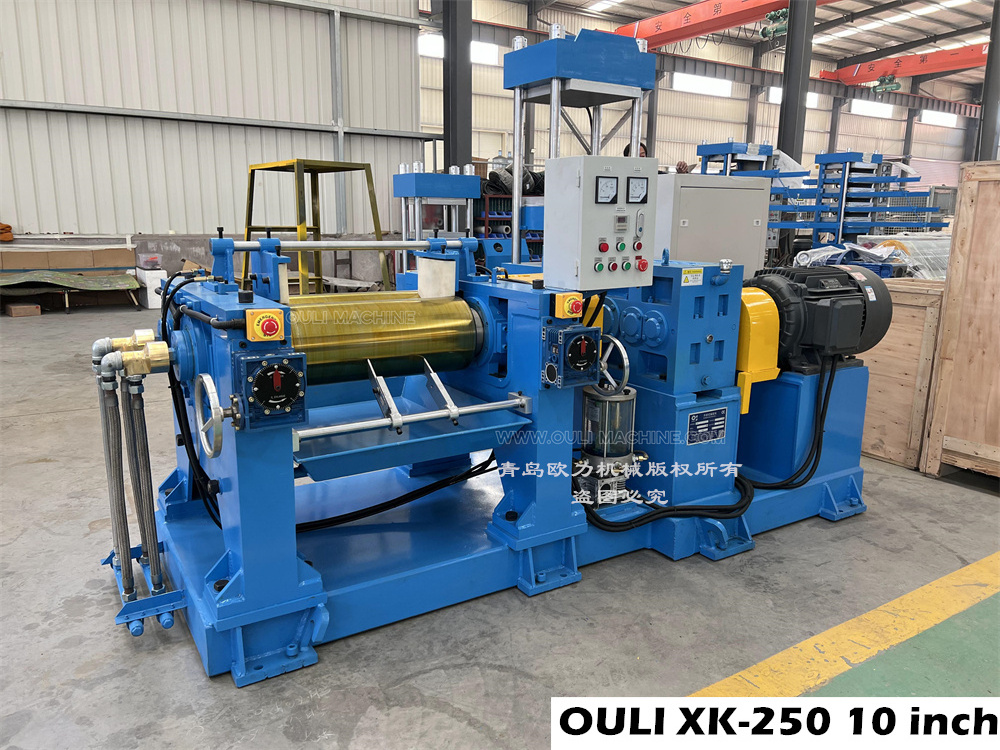

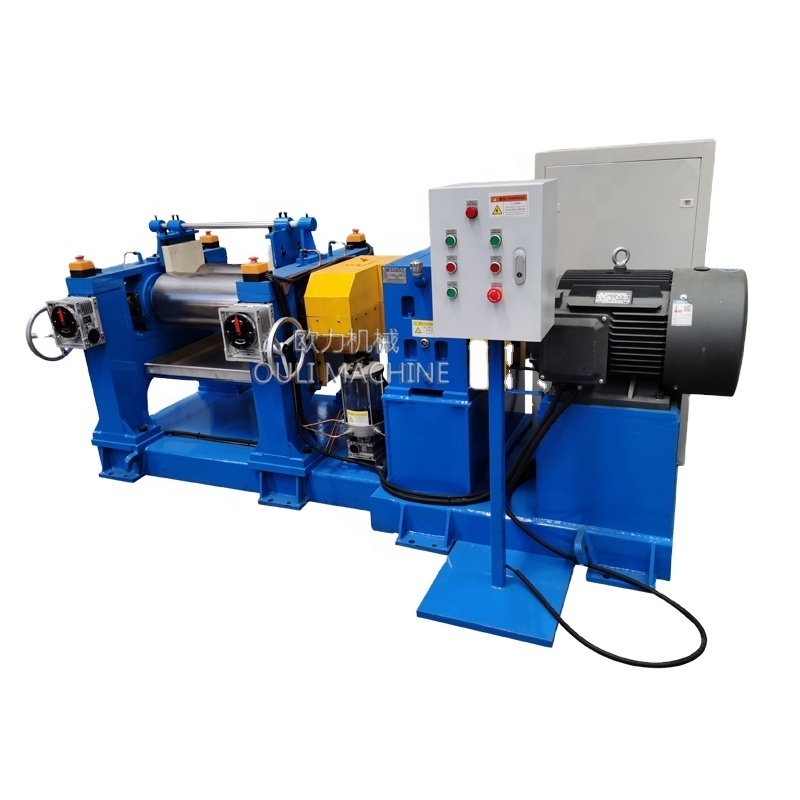

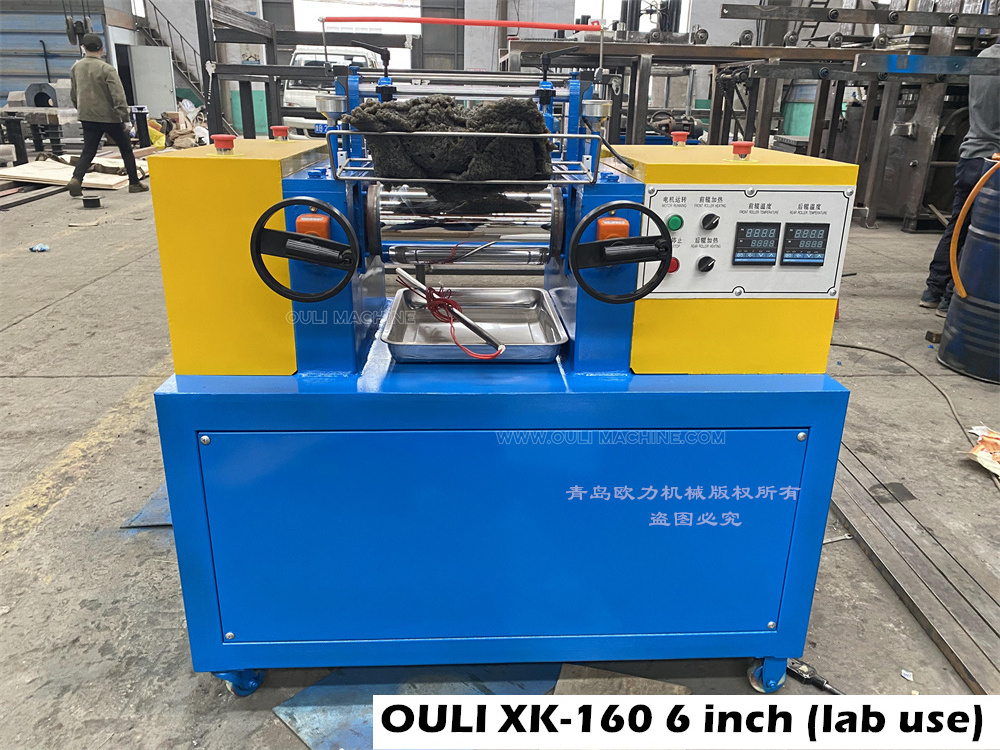

rubber mixing mill is used for mixing and kneading raw rubber, synthetic rubber, thermoplastics or E.V.A.with chemicals into final materials. The final materials can be fed to calender, hot presses or other processing machine for making rubber or plastic products.
|
Parameter/model
|
|
XK-160
|
XK-250
|
XK-300
|
XK-360
|
XK-400
|
|
|
Roll diameter(mm)
|
|
160
|
250
|
300
|
360
|
400
|
|
|
Roll working length (mm)
|
|
320
|
620
|
750
|
900
|
1000
|
|
|
Capacity (kg/batch)
|
|
4
|
15
|
20
|
30
|
40
|
|
|
Front roll speed (m/min)
|
|
10
|
16.96
|
15.73
|
16.22
|
18.78
|
|
|
Roll speed ratio
|
|
1:1.21
|
1:1.08
|
1:1.17
|
1:1.25
|
1:1.27
|
|
|
Motor power (KW)
|
|
5.5
|
18.5
|
22
|
30
|
37
|
|
|
Size (mm) |
Length
|
1104
|
3230
|
4000
|
4140
|
4578
|
|
|
|
Width
|
678
|
1166
|
1600
|
1574
|
1755
|
|
|
|
Height
|
1258
|
1590
|
1800
|
1800
|
1805
|
|
|
Weight (KG)
|
|
1000
|
3150
|
5000
|
6892
|
8000
|
|
|
Parameter/model
|
XK-450
|
XK-560
|
XK-610
|
XK-660
|
XK-710
|
|
Roll diameter(mm)
|
450
|
560/510
|
610
|
660
|
710
|
|
Roll working length (mm)
|
1200
|
1530
|
2000
|
2130
|
2200
|
|
Capacity (kg/batch)
|
55
|
90
|
120-150
|
165
|
150-200
|
|
Front roll speed (m/min)
|
21,1
|
25.8
|
28.4
|
29.8
|
31,9
|
|
Roll speed ratio
|
1:1.27
|
1:1.17
|
1:1.18
|
1:1.09
|
1:1.15
|
|
Motor power (KW)
|
55
|
90/110
|
160
|
250
|
285
|
|
Length(mm)
|
5035
|
7100
|
7240
|
7300
|
8246
|
|
Width(mm)
|
1808
|
2438
|
3872
|
3900
|
3556
|
|
Height(mm)
|
1835
|
1600
|
1840
|
1840
|
2270
|
|
Weight (KG)
|
12000
|
20000
|
44000
|
47000
|
51000
|
