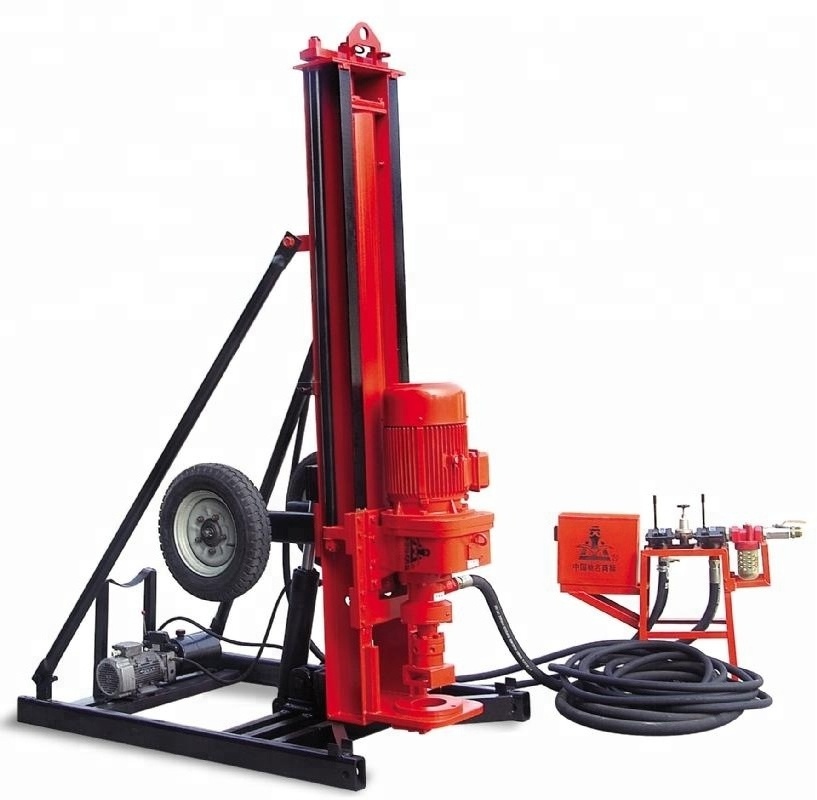

Mini Down the hole horizontal directional drilling machine/DTH KQD165 portable drilling rig

Mini Down the hole horizontal directional drilling machine/DTH KQD165 portable drilling rig

KQD Series are mainly used for water well drilling rig 60m and blast hole drill, t his series electric drilling rig is to transfer the motor power and compressed air power into mechanical power for rock crushing .When energized, the torque generated by the motor through gear reducer parts to drive the rotation of drill. Compressed air lubricated after the pneumatic valve is divided into two roads, one is through the air valve come into the front and back chamber of push cylinder , which produces an axial force through the cylinder piston rod and guide rod to advance or promote the rods,; another way is through the intake seat reducer and other components into the impactor inside , so as to realize impact drilling.

The Ultimate combination of performance and economy.  DTH system delivers the highest-possible drilling performance at low running cost. DTH used in varity heavy industry. It is used to drill blasting holes lije small to medium mining projects, national defense project, irrigation projects, road construction and so on. Our down-the-hole drill is ideal equipment for down-hole blasting.

Features of KQD series drilling machine :

1) High efficient and energy-saving. Use the hydraulic technique, with reasonable disposition and price, saving oil consumption. The support uses fluted disc for location, which makes the structure more novel.

2) Nimble to move, easy to operate.. Dismount ability of complete machine is good. The machine suits to work on primitive landform.

3) Proprietary technology. Split type hydraulic power pack is the product that gains national patent. The power section and operation section are separate, therefore, when the drill works, it is only need the move the operation panel to realize multi-spot work, which would lower the labor intensity and make the working life of whole machine longer.

KQD Series used horizontal drilling machine is our company design a new type of energysaving and high efficiency drilling equipment,

widely used in medium and small mines and road construction, national defense, water conservancy,

and thestone in the engineering of deep hole drilling operation, also is the indispensable drilling openpit mining equipment, especially suitable for other jumbo can't normal operation of a rugged terrain; The machine has compact structure, convenient operation, fast speed, high efficiency, the machine can open sex good, transportation is extremely convenient.

Control System

Recommended Air Compressor

Accessories

Applications

More Applications
