Little water consumption but high efficient enrichment capability, equipped with a 15 cm wide sluice box which need clean up just when batch test or after one day work. At the same time can provide you around 98% recovery rate. Recovery fineness can reach 300 mesh. With continuous processing, advanced reverse helix system, help you increase the gold recovery rate, lower ability to the operation of the operator.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
11.9*2.3*2.9m
-
Weight:
-
1.3T
-
Product name:
-
Gold Mining Machine
-
Keywords:
-
movable gold mining machine
-
Application:
-
Alluvial Gold Washing
-
Installation:
-
Technical Guidance
-
Feeding size:
-
0-30mm
-
Capacity:
-
1-20tons
-
Usage:
-
gold washing plant
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training
-
Certification:
-
ISO9001:2008
Quick Details
-
Production Capacity:
-
98%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
REALMINING
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
11.9*2.3*2.9m
-
Weight:
-
1.3T
-
Product name:
-
Gold Mining Machine
-
Keywords:
-
movable gold mining machine
-
Application:
-
Alluvial Gold Washing
-
Installation:
-
Technical Guidance
-
Feeding size:
-
0-30mm
-
Capacity:
-
1-20tons
-
Usage:
-
gold washing plant
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training
-
Certification:
-
ISO9001:2008

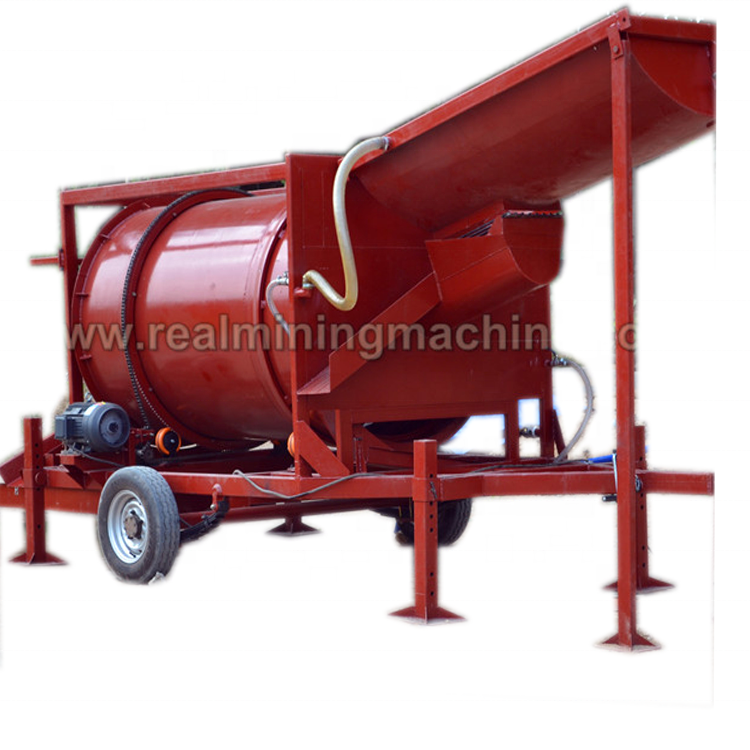

The Helix Trommel Alluvial Gold Mining Machinery
The Model 10 is advanced portable plant. It equipped with a reversible wet material hopper and screen. This machine is perfect for small scale miners or as a testing plant.
PRODUCT SPECIFICATIONS
|
Capacity
|
Length
|
Width
|
Height
|
Water Needed
|
|
10 Ton/hr
|
4.9 meter
|
2.3 meter
|
2.9 Meter
|
30m3/hr
|
PRODUCT ADVANTAGES
* Over 95% Recovery rate down to 300 mesh fine or 50 Microns.
* Advanced reverse spiral system for non-stop continuous processing, giving you the ability to calculate your gold values while you’re operating.
* Continuous concentrations during production result in almost pure gold at the end of each production cycle, eliminating the need to purchase an expensive gold room to clean up your concentrate.
* Advanced Sluice Box Design, consisting of different sizes of Expanded Metal, Hungarian Angle Iron Riffles and Water Pressured Hydraulic Riffles, designed to catch all sizes of gold from fine to coarse.
* High capacity wet hopper with vibrating grizzly.
* Advanced reverse spiral system for non-stop continuous processing, giving you the ability to calculate your gold values while you’re operating.
* Continuous concentrations during production result in almost pure gold at the end of each production cycle, eliminating the need to purchase an expensive gold room to clean up your concentrate.
* Advanced Sluice Box Design, consisting of different sizes of Expanded Metal, Hungarian Angle Iron Riffles and Water Pressured Hydraulic Riffles, designed to catch all sizes of gold from fine to coarse.
* High capacity wet hopper with vibrating grizzly.
DETAILED IMAGES
Reverse Helix Trommel
Wet Hopper With Grizzly
Side Fine Gold Recovery Sluice
Diesel Generator
Tailing Gold Recovery Sluice
Tailing Discharge Sluice
BEFORE&AFTER SELL SERVICE
Before Sell: After Sell:
1. Learn Customers' Actually Mining Condition, Recommend The Suitable Equipment According To Clients Actually Demand;
2. Support Customer Customization.
1. 24 Hours*365 Days Online Support;
2. Can Send Engineer And Workers To Clients Mining Site Assembly And Debugging.
