Quick Details
-
Working pressure:
-
2000psi~20000psi
-
Working temperature:
-
-46℃~121℃
-
Material class:
-
BB,CC,DD,EE,FF
-
PSL:
-
PSL2,PSL3,PSL3G,PSL4
-
Performance rate:
-
PR1,PR2
-
Temperature Class:
-
K,L, P, R, S, T, U, V
-
Connection type:
-
flange/clamp/thread
-
Medium:
-
Oil, water, gas, mud
-
Application:
-
Onshore,Offshore,conventional and thermal production
-
Certification:
-
API
Quick Details
-
Weight (KG):
-
5000
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SJ
-
Working pressure:
-
2000psi~20000psi
-
Working temperature:
-
-46℃~121℃
-
Material class:
-
BB,CC,DD,EE,FF
-
PSL:
-
PSL2,PSL3,PSL3G,PSL4
-
Performance rate:
-
PR1,PR2
-
Temperature Class:
-
K,L, P, R, S, T, U, V
-
Connection type:
-
flange/clamp/thread
-
Medium:
-
Oil, water, gas, mud
-
Application:
-
Onshore,Offshore,conventional and thermal production
-
Certification:
-
API

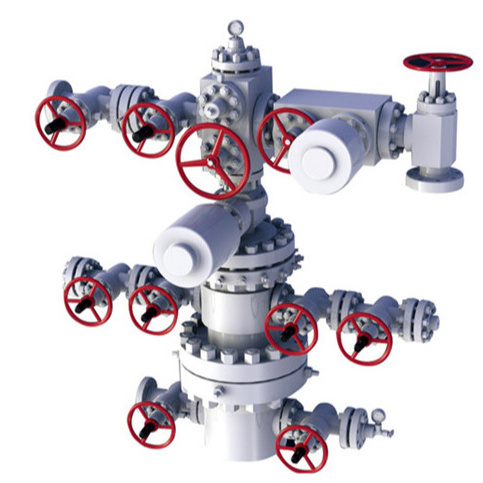

Thermal Recovery Wellhead Assembly and Christmas Tree for heavy oil production
Shengji has more than 40 years history in designing and manufacturing wellhead and christmas tree. The technology is in a leading position in China. Shengji has gained PR2 certificates for gate valve, choke valve and tubing head. Annual production is 5000 sets. Products have been exported to America, Saudi Arabia, India, Russia, Oman, Turkmenistan, Kazakhstan, Venezuela, etc.
As one of the biggest conventional oil and gas wellheads and christmas trees manufacturer, Our advanced testing laboratory guarantees our products’ quality. The conventional wellhead and X-mas tree equipment has API 6A standard connection, which is easy to install, maintain and is interchangeable.
Shengji designs, manufactures and supplies conventional wellheads and X-mas trees of all sizes, working pressures and temperatures. The sealing performance is reliable and the service life span is long.
There are only a few gas recovery wellhead equipment manufacturers in China, and Shengji is one of them. The gas recovery wellhead and X-mas tree is used for the production of gas wells and controlling the flow rate and pressure of gas wells. There are more stringent requirements for a gas recovery wellhead and X-mas tree, which demands excellent sealing performance in comparison to an oil recovery wellhead and X-mas tree. The valve gate and seat are treated by a proprietary method to make them especially durable and accurate. The Shengji gas recovery wellhead and X-mas tree can also be used in fracturing and acidization.
Thermal Recovery Wellhead Assembly and Christmas Tree for heavy oil production
1.Special structures composite stem seal.
2.Excellent sealing performance and small rotating torque.
3.Metal spray valve gate and seat.
4.The sealing surface is very hard and fits accurately.
5.Superior gas tight performance and pressure/corrosion proof performance.
--------------
1. 40 years history in designing and manufacturing wellhead and Xmas tree.
2. G ained PR2 certificates for gate valve, choke valve and tubing head.
3. API 6A standard flange/clamp connection.
4. Overseas service.
Thermal Recovery Wellhead Assembly and Christmas Tree for heavy oil production
|
Working pressure |
2000psi~20000psi |
|
Working temperature |
-46~121℃ |
|
Material class |
BB, CC, DD, EE, FF |
|
Production specification level |
PSL2, PSL3, PSL3G, PSL4 |
|
Performance rate |
PR1 PR2 |
|
Drift diameter |
2 9/16, 3 1/8 |
Thermal Recovery Wellhead Assembly and Christmas Tree for heavy oil production
Thermal Recovery Wellhead Assembly and Christmas Tree for heavy oil production
Thermal Recovery Wellhead Assembly and Christmas Tree for heavy oil production
Thermal Recovery Wellhead Assembly and Christmas Tree for heavy oil production
Thermal Recovery Wellhead Assembly and Christmas Tree for heavy oil production
DNV PR2 Choke Valve DNV PR2 Gate Valve DNV PR2 Tubing-head Spool API 6A
