Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZICAR
-
Voltage:
-
380v
-
Power:
-
2.2
-
Dimension(L*W*H):
-
1500*1200*1230mm
-
Weight (KG):
-
520
-
Product name:
-
Woodworking Tenon Mortising Machine
-
Type:
-
Working Mortiser
-
Model:
-
MS3112B
-
Working table lifter storke:
-
80mm
-
The tilted angle of working table:
-
±20°
-
Spindle Speed:
-
9500r/min
-
Install power:
-
2.2kw
-
Weight:
-
520kg
-
Overeall Dimensions:
-
1500x1200x1230mm
-
Certification:
-
CE
Quick Details
-
Application:
-
Manufacturing Plant
-
Motor Speed:
-
9500r/min
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZICAR
-
Voltage:
-
380v
-
Power:
-
2.2
-
Dimension(L*W*H):
-
1500*1200*1230mm
-
Weight (KG):
-
520
-
Product name:
-
Woodworking Tenon Mortising Machine
-
Type:
-
Working Mortiser
-
Model:
-
MS3112B
-
Working table lifter storke:
-
80mm
-
The tilted angle of working table:
-
±20°
-
Spindle Speed:
-
9500r/min
-
Install power:
-
2.2kw
-
Weight:
-
520kg
-
Overeall Dimensions:
-
1500x1200x1230mm
-
Certification:
-
CE
Product Parameter
ZICAR mortise woodworking machines mortise and tenon machine horizontal single spindle wood mortising machine for sale
ZICAR
Woodwoking

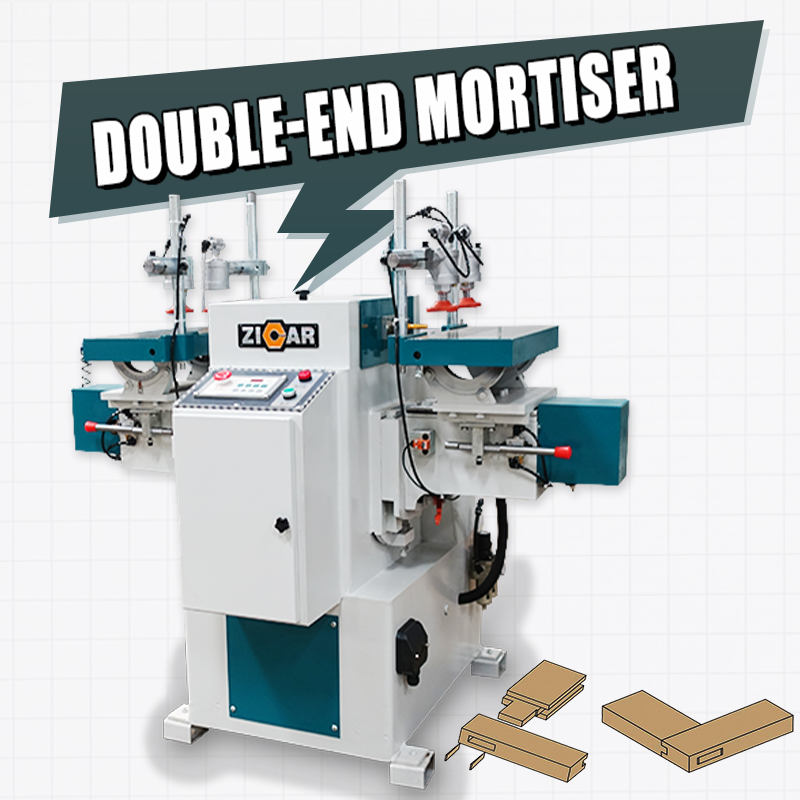

Horizontal Double-End Mortiser：
1.
Double table，high speed spindle，high efficiency.
2.
Suitable for mortise processing of doors，tables，chairs and other products.
3.
The width can be adjusted by digital display，and at the same time，it can be inclined at 30 degrees on the work surface，which is used for the processing of inclined tongue and groove.
4.
The main shaft assembly slides along the precision cylindrical guide rail，and the moving frequency is high to ensure the processing quality and efficiency.
5.
PLC control system，the operation is more stable.
|
Model
|
MS3112B
|
|
Working table lifter storke
|
80mm
|
|
The tilted angle of working table
|
±20°
|
|
Maximum tenon chamfer width
|
120+ 2Rmm
|
|
Maximum tenon groove depth
|
60mm
|
|
Spindle Speed
|
9500r/min
|
|
Install power
|
2.2kw
|
|
Weight
|
520kg
|
|
Overeall Dimensions
|
1500x1200x1230mm
|
