Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
RD
-
Power:
-
7.5KW
-
Dimension(L*W*H):
-
3200mm*1000mm*1100mm
-
Weight:
-
800KGS, 800kg
-
Features:
-
for waste clothes
-
Certification:
-
CE
-
Color:
-
Any color
-
Output:
-
500-800kg / hour
-
Motor:
-
5.5kw+1.5kw
-
Fixed knife:
-
One set alloy toll steel knife
-
Revolving Knife:
-
4 sets carbon steel knife
-
M/C Dimension:
-
3200mm*1000mm*1100mm
-
Feeding:
-
1400mm*350mm
-
Discharging Convey Belt:
-
1400mm*350mm
-
Shear Time:
-
600/min
Quick Details
-
Production Capacity:
-
100%
-
Voltage:
-
380V
-
Application:
-
Recycling for Jeans/Clothes
-
Place of Origin:
-
China
-
Brand Name:
-
RD
-
Power:
-
7.5KW
-
Dimension(L*W*H):
-
3200mm*1000mm*1100mm
-
Weight:
-
800KGS, 800kg
-
Features:
-
for waste clothes
-
Certification:
-
CE
-
Color:
-
Any color
-
Output:
-
500-800kg / hour
-
Motor:
-
5.5kw+1.5kw
-
Fixed knife:
-
One set alloy toll steel knife
-
Revolving Knife:
-
4 sets carbon steel knife
-
M/C Dimension:
-
3200mm*1000mm*1100mm
-
Feeding:
-
1400mm*350mm
-
Discharging Convey Belt:
-
1400mm*350mm
-
Shear Time:
-
600/min

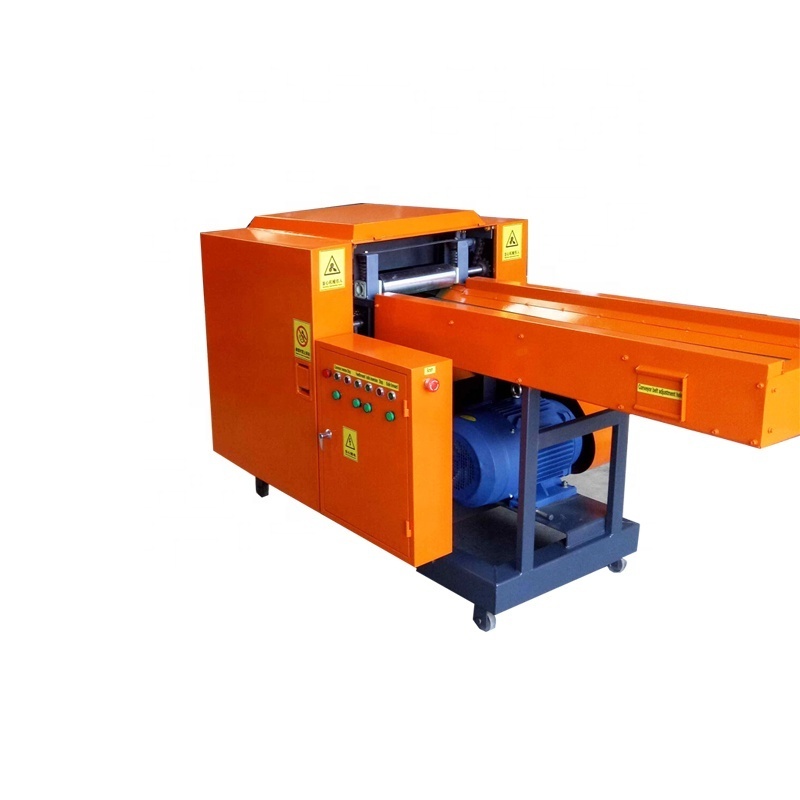

1. Main Parameter of 800C Cutting machine
This series cutting machine is mainly used for cut the waste rags,yarn,clothes,fabric,textiles and chemical fiber etc.This equipment with high efficiency and east maintenance.
- The machine adopt international leading the knob and type rolling knife and the fixed knife suit some mobile shear design, to achieve continuous high-speed shear. Advanced product design, beautiful appearance, economic and practical, control sensitive, shear agile thoroughly.
- The product adopt various high quality special material, after hundreds of procedure precision processing and into.
- The machine has broad scope of application , can quickly cut up all kinds of waste pieces, cotton waste yarn, cotton, chemical fiber, waste clothing, flax, leather, plastic film, paper, trademark brand, non-woven fabrics and other variety of Angle materials, the chopped material size uniformity , length arbitrary adjustable.
- Convenient to move, stable and reliable, easy maintenance, high production efficiency, can solve a lot of manual labor chop cut.
Product Usage
2. Main technical of Textile Waste Recycling Machine
|
Output |
500-800kg / hour |
|
Motor |
5.5kw+1.5kw |
|
Fixed knife |
1 set |
|
Revolving Knife |
4 sets |
|
M/C Dimension |
3200mm*1000mm*1100mm |
|
Weight |
800kg |
|
Feeding Convey Belt |
1400mm*350mm |
|
Discharging Convey Bel t |
1400mm*350mm |
|
Shear Time |
600/min |
Product Features
1. The cutter adopts Cr12mov super hard alloy material, the vacuum quenching treatment, reaching 62 degrees above, adjustable use.
2. The main shaft of the tool holder adopts 40Cr shaft special material, high torque and strong toughness
3. Widen the conveyor belt , 1400mm long and 35 0 mm wide
4. Electrical control cabinet can operate in one hand, reversible switch
5. Overload protector, the cutting range is 3-75mm
Packaging & Shipping
- Standard foreign trade packing
- Ocean shipping or as your requested
1.We have After-sale department,every client can get a timely feedback when they have any trouble about our machine.
2. We have installation team,if you need,we will provide installation service.
3. Our equipment warranty period is 2 years,within this time,we will provide free maintenance.
4.If you have any other question or demand,please feel free to contact our businessmen,they will reply you within 8 hours.
5. We warmly welcome the customer to come our factory to inspect the production line before delivery . The machines only be delivered when the you accept the quality of the machines and the product.
