Quick Details
-
Brand Name:
-
Wirenet
-
Use:
-
FTTX
-
Warranty Time:
-
12 MONTHS
-
Insertion Loss:
-
UPC<0.2dB, APC<0.3dB
-
Operating Temperature:
-
-40 to +75℃
-
Product name:
-
Wirenet SC UPC optical fiber drop cable connector
-
Applicable:
-
3.1 x 2.0 mm drop cable
-
Material:
-
Plastic or steel
-
Polishing:
-
APC, UPC
-
Mode:
-
SM, MM
Quick Details
-
Type:
-
Fiber Adapter & Connectors
-
Model Number:
-
SC UPC fast connector
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Wirenet
-
Use:
-
FTTX
-
Warranty Time:
-
12 MONTHS
-
Insertion Loss:
-
UPC<0.2dB, APC<0.3dB
-
Operating Temperature:
-
-40 to +75℃
-
Product name:
-
Wirenet SC UPC optical fiber drop cable connector
-
Applicable:
-
3.1 x 2.0 mm drop cable
-
Material:
-
Plastic or steel
-
Polishing:
-
APC, UPC
-
Mode:
-
SM, MM

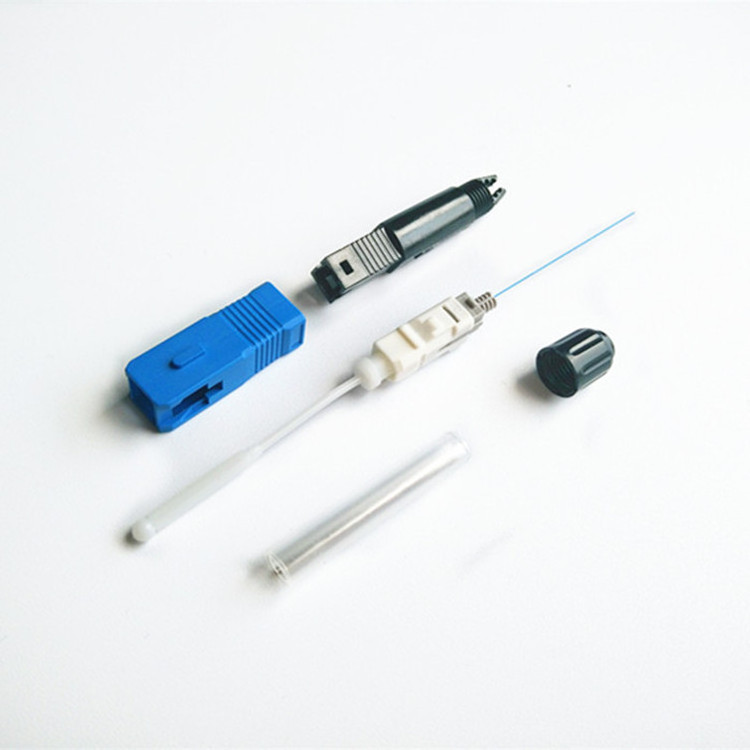

SC UPC Hot melt fiber optic Fast connector FTTH pigtail fusion quick connect Optic Fiber Machine Fast Connector
This kind of Fusion Splice-on Connector is actually an optical fiber fusion, however the welding point is in the inner end of connector, which makes it no necessary for extra protection equipment, such as fiber protection plate(optical fiber splice tray), optical fiber terminal box, optical fiber distribution frame, after it finished splice fusion. The factory pre-polished ferrule eliminates the need for polishing, adhesives, and crimping in the field, which minimizes the potential for operator error and expensive connector scrap. Compared to mechanical optical fast connector, this new practical connector save V-groove mechanical connector maintenance and can improve the span life of welding point of connector and reduce maintenance cost.
Applications
1.Fiber optic equipment
2Fiber optic communication system
3.FTTH optic fiber terminal connection
4Optical access network
5.Fiber optic data transmission
6.CATV
7.Central office connector replacement
8.Data center installation
Features
Field-termination connector with no epoxy or polishing required
No matching gel enables low reflection and high reliability
Splicing point is inside of the connector. No additional splicing work required
Easily assembled with one-touch, push-pull system
Used for φ3.0mm,φ2.0mm cable and 3x2mm drop cable etc
The fusion splice position can be protected by the heat shrinkable tube inside, not easy broken
1.Fiber optic equipment
2Fiber optic communication system
3.FTTH optic fiber terminal connection
4Optical access network
5.Fiber optic data transmission
6.CATV
7.Central office connector replacement
8.Data center installation
Features
Field-termination connector with no epoxy or polishing required
No matching gel enables low reflection and high reliability
Splicing point is inside of the connector. No additional splicing work required
Easily assembled with one-touch, push-pull system
Used for φ3.0mm,φ2.0mm cable and 3x2mm drop cable etc
The fusion splice position can be protected by the heat shrinkable tube inside, not easy broken
|
Interferometer
|
UPC Type
|
APC Type
|
|
|
Radius Of Curvature
|
7mm~25mm
|
5mm~12mm
|
|
|
Apex Offset
|
Max. 50µm
|
Max. 50µm
|
|
|
Fiber Height
|
-50nm~50nm
|
-50nm~50nm
|
|
|
Tile Error on APC 8
|
None
|
±0.3
|
|
|
Operating temp.
|
-40℃~+70℃
|
|
|
|
Storage temp.
|
-40℃~+80℃
|
|
|
