Quick Details
-
Insulation Material:
-
FeP
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SHENYUAN
-
Model Number:
-
KX
-
Product name:
-

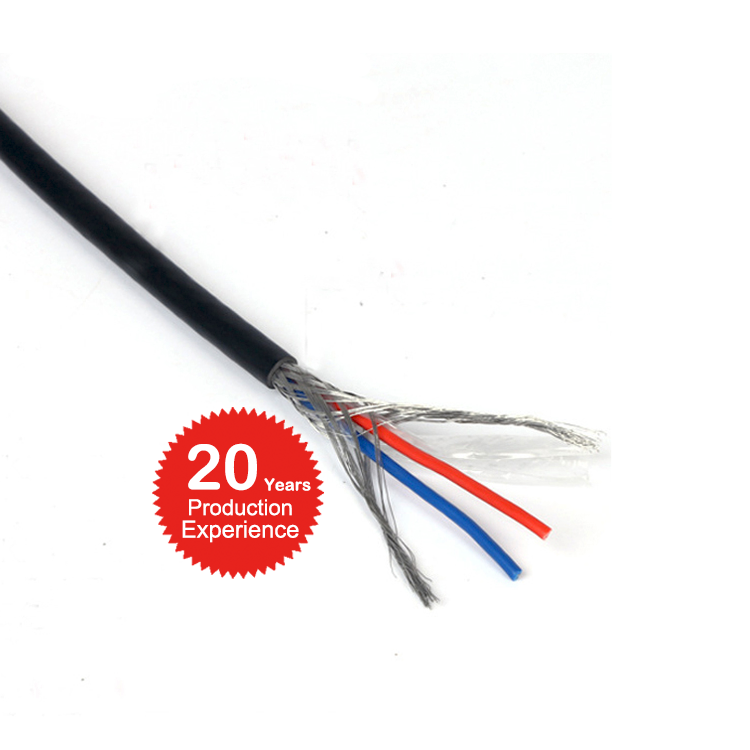

KCA/KCB/KX Type K Thermocouple Extension wire
-
Conductor:
-
Tnickel-chrome,nickel-silicone ,Iron,copper-nickel,copprer
-
Insulation:
-
FEP or PVC or Silicone Rubber
-
Rated Voltage:
-
300/600V
-
Color:
-
Requirement
-
Keyword:
-
thermocouple compensate wire
-
Rated Temperature:
-
-60C ~ +1000C
-
MOQ:
-
200 Meters
-
Packing:
-
Roll
-
Shape:
-
Roud
Quick Details
-
Application:
-
Heating
-
Conductor Material:
-
Tnickel-chrome,nickel-silicone ,Iron,copper-nickel,copprer
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
FeP
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SHENYUAN
-
Model Number:
-
KX
-
Product name:
-
KCA/KCB/KX Type K Thermocouple Extension wire
-
Conductor:
-
Tnickel-chrome,nickel-silicone ,Iron,copper-nickel,copprer
-
Insulation:
-
FEP or PVC or Silicone Rubber
-
Rated Voltage:
-
300/600V
-
Color:
-
Requirement
-
Keyword:
-
thermocouple compensate wire
-
Rated Temperature:
-
-60C ~ +1000C
-
MOQ:
-
200 Meters
-
Packing:
-
Roll
-
Shape:
-
Roud
"Protecting high-temperature electricity safety" is our development policy, Carefully manufacturing every meter cable, protect the high temperature environment electricity safety is the mission of the company.
Description
1) product: extension cable
2) Style No.: KX, NX, EX, JX, SC, RC, NC
3) Size: 2*0.3~2.5mm
²
4) Rated Voltage: 300/600V
5) Rated Temperature:-60°C~+1000°C
6) Conductor: Nickel-chrome, Nickel-silicone, Iron, copper-nickel, copper
7) Insulation: FEP or silicone rubber
8) Color: red / yellow / blue / white / black / yellow green / brown / orange / purple / green / etc
Product features
within a certain temperature range (including room temperature), with the matching thermocouple thermoelectromotive force with the same nominal value of a pair of insulated wire, connect them with thermocouple and measuring device, To compensate for the errors in their temperature changes at the junction with the thermocouple. Divided into extended and compensated.
Applications
* Metallurgy
* chemical industry, petroleum
* power generation
* defense and scientific research
* cables for connection between thermocouples and temperature display instrument.
| Type | Conductor | Grade | Working temperature | Tolerance | |
| Insulation material | deg.C | ||||
| S | Cu, Ni-Cu | A | + 3oC | ||
| B | PVC | -25~70C | + 5oC | ||
| R | Cu, Ni-Cu | A | + 1.5oC | ||
| B | Silicone: | -60~200C | + 2.5oC | ||
| K | Cu, Ni-Cu/ | A | + 1.5oC | ||
| Ni-Cr, Ni-Si | B | FEP/PFA | -60~250C | + 2.5oC | |
| N | Cu, Ni-Cu/ | A | + 1.5oC | ||
| Ni-Cr, Ni-Si | B | Fiberglass | -60~500C | + 2.5oC | |
| E | Ni-Cr,Ni-Cu | A | + 1.5oC | ||
| B | Kapton | -60-300C | + 2.5oC | ||
| J | Iron,Ni-Cu | A | + 1.5oC | ||
| B | + 2.5oC | ||||
| T | Cu, Ni-Cu | A | + 0.5oC | ||
| B | + 1oC | ||||
