Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TOPEP
-
Dimension(L*W*H):
-
Customized, Height 600mm
-
Weight:
-
1.5 KG
-
Product name:
-
High quality Sand Blasting dust removal Air Filter Cartridge
-
Filter Type:
-
Outer Air Filter Element
-
Application:
-
Air Purifying
-
Structure:
-
Pleated cartridge
-
Feature:
-
Large Dust Collect
-
Filtration Grade:
-
Medium Filter
-
Medium Material:
-
Paper
-
Size:
-
Customized Size
Quick Details
-
Core Components:
-
Filter layer
-
Efficiency:
-
99.9%
-
Porosity:
-
Customized
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TOPEP
-
Dimension(L*W*H):
-
Customized, Height 600mm
-
Weight:
-
1.5 KG
-
Product name:
-
High quality Sand Blasting dust removal Air Filter Cartridge
-
Filter Type:
-
Outer Air Filter Element
-
Application:
-
Air Purifying
-
Structure:
-
Pleated cartridge
-
Feature:
-
Large Dust Collect
-
Filtration Grade:
-
Medium Filter
-
Medium Material:
-
Paper
-
Size:
-
Customized Size

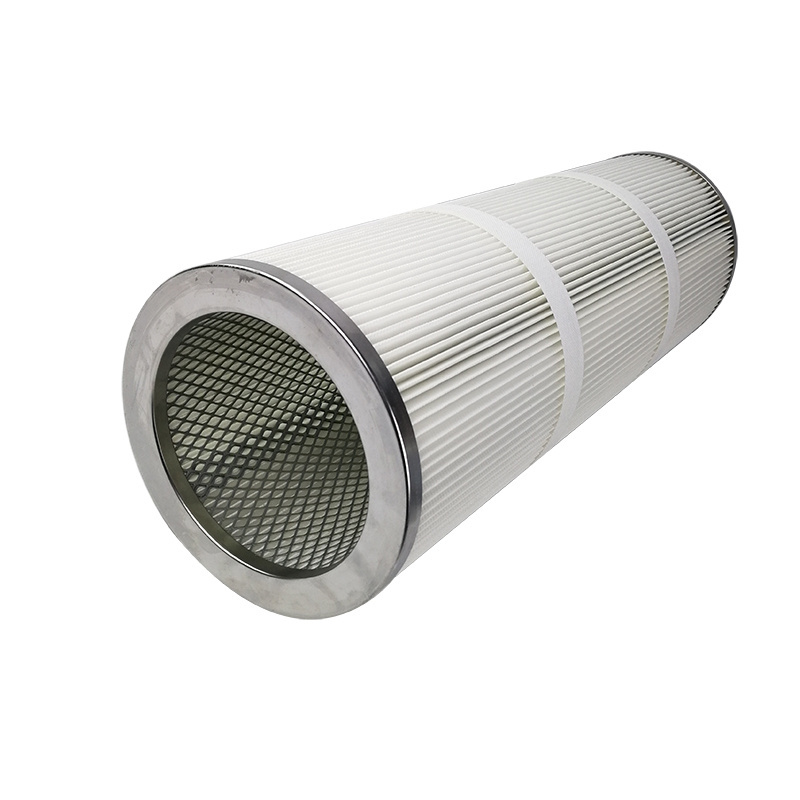

High quality dust removal air filter cartridge
It uses high-quality filter material production with high filtration efficiency, reasonable structure design, easy to clean dust. It could separate of the dust in the air, reduce environmental pollution. It has high collection efficiency, easy cleaning, large filtration area and so on merits.
Advantages
1) Imported PTFE coated polyester filter media, small pore size, high filtration precision.
2) Smooth filter media surface, not sticky.
3) Excellent chemical resistance.
4) Electro-galvanized / stainless steel cover, central skeleton.
5) Professional sealing obturator elastic neoprene.
6) Operating temperature ≤ 135 ° C
Dust filter cartridge features
1. Greatly increase the effective filtration area.
2. Ensure a low and stable pressure difference, improve the flow ventilation.
3. The filter element is small and easy to install.
4. Especially suitable for industries with large dust concentration.
Model for you chioce
|
Model |
Dimensions (mm) W×H×D |
Rated air flow m 3 /h |
Initial resistance pa |
Material |
|
|
Frame |
Media |
||||
|
3266 3275 3290 |
324*213*660 324*213*750 324*324*915
|
800 900 1200
|
80-100 80-100 80-100 |
Aluminum Alloy/ Galvanized sheet |
Cellulose, Filter glass, synthetic material |
Three installation methods of dust filter cartridge:vertical,inclined and horizontal installation
1.The filter cartridge is installed vertically, when the dust is cleaned by pulse, the dust is easy to fall and settle to the ash hopper, and the effect is good.
2. When installed obliquely, the filter cartridges are stacked one on top of the other. The structure is compact and the floor space is small. It is easy to change the cartridges.
3. Installed horizontally, the dust above the lower filter cartridge is more difficult to remove.
Effects
The dust filter cartridge has a large effect and high efficiency, and the surface of the workpiece is clean, which can significantly improve the fatigue strength of the surface of the workpiece.
