Quick Details
-
Brand Name:
-
CL
-
Model Number:
-
A-350AA-5
-
Output Frequency:
-
50-60HZ
-
Output Current:
-
70A
-
Product Name:
-
5V 70A AC 110V 220V LED Screen Power Supply
-
Output:
-
5V
-
Inrush Current:
-
70A
-
Power:
-
350W
-
Efficiency:
-
90%
-
Cooling:
-
Built-in D C Fan
-
Brand:
-
G-Energy
-
Warranty:
-
2 Years
-
Certification:
-
CE
-
Material:
-
Aluminum Housing
Quick Details
-
Input Voltage:
-
110V/ 220V
-
Output Voltage:
-
5V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CL
-
Model Number:
-
A-350AA-5
-
Output Frequency:
-
50-60HZ
-
Output Current:
-
70A
-
Product Name:
-
5V 70A AC 110V 220V LED Screen Power Supply
-
Output:
-
5V
-
Inrush Current:
-
70A
-
Power:
-
350W
-
Efficiency:
-
90%
-
Cooling:
-
Built-in D C Fan
-
Brand:
-
G-Energy
-
Warranty:
-
2 Years
-
Certification:
-
CE
-
Material:
-
Aluminum Housing

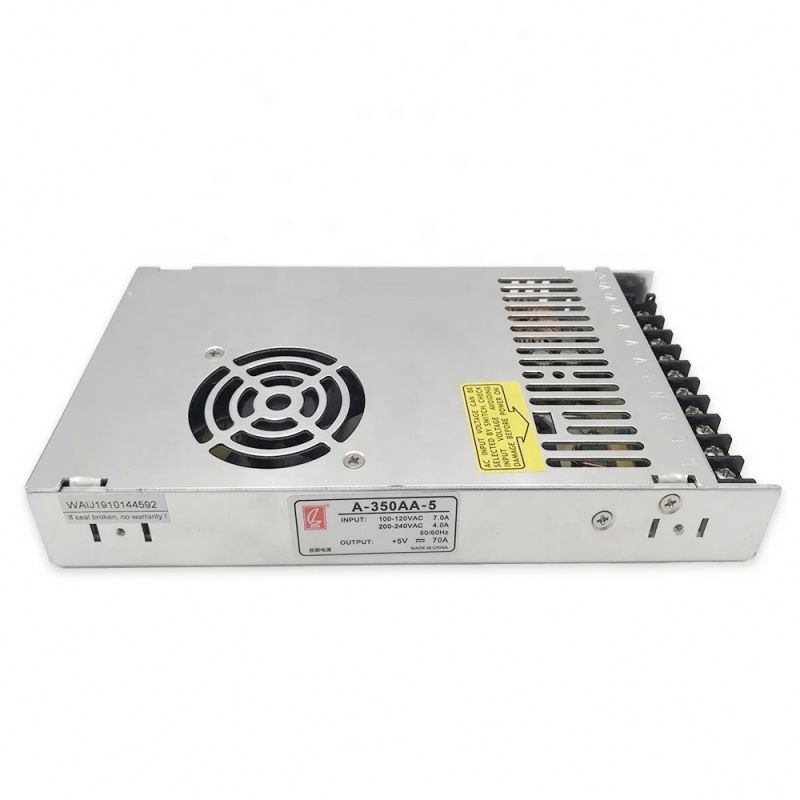

CL A-350AA-5 High Efficiency 5V 70A AC 110V 220V LED Screen Power Supply
Specification:
Output power: 350W Max
Leakage current: <1ma(Vin:230)
Working temperature: - 30 ℃ ~ 60 ℃
Heat dissipation: self - cooling
Storage temperature: - 40 ~ 80 ℃
Input voltage: 100-120 vac / 200-240 vac, 47-63hz
Installation voltage: I/ p-o /P: 3.0kvac;The I/P - FG: 1.5 KVac;O/P - FG: 0.5 KVac
Safety standard: GB4943,EN60950
Protection function: input voltage, overload protection, short circuit protection
Power factor: 0.50@230vac
Size: length × width × height = 218mm × 117mm × 30.5mm
