Advantage: Good heat preservation effect, reducing heat loss by 50%
Solar Passive Greenhouse
is mainly used for cold area which has high latitude, long winter duration, short sunshine duration, low temperature and heavy snowfall.
This greenhouse is designed to adapt to this condition, using a double-film structure, effectively prevent heat loss; external insulation quilt, insulation from external cold air, further prevent heat loss. Two layers of insulation measures, heat loss can reduce 60-70%.
Crop growth time will be shortened by 20-30%, crop yield will increase by 10-15%, and does not require a large amount of heatinginput.
- Product Details
- {{item.text}}
Quick Details
-
Instruction for use:
-
Installation Drawing
-
Model Number:
-
ST8X50
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Solar Passive Greenhouse
-
Application:
-
Growing Tomato, cucumber, peper
-
Features:
-
Easy Assembled
-
Width:
-
8m-16m
-
Length:
-
50-120m
-
Height:
-
4-6M
-
Frame material:
-
Hot Dip Galvanized Steel Tube
-
Covering:
-
150/200micro Film
-
Ventilation:
-
Roof Ventilation+side Ventilation
-
Optional system:
-
Cooling System,irrigation System
Quick Details
-
Size:
-
Small
-
Type:
-
Single-Span Agricultural Greenhouses
-
Manufacturer:
-
Shine-tech
-
Instruction for use:
-
Installation Drawing
-
Model Number:
-
ST8X50
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Solar Passive Greenhouse
-
Application:
-
Growing Tomato, cucumber, peper
-
Features:
-
Easy Assembled
-
Width:
-
8m-16m
-
Length:
-
50-120m
-
Height:
-
4-6M
-
Frame material:
-
Hot Dip Galvanized Steel Tube
-
Covering:
-
150/200micro Film
-
Ventilation:
-
Roof Ventilation+side Ventilation
-
Optional system:
-
Cooling System,irrigation System
Product Description
Agricultural Sunshine greenhouse planting strawberry vegetable green house winter insulation Blanket
|
Solar Passive Greenhouse
|
|
|
|
Product Name
|
Solar Passive Greenhouse
|
|
|
Width
|
8m~16m
|
|
|
Length
|
50m~120m
|
|
|
Height of Greenhouse
|
3.5-6m (customization)
|
|
|
Covering
|
150/200 micron PE/PO Film
|
|
|
Wind load
|
45km/m2
|
|
|
Snow load
|
0.5KN/m2
|
|
|
Max. rainfall
|
140mm/h
|
|
|
Hanging load
|
14kgkg/m2
|
|
|
Optional system
|
Side ventilation, roof ventilation, drip irrigation system, fogging system, cooling system, etc.
|
|
Details Images
Solar Greenhouse
The greenhouse has three walls of brick or clay. We can call it "
Lean on wall greenhouse
". The southern side of the GREENHOUSE consists of plastic film or PC sheet.
The brick walls block the cold, northern winds, then keep the greenhouse warm.
Separate Solar Greenhouse
The greenhouse is made of steel pipes all around (no brick walls). the whole structure is covered with plastic film. In order to achieve the thermal insulation effect, the four sides can be covered with waterproof thermal insulation quilt
/blanket.

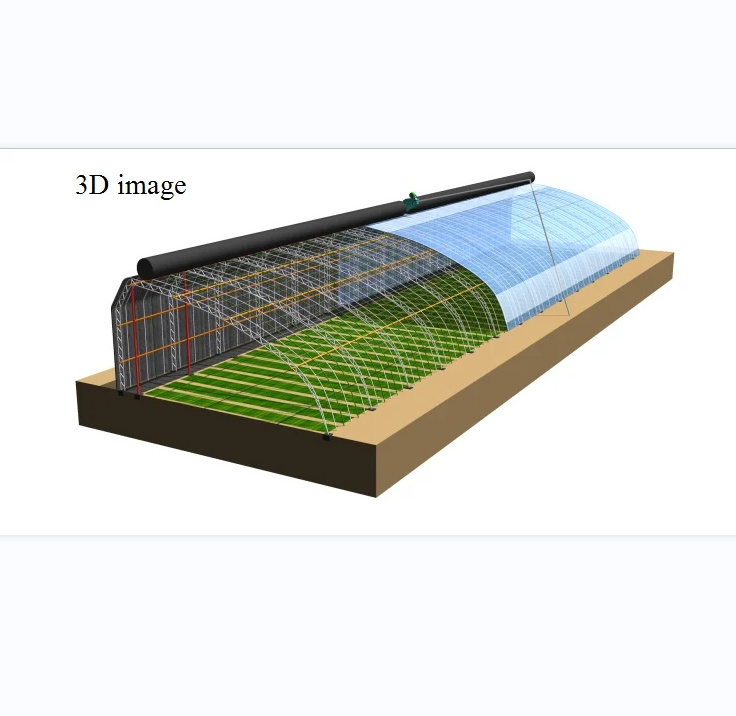

Double Layer Solar Greenhouse
The greenhouse is double arch structure used for very cold area. Like Russia, Cnada, USA,etc. the outer layer is covered with film, and the inner layer is covered with film and thermal insulation quilt/blanket.
Frame
25mm/32mm/ 42mm /60mm diameter, thick 1.5mm, 2.0mm, hot dip galvanized steel pipe
The greenhouse structure is installed directly by screws or self drill screws.
The warranty period of frame is 15~20 years
The warranty period of frame is 15~20 years
Covering
Thickness: 120/150/200 microns.
It has function of anti-UV, anti-aging and anti-drip.
Light transmission:>89%
Light transmission:>89%
Diffusion≤20%
UV transmission 300%-390%
Warranty: 4-5 years
UV transmission 300%-390%
Warranty: 4-5 years
Front Ventilation System
Top Ventilation System
Warming Quilt
The Waterproof warming quilt has Excellent insulation performance for a long time，Long anti-aging life，not easy to puncture the
greenhouse.
greenhouse.
Quilt Roll-up Motor
The greenhouse is equipped with a electric motor to roll the quilt during the day to provide light
to the plants, and put the quilt down at night to keep warm and cold.
to the plants, and put the quilt down at night to keep warm and cold.
