Quick Details
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
Depends on the model
-
Weight:
-
130 KG
-
Usage:
-
Chemical industry
-
Material:
-
Carbon steel, Stainless steel SUS304, 316L
-
Model:
-
S49A800, 1000, 1200, 1500
-
Wire frame:
-
Adhesive wire frame
-
Adjustment method:
-
Disc Intelligent Adjustment Device
-
Motor:
-
ZJK, Italvibras, Wolong
-
Bolt:
-
GEM
-
For what particle size:
-
2-500mesh
-
Certification:
-
ISO9001:2008, BV
-
Function:
-
Solid-liquid separation/ particle classification/impurities removal
Quick Details
-
Type:
-
Circular
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Weiliang
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
Depends on the model
-
Weight:
-
130 KG
-
Usage:
-
Chemical industry
-
Material:
-
Carbon steel, Stainless steel SUS304, 316L
-
Model:
-
S49A800, 1000, 1200, 1500
-
Wire frame:
-
Adhesive wire frame
-
Adjustment method:
-
Disc Intelligent Adjustment Device
-
Motor:
-
ZJK, Italvibras, Wolong
-
Bolt:
-
GEM
-
For what particle size:
-
2-500mesh
-
Certification:
-
ISO9001:2008, BV
-
Function:
-
Solid-liquid separation/ particle classification/impurities removal
Product Description

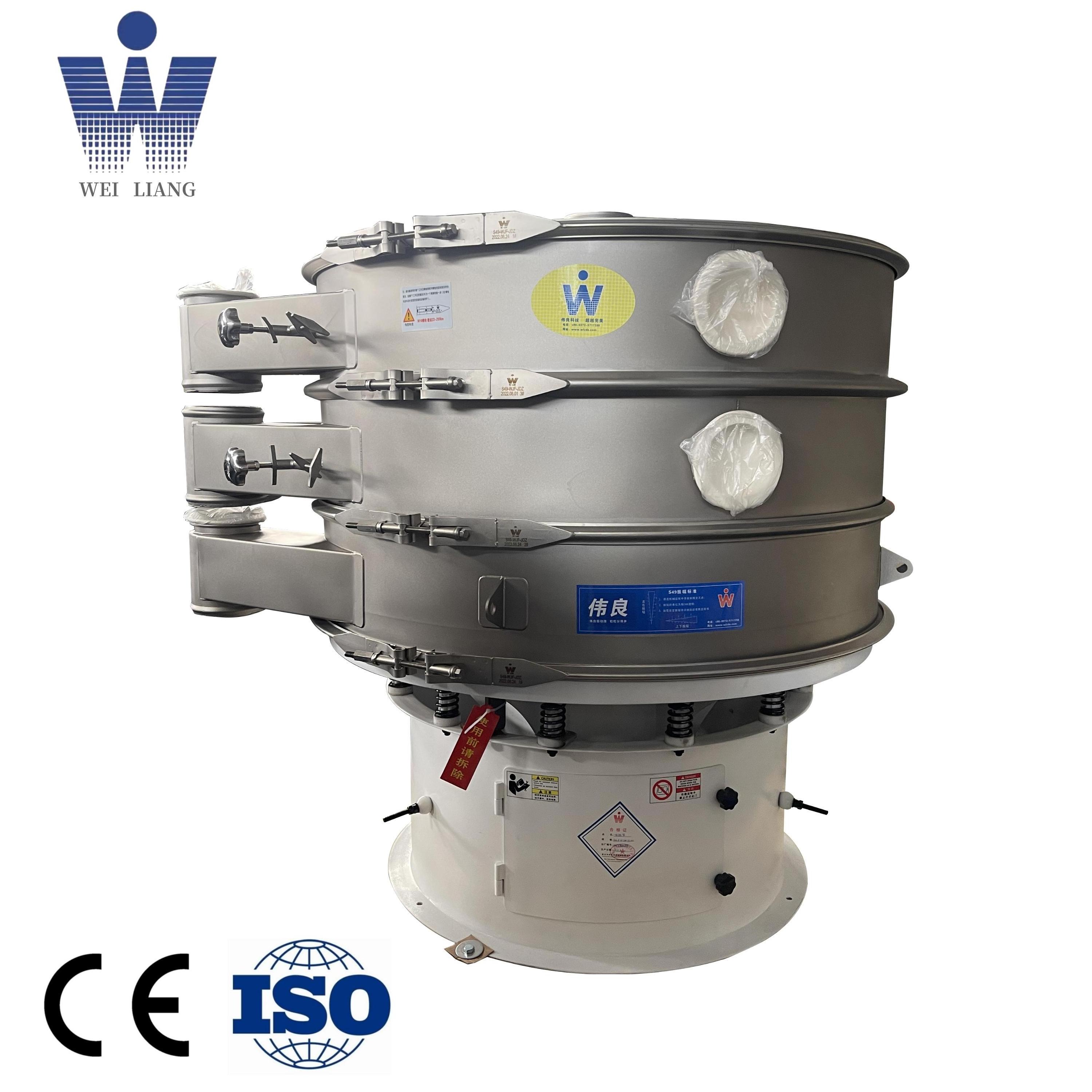

WEILIANG S49 Vibrating Screen
The Weiliang S49 vibrating screen is suitable for
economical processing and wet screening of almost all bulk materials in the fine, medium and coarse grain range,
which widely used in the p
harmaceutical, food, fine chemical, mining and recycling industries
. The machine is driven by a vibrating motor, which produces horizontal and circular wobbling motion, so that the material moves spirally from the center to the outer peripheral.
Solid-liquid separation
To recover usable solids or clarified liquids.
Classification
To separate into comparable size.
Up to six fractions simultaneously.
Impurity removal/ scalping
To remove a small percentage of undesirable oversized particles in a high-throughput process.
Details Images
Disc Intelligent Adjustment Device
No-tools intelligence adjustment device for quick adjusting the excitation force: top force wheel for the horizontal excitation force and bottom force wheel for vertical excitation force
.
Cleaning Methods
Technical Parameters
|
Model
|
S49-800
|
S49-1000
|
S49-1200
|
S49-1500
|
|||
|
Diameter(mm)
|
Ø730
|
Ø900
|
Ø1100
|
Ø1400
|
|||
|
Mesh area(sq.m)
|
0.4
|
0.6
|
0.9
|
1.5
|
|||
|
Power(kw)
|
0.75
|
0.75
|
2.2
|
2.2
|
|||
|
Layer(s)
|
1-4
|
|
|
|
|||
|
Mesh
|
2-500 mesh
|
|
|
|
|||
Applications
*
Pharmaceuticals
(Chinese medicine powder, western medicine powder, etc.)
* Food (sugar, salt, rice flour, milk powder, soy milk, soy sauce, juice, etc.)
* Chemical (resin, paint, cosmetics, paint, etc.)
* Recycling (waste oil, waste water, activated carbon, additives, etc.)
* Metals & Metallurgy (aluminum powder, lead powder, copper powder, alloy powder, electromagnetic materials, refractory materials, etc.)
* Food (sugar, salt, rice flour, milk powder, soy milk, soy sauce, juice, etc.)
* Chemical (resin, paint, cosmetics, paint, etc.)
* Recycling (waste oil, waste water, activated carbon, additives, etc.)
* Metals & Metallurgy (aluminum powder, lead powder, copper powder, alloy powder, electromagnetic materials, refractory materials, etc.)
Packing & Delivery
Inner packaging: Stretch film for machine
Outer packaging: Standard export wooden box
