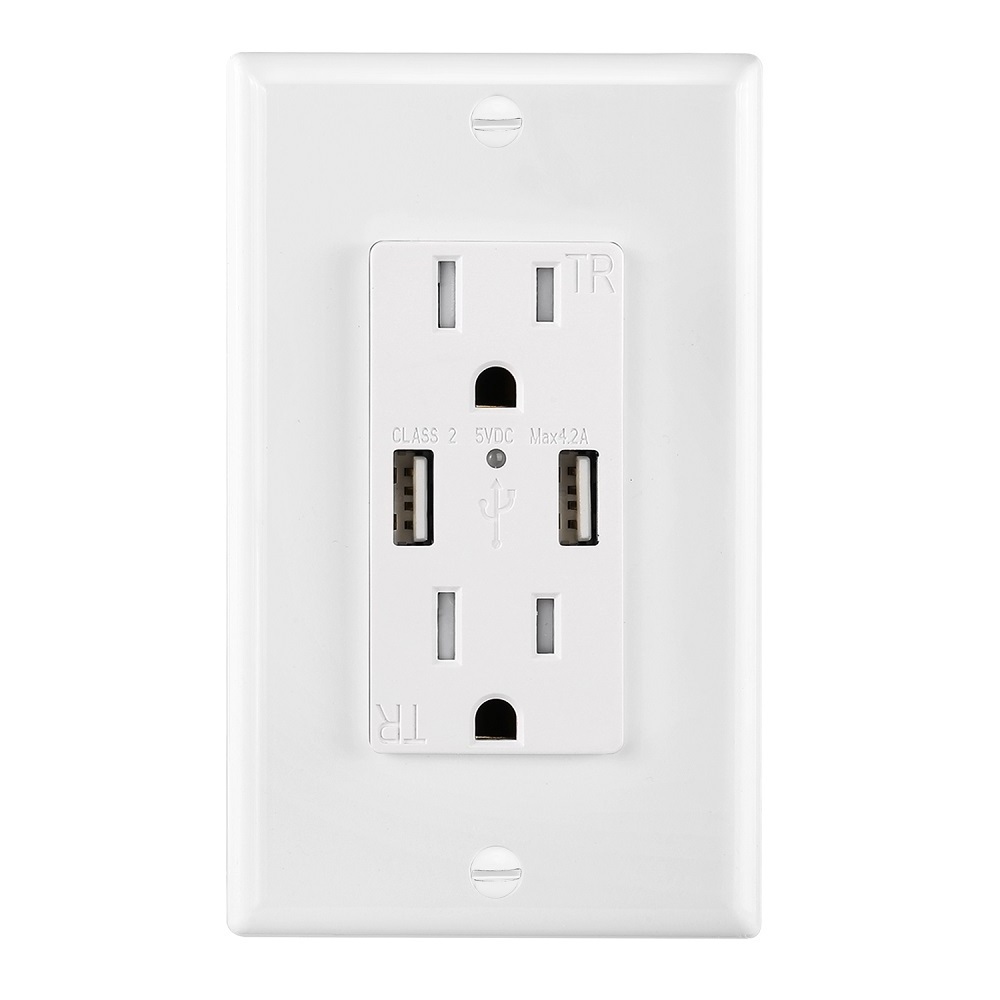

The USB Charger/Tamper-Resistant Duplex Receptacle offers two high-powered USB Ports with 4.2A of charging power and 15A/110-240V Tamper-Resistant Receptacles. It has the capability to charge two USB powered electronic devices utilizing its two USB Ports, leaving the two Tamper-Resistant Receptacles free for other uses. The USB charger/Tamper-Resistant Duplex Receptacle is designed to charge tablets, smart and mobile phones, gaming devices, e-readers, digital cameras and a host of other electronic devices.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Usb Wall Socket
-
Color:
-
White,black,Almond, Ivory
-
Keyword:
-
Duplex Receptacle Usb
-
Certificate:
-
ETL
-
Warranty:
-
2years
-
USB output:
-
5V 4.2A
-
Voltage:
-
100-240V
-
Operating temperature:
-
-35~+66 Degree
-
Function:
-
Power Charging
-
MOQ:
-
1 Pcs
Quick Details
-
Rated Voltage:
-
110V
-
Rated Current:
-
15A
-
Application:
-
Residential / General-Purpose
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Usb Wall Socket
-
Color:
-
White,black,Almond, Ivory
-
Keyword:
-
Duplex Receptacle Usb
-
Certificate:
-
ETL
-
Warranty:
-
2years
-
USB output:
-
5V 4.2A
-
Voltage:
-
100-240V
-
Operating temperature:
-
-35~+66 Degree
-
Function:
-
Power Charging
-
MOQ:
-
1 Pcs
Why Choose Us
Products Description
Free Sample 125V 15A Wall USB Outlet with Cover
Product Advantage:
--Keygma® Duplex Receptacle
--15 Amp, 110-240 Volt, NEMA 5-15R, 2P, 3W,
--Meet UL498 (cETLus approved)
--Takes up to 20% less space vs. other USB Outlets
--Operating Temperature from -35℃ to 66℃
--100% One by One Test
--Aging with Load for more than 5 hours
--Warranty:2 years
--15 Amp, 110-240 Volt, NEMA 5-15R, 2P, 3W,
--Meet UL498 (cETLus approved)
--Takes up to 20% less space vs. other USB Outlets
--Operating Temperature from -35℃ to 66℃
--100% One by One Test
--Aging with Load for more than 5 hours
--Warranty:2 years
|
Amperage
|
15 Amp
|
Voltage
|
110-240 Volt
|
|
Pole
|
2
|
Wire
|
3
|
|
Grounding
|
General Grounded
|
Dielectric Voltage
|
Withstands 2000V per UL498
|
|
USB Ports
|
2
|
Current Interrupting
|
2KA
|
|
Flammability
|
Rated V-2 per UL498
|
Operating Temperature
|
-35°C to +66°C
|
|
Face Material
|
100% pure PC
|
Terminal Screws
|
Plated Steel
|
|
Terminal Clamp
|
Brass
|
Line Contacts
|
Brass
|
|
Grounding Screws
|
Plated steel
|
Mounting Strap Material
|
Galvanized Steel
|
|
NEMA
|
WD-1 & WD-6
|
Applicable Standards
|
UL 498
|
Details Images
It can support110V to 240V which can be used widely all South America and North America as well as other American standard areas.
INNER COPPER SHEET.
0.8mm phosphor copper to keep the terminal low temperature and good conductivity.
Real materials ensure your safety.
Real materials ensure your safety.
TAMPER RESISTANT
a, Complies with NEC ® requirement, all 15A and 20A receptacles installed in dwelling units should be with tamper-resistant
b, Receptacles with Shutter mechanism block access to the contacts unless the plug is fully inserted
b, Receptacles with Shutter mechanism block access to the contacts unless the plug is fully inserted
Residential and Commercial Applications:
Kitchens, Bedrooms, Home Offices, Airport Lounges, Salons and Spas, Hotels, Meeting Rooms, Office Cubicles, College Dormitories,Cafes, Coffee Houses, Restaurants
Kitchens, Bedrooms, Home Offices, Airport Lounges, Salons and Spas, Hotels, Meeting Rooms, Office Cubicles, College Dormitories,Cafes, Coffee Houses, Restaurants
Recommend Products
About Us
We are the leading manufacturer of residential and commercial ground fault circuit interrupters (GFCIs) in the electrical industry. It offers a wide variety GFCIs to help protect people from electrical shock in homes, offices, hospitals, schools, and the outdoors. Built with a patented reset lockout feature that blocks the reset button if GFCI protection has been compromised
Our Products meet the latest NEC and UL requirements. You'll find smart choices for every need, including tamper-resistant,weather-resistant. USB outlets,smart socket and LED dimmer are in great demonds.
Our Products meet the latest NEC and UL requirements. You'll find smart choices for every need, including tamper-resistant,weather-resistant. USB outlets,smart socket and LED dimmer are in great demonds.
Certifications
All the products are with ETL certificate. ETL No.5001170.
10+ patent are applied
The main markets are the ones who use US standard outlets.
Customers visit us for projects, reselling, wholesale etc. You are warmly welcomed to visit us any time.
Customers visit us for projects, reselling, wholesale etc. You are warmly welcomed to visit us any time.
ODM & OEM Case
We are ready for OEM & ODM service for you. Once you have an idea on electrical products, come to us, we'll help you make it come true.We have do it for some customers as Below:
FAQ
Q1: Are you a manufacturer?
We have our own facory and stable partners,provide OEM & ODM service in Shenzhen,China. Your are very welcomed to visit our factory when you come to China.
Q2: What's your MOQ?
A: For the conventional products,Small order and sample accepted.
If you need customized service, we need evaluate and tell the cost and MOQ.
Q3. What is the payment term?
A: Usually T/T 30% as deposit, and 70% before delivery. More payment terms can be negotiated based on the cooperation.
Q4: What is your production capacity?
We have our own facory and stable partners,provide OEM & ODM service in Shenzhen,China. Your are very welcomed to visit our factory when you come to China.
Q2: What's your MOQ?
A: For the conventional products,Small order and sample accepted.
If you need customized service, we need evaluate and tell the cost and MOQ.
Q3. What is the payment term?
A: Usually T/T 30% as deposit, and 70% before delivery. More payment terms can be negotiated based on the cooperation.
Q4: What is your production capacity?
We can do 80K per month.We always ship the products on time.
