Quick Details
-
Table Travel (Z) (mm):
-
220 mm
-
Travel (W-axis) (mm):
-
220 mm
-
Positioning Accuracy (X axis) mm:
-
0.001
-
Positioning Accuracy (Y axis) mm:
-
0.001
-
Positioning Accuracy (Z axis) mm:
-
0.001
-
Range of Spindle Speed(r.p.m):
-
945 r.p.m
-
Spindle Motor Power(kW):
-
1.5
-
Production Capacity:
-
High
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SMAC
-
Voltage:
-
380V/220v
-
Dimension(L*W*H):
-
3910X650X1400
-
Weight (T):
-
1 T
-
Precision:
-
High Precision Floor
-
Keyword:
-
Boring Bar Machine
-
Material:
-
High Grade Cast Iron
-
modell:
-
T8120*20
-
Bored hole diameter:
-
36-220mm
-
Max.length of cylinder body:
-
2000mm
-
Main shaft max elongation:
-
300mm
-
Main shaft rotating speed:
-
210-945r/min(6step)
-
Boring rod feed quantity:
-
0.044,0.167mm/rad
-
Motor power:
-
075/1.1Kw
Quick Details
-
Table Size (mm):
-
Other
-
Table Travel (X) (mm):
-
150 mm
-
Table Travel (Y) (mm):
-
1600 mm
-
Table Travel (Z) (mm):
-
220 mm
-
Travel (W-axis) (mm):
-
220 mm
-
Positioning Accuracy (X axis) mm:
-
0.001
-
Positioning Accuracy (Y axis) mm:
-
0.001
-
Positioning Accuracy (Z axis) mm:
-
0.001
-
Range of Spindle Speed(r.p.m):
-
945 r.p.m
-
Spindle Motor Power(kW):
-
1.5
-
Production Capacity:
-
High
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SMAC
-
Voltage:
-
380V/220v
-
Dimension(L*W*H):
-
3910X650X1400
-
Weight (T):
-
1 T
-
Precision:
-
High Precision Floor
-
Keyword:
-
Boring Bar Machine
-
Material:
-
High Grade Cast Iron
-
modell:
-
T8120*20
-
Bored hole diameter:
-
36-220mm
-
Max.length of cylinder body:
-
2000mm
-
Main shaft max elongation:
-
300mm
-
Main shaft rotating speed:
-
210-945r/min(6step)
-
Boring rod feed quantity:
-
0.044,0.167mm/rad
-
Motor power:
-
075/1.1Kw
Recommend Products
Products Description
Introduction

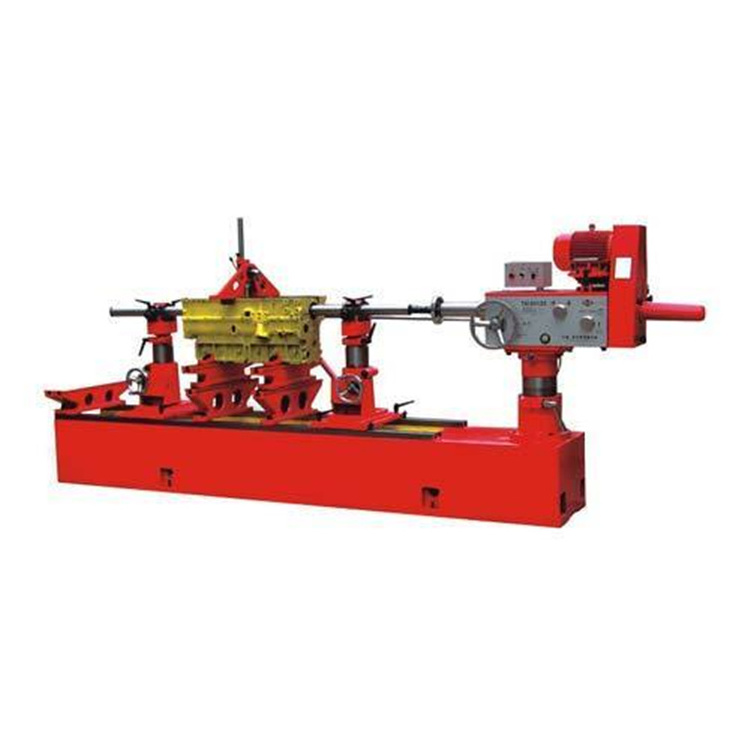

The modle T8120*20 and T8115B*16 cylinder body bushing boring machine which were developed in our factory,they can be used for
boring masrer bushing
and
bushing of engine&generator's cylinder bodier in automobiles
,
tractots and ships etc.
In order to
reduce auxiliary manhours
and
labour intensity
and
guarantee machining quality
,accessories for centering,sectifying tool,measuring inner diameter,boring tool microadjuster and for diatance tool sectifying device can be provided with the main machine
Features:
⭐This machine is used for boring master bushing and bushing of engine & generator's cylinder bodier in automobiles, tractors and ships etc.
⭐
With
long travel of tool feeding
, which can improve the work efficiency and coaxial of bored bushing.
availably. ⭐ The auto-feeding system adopts stepless adjusting, suits for processing all kinds of materials and hole diameter of
the bushing.
⭐ With special measuring device, it is easily to measure the work piece.
Specifcation
|
Specification
|
T8120A*20
|
T8120*20
|
T8115B*16
|
|
|
Bored hole diameter
|
Φ28- Φ225mm
|
Φ36- Φ220mm
|
Φ36- Φ150mm
|
|
|
Max.length of cylinder body
|
2250mm
|
2000mm
|
1600mm
|
|
|
Main shaft max elongation
|
300mm
|
300mm
|
|
|
|
Main shaft rotating speed
|
30-150(1)
|
210-945r/min(6step)
|
|
|
|
|
90-467(11)
|
30-467(stepless)
|
|
|
|
Boring rod feed quantity
|
0.43,0.85,0.125mm/rad
|
0.044,0.167mm/rad
|
|
|
|
Motor power
|
1.5Kw
|
075/1.1Kw
|
|
|
|
|
|
1.5Kw
|
|
|
|
Dimensions(L*W*H)
|
3900*650*1400
|
3910*650*1400
|
3510*650*1410
|
|
