HDMI splitter video and audio 60hz 4k 1X4 Supports POC/EDID/Digital and analog audio de-embedded outputs/HDR, HDR10+ and HLG

Product Name : HDMI splitter video and audio 60hz 4k 1X4 Supports POC/EDID/Digital and analog audio de-embedded outputs/HDR, HDR10+ and HLG

Introduction:
The 18Gbps HDMI 1x4 Splitter can distribute 1 HDMI source signal to any4
display devices. The signal transmission distance can be extended up to 35
meters at the resolution of 4K2K@60Hz, 50 meters at 4K2K@30Hz, 60
meters at 1080P@60Hz via a single CAT6/6a/7 cable. The product supportsup to
7.1CH HD audio pass-through. Audio extract function and advanced EDID
management are supported.

Features:
1. HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
2. Support 18Gbps video bandwidth
3. Support video resolution up to 4K2K@50/60Hz 4:4:4
4. Support HDR, HDR10+, HLG and Dolby vision
5. Support up to 7.1CH HD audio pass-through
6. Support digital and analog audio de-embedded output
7. Extend the signal transmission distance up to 35 meters at the resolution of
4K2K@60Hz, 50 meters at 4K2K@30Hz, 60 meters at 1080P@60Hz via a
single CAT6/6a/7 cable

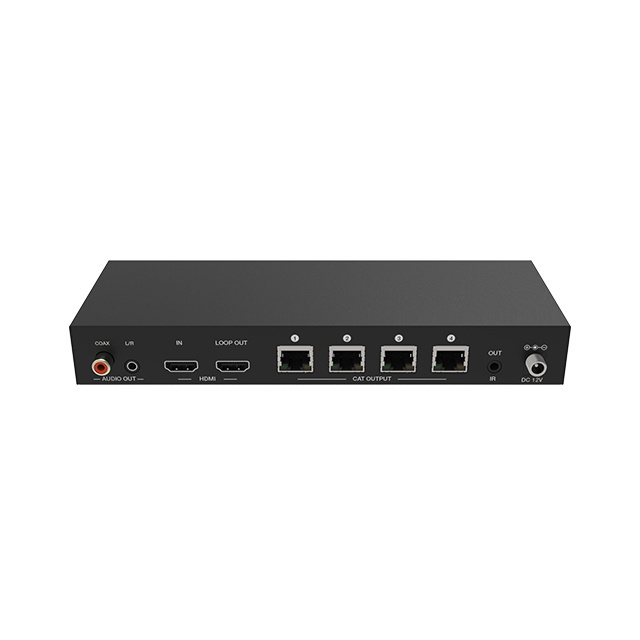

8. Support 1 HDMI input, 1 HDMI loop output and 4 CAT outputs.
9. Support one-way IR control signal pass-through
10. Advanced EDID management
11. Support one-way PoC function (only from transmitter to receiver)
12. Compact design for easy and flexible installation

Package Contents:
1× 18Gbps 1×4 HDMI Splitter over 60m CAT
4× CAT Receiver
1× IR Blaster Cable (1.5 meters)
4× 20K~60KHz IR Receiver Cable (1.5 meters)
1× 12V/2.5A DC Locking Power Adapter
1× User Manual
