Quick Details
-
Voltage:
-
380V
-
Power:
-
22000
-
Dimension(L*W*H):
-
2100*1260*980
-
Weight (KG):
-
540
-
Name:
-
multi-function sawdust coir crusher machine
-
Application:
-
Mushroom Wood/coconut shell/Corn stalks,etc.
-
Keywords1:
-
Garden waste Wood Crusher
-
Keywords2:
-
Sawdust crushing Machine
-
Keywords:
-
Branch wood shredding machine
-
Function:
-
crushing and shredding by hammer
-
Final product:
-
sawdust/wood chips/coir
-
Capacity:
-
1-6t/h
-
Spare parts:
-
hammer
-
advantage:
-
high efficiency and durable
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
JOCONN
-
Marketing Type:
-
New Product
-
Voltage:
-
380V
-
Power:
-
22000
-
Dimension(L*W*H):
-
2100*1260*980
-
Weight (KG):
-
540
-
Name:
-
multi-function sawdust coir crusher machine
-
Application:
-
Mushroom Wood/coconut shell/Corn stalks,etc.
-
Keywords1:
-
Garden waste Wood Crusher
-
Keywords2:
-
Sawdust crushing Machine
-
Keywords:
-
Branch wood shredding machine
-
Function:
-
crushing and shredding by hammer
-
Final product:
-
sawdust/wood chips/coir
-
Capacity:
-
1-6t/h
-
Spare parts:
-
hammer
-
advantage:
-
high efficiency and durable

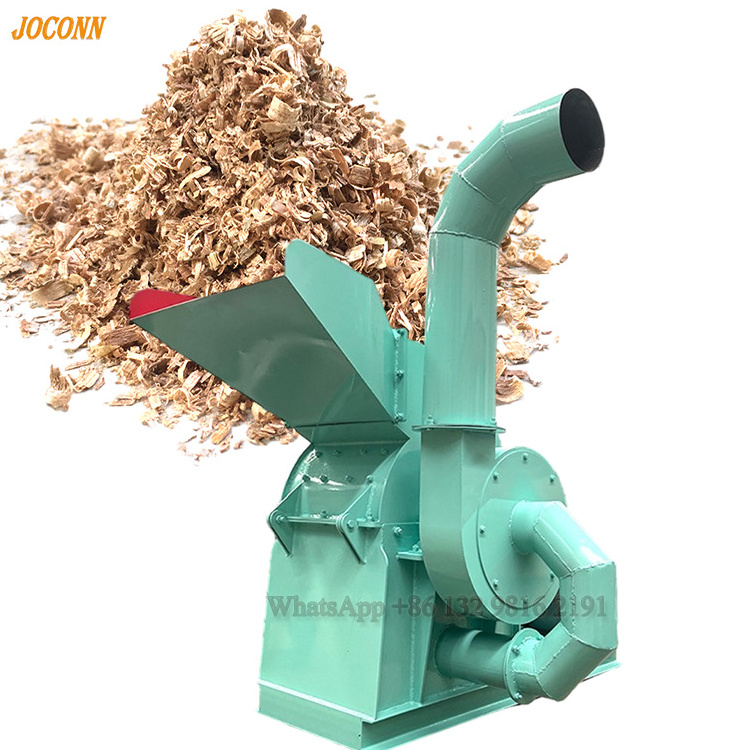

The sawdust shredding making machine
is a multifunctional and efficient wood crusher that can crush different types of wood materials, such as
wood chips, bark, wood waste, coconut shells, coirs,straw, corn cobs
, etc. Wooden hammer mills ensure that wooden materials are finely ground for further processing. Products can be used for biofuels, animal bedding and composting, among other uses. Wooden hammer mills can be customized to meet specific requirements.
|
Model
|
Power(kw)
|
Capacity
(kg/h)
|
The number of hammer pieces(pcs)
|
The size of hammer pieces(mm)
|
Packing Size(mm)
|
Weight
(kg)
|
|
JCFS-500
|
22
|
700-1000
|
30
|
180*60*8
|
2100*1260*980
|
540
|
|
JCFS-600
|
30
|
1200-1500
|
40
|
180*60*8
|
2000*1400*1200
|
650
|
|
JCFS-800
|
45
|
2000-2500
|
60
|
180*60*8
|
2200*1500*1250
|
820
|
|
JCFS-1000
|
75
|
3000-3500
|
70
|
180*60*8
|
2200*1650*1300
|
1300
|
|
JCFS-1300
|
45+45
|
4000-5000
|
90
|
230*60*8
|
2300*1700*1400
|
2400
|
|
JCFS-1500
|
55+55
|
5000-6000
|
100
|
230*60*8
|
2300*1750*1420
|
2800
|
JCFS-500
JCFS-500
JCFS-600
JCFS-600
JCFS-800
JCFS-800
Extra large and extra wide feed opening
Higher operating efficiency, safe and convenient feeding and discharging, multi-person operation, higher efficiency
Power can be motor or diesel engine for free choice
After forging, annealing heat treatment, tempering and heat preservation, fine grinding on line cutting
Extra wide cast steel wear-resistant lining plate
Effectively protect the body, long-lasting and durable
Forced feeding system
The sawdust machine can be customized with a forced feeding system to improve work efficiency.
Conveyor belt
The conveyor belt can transport materials and force them to be pressed smoothly into the crushing chamber, which improves work efficiency and safety factor.
cyclone dust collector
cyclone dust collector can separate materials and gases, reduce mechanical energy consumption, and improve the production efficiency of mechanical equipment.
Optional dual feed inlets
The wooden hammer crusher
is available in a dual-feed configuration for crushing logs and branches into sawdust.
The grinding fineness is determined by the size of the sieve holes, and the sieve can be appropriately selected according to the feed. This product can be used for crushing a variety of crops.
