Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Hetai
-
Model Number:
-
SJ52BLY01
-
Torque:
-
0.15 N.m
-
Product Name:
-
Servo Motor
-
Rated Voltage:
-
48V
-
Rated Torque:
-
0.15N.M
-
Maximum Torque:
-
0.3N.M
-
Rated Speed:
-
3800RPM
-
Rated Current:
-
1.8A
-
Rated Power:
-
60W
-
Resistance Line-Line:
-
1.6Ω
-
Environment Requirement:
-
-20℃~+55℃
-
Insulation Class:
-
F
Quick Details
-
Speed(RPM):
-
3800 RPM
-
Continuous Current(A):
-
1.8 A
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Hetai
-
Model Number:
-
SJ52BLY01
-
Torque:
-
0.15 N.m
-
Product Name:
-
Servo Motor
-
Rated Voltage:
-
48V
-
Rated Torque:
-
0.15N.M
-
Maximum Torque:
-
0.3N.M
-
Rated Speed:
-
3800RPM
-
Rated Current:
-
1.8A
-
Rated Power:
-
60W
-
Resistance Line-Line:
-
1.6Ω
-
Environment Requirement:
-
-20℃~+55℃
-
Insulation Class:
-
F
Product Description
SJ52BLY01

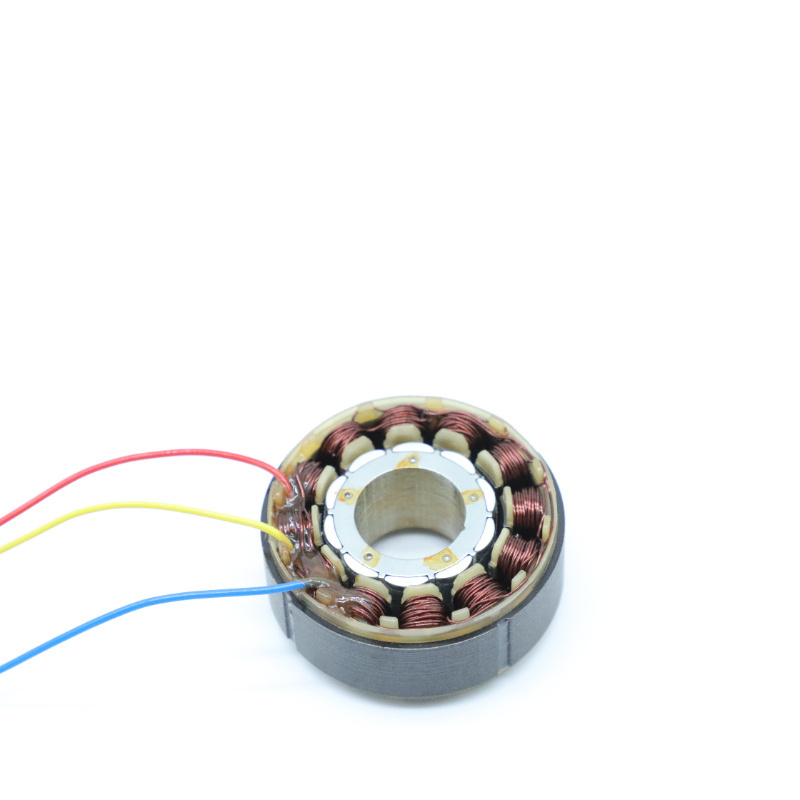

48V Frameless Servo Motor
Factory Supply Stable Performance
Hetai hot selling 30mm SJ52BLY01 small size high performance frameless servo motor high torque brushless servo motor
Specification
|
Rated Voltage（V)
|
48
|
|
|
|
Rated Power（W）
|
60
|
|
|
|
Model
|
SJ52BLY01
|
|
|
|
Rated Current（Amps）
|
1.8
|
|
|
|
Rated Speed（RPM）
|
3800
|
|
|
|
Rated Torque（N.M）
|
0.15
|
|
|
|
Maximum Torque（N.M）
|
0.3
|
|
|
|
Torque Constant（N.M/Amps）
|
0.066
|
|
|
|
Resistance Line-line（Ω）
|
1.6
|
|
|
|
Inductance Line-line（mH）
|
1.3
|
|
|
