- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380/customizable
-
Power:
-
customizable
-
Dimension(L*W*H):
-
8.6*2*1.7m
-
Weight (KG):
-
9500
-
place of origin:
-
China
-
branding:
-
changsheng
-
name:
-
Wood Crusher
-
Multifunctional:
-
3 Years
-
Feed caliber:
-
Provided
-
Raw material:
-
1000-500mm
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
changsheng
-
Marketing Type:
-
New Product 2023, New Product 2024
-
Voltage:
-
380/customizable
-
Power:
-
customizable
-
Dimension(L*W*H):
-
8.6*2*1.7m
-
Weight (KG):
-
9500
-
place of origin:
-
China
-
branding:
-
changsheng
-
name:
-
Wood Crusher
-
Multifunctional:
-
3 Years
-
Feed caliber:
-
Provided
-
Raw material:
-
1000-500mm
Product Overview

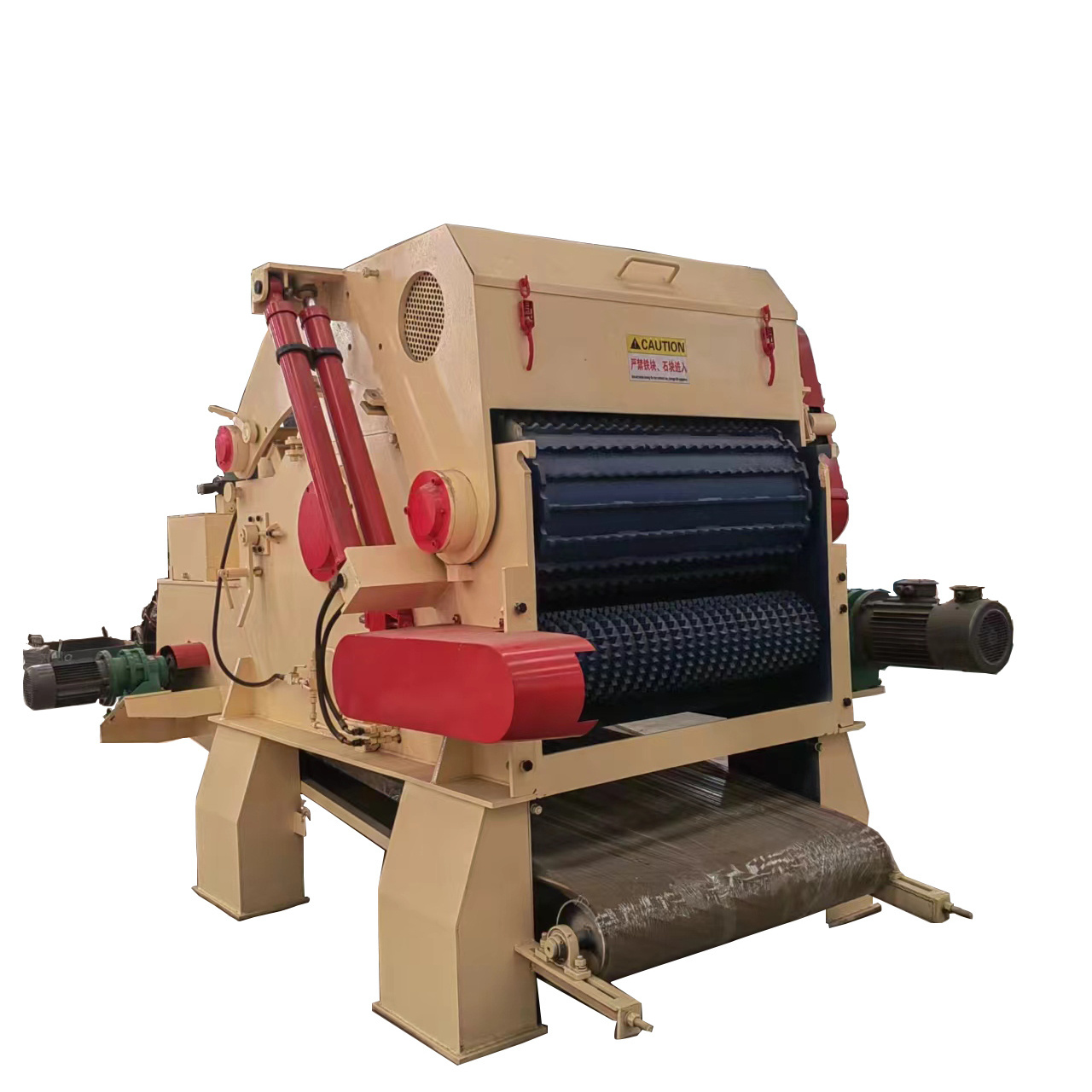

Multifunctional crusher
The large crusher produced by our company has outstanding function, convenient operation and repair, and is a green and low-carbon high-efficiency equipment. Scope of application: wood roots, tree stumps, plates, construction waste.
FEATURES AT A GLANCE
Reasonable design of hammer head High working efficiency
Hammer crusher adopts high manganese steel and undergoes strict heat treatment process, so as to obtain a single austenite organization, the service life is longer than other crushing equipments, and the production efficiency is better than general equipments.
The crushing method of hammer crusher is energy driven hammer head to break, followed by the material struck by the hammer head high-speed collision impact plate, and then the impact plate of the wood and then collide with the material struck by the hammer head, there is a total of triple crushing strength, but the consumption of just drive the hammer head of those who drive the energy, so the hammer crusher can be energy-saving and consumption reduction.
Stable operation and large crushing ratio
Hammer crusher is designed with beautiful shape and compact structure, and each component has been strictly screened, which can realize normal operation for a long time, and the crushing ratio is large, and the granularity of the product is even, usually in the form of cubic shape, which will not appear the phenomenon of over-crushing.
Hammer crusher series products are suitable for crushing a variety of medium hardness and brittle materials, such as limestone, coal, salt, white Asia, gypsum, alum, bricks, tiles, gangue, etc. The compressive strength of the crushed materials does not exceed 150 MPa, and can be used in timber, cement, coal, power generation, building materials, chemical industry, metallurgy, and composite fertilizer and other industries
PRODUCT SPECIFICATIONS
|
1
|
model number
|
1000-500
|
|
2
|
Power
|
110KW
|
|
3
|
yield
|
8T
|
|
4
|
size
|
10-5T
|
|
5
|
Feed caliber
|
1000-500mm
|
|
6
|
Caliber of material discharged
|
12mm
|
|
7
|
size
|
8.6*2*1.7m
|
FAQ
1：
The crusher does not rotate after starting: first check whether the motor is working properly, if the motor is normal, it may be the belt is loose or broken, need to be checked and replaced in a timely manner
2：
Crusher noise is too loud: may be the internal parts of the machine is damaged or loose, need to be repaired or replaced
3：
Crusher feed port clogging: If the feed port is clogged, you need to stop the machine, cut off the power supply, clean up the residue in the feed port, and then restart.
