Quick Details
-
Inverter:
-
Delta/Made in China
-
Switch:
-
Schneider/Made in China
-
Product Keywords:
-
paper cup printing and punching machine
Quick Details
-
Place of Origin:
-
China
-
Machine Color:
-
According to customers' requirement
-
Motor:
-
Siemens/Made in China
-
Inverter:
-
Delta/Made in China
-
Switch:
-
Schneider/Made in China
-
Product Keywords:
-
paper cup printing and punching machine

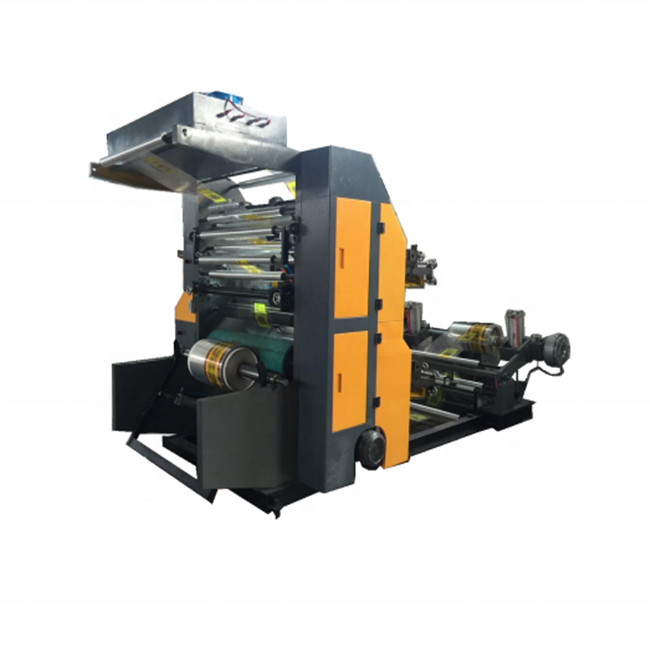

High-speed Six-color Flexo Printing Machine
Characteristics:
This flexible printing machine is suitable for printing such packing materials as polyethylene, polypropylene plastic bag, cellophane and roll paper, etc. And it is a kind of ideal flexo printing equipment for producing paper packing bag for food, supermarket carry bag ,vest bag and clothes bag, etc.
1.Easy operation, flexible starting, accurate color register.
2.The meter counter can set printing quantity according to the requirements Stop the machine automatically at the set quantity or when the material is cut off.
3.Lift and lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting.
4.The printing ink is spread by the knurled cylinder with even ink color.
5.Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.360 continuous and adjustable register device.
7.The imported frequency control of motor speed adapts to different printing speeds.
8.There are Inching/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Main Technical Variables:
|
Model |
YT-B6600 |
YT-B6800 |
YT-B61000 |
|
Printing color |
6 colors |
6 colors |
6 colors |
|
Thickness of Plate |
2.28mm |
2.28mm |
2.28mm |
|
Max Width of Material |
600mm |
800mm |
1000mm |
|
Max.Width of Printing |
560mm |
760mm |
960mm |
|
Length of Printing |
220-1000mm |
220-1000mm |
220-1000mm |
|
Machinery mechanical speed |
90m/min |
90m/min |
90m/min |
|
Max.Speed of Material Printing |
70-80m/min |
70-80m/min |
70-80m/min |
|
Machine weight |
4000kg |
4200kg |
4400kg |
|
Machine dimension( L × W × H ) |
4.5× 1.8 × 2.8m |
4.5× 2.0 × 2.8m |
4.5× 2.2 × 2.8m |
|
Model |
YT-B61200 |
YT-B61400 |
YT-B61600 |
|
Printing color |
6 colors |
6 colors |
6 colors |
|
Thickness of Plate |
2.28mm |
2.28mm |
2.28mm |
|
Max Width of Material |
1200mm |
1400mm |
1600mm |
|
Max.Width of Printing |
1160mm |
1360mm |
1560mm |
|
Length of Printing |
220-1000mm |
220-1000mm |
220-1000mm |
|
Machinery mechanical speed |
90m/min |
90m/min |
90m/min |
|
Max.Speed of Material Printing |
70-80m/min |
70-80m/min |
70-80m/min |
|
Machine weight |
4600kg |
4800kg |
5000kg |
|
Machine dimension( L × W × H ) |
4.5× 2.4 × 2.8m |
4.5× 2.6 × 2.8m |
4.5× 2.8 × 2.8m |
To customers:
If you placed order, please check the price with our side again. Different model machine, price will be different. The price we showed on the website is only for your reference!
