Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Taikang
-
Year:
-
2023
-
Power (kW):
-
5.5
-
Weight (KG):
-
1500
-
Power:
-
Hydraulic
-
Weight:
-
2500Kg
-
Application:
-
Round Pipe Bending
-
Function:
-
Mandrel Pipe Curving Machine
-
Control:
-
PLC
-
PLC:
-
Japan Mitsubishi
-
Processing Types:
-
Cold Forming
-
Applied shape:
-
Round Square
-
Servo motor:
-
Japan Mustubishi
-
Available bend profiles:
-
Square Rectange Pipe Tube
Quick Details
-
Bending Radius (mm):
-
25 - 300
-
Max. Bending Angle (Deg):
-
190
-
Bending Precision (Deg):
-
0.1
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Taikang
-
Year:
-
2023
-
Power (kW):
-
5.5
-
Weight (KG):
-
1500
-
Power:
-
Hydraulic
-
Weight:
-
2500Kg
-
Application:
-
Round Pipe Bending
-
Function:
-
Mandrel Pipe Curving Machine
-
Control:
-
PLC
-
PLC:
-
Japan Mitsubishi
-
Processing Types:
-
Cold Forming
-
Applied shape:
-
Round Square
-
Servo motor:
-
Japan Mustubishi
-
Available bend profiles:
-
Square Rectange Pipe Tube
Product Application

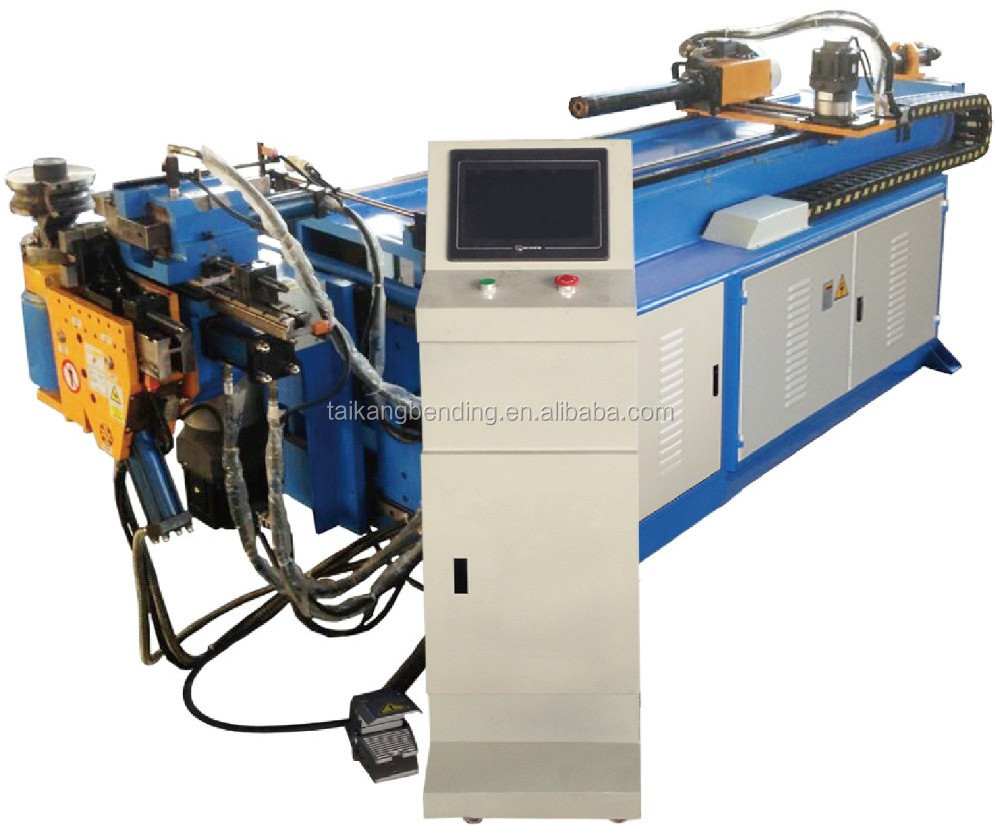

DW63 CNC-2A-1S Hydraulic CNC Pipe Bending Machine Rebar bending machine Exhaust pipe bending machine CNC tube bender is full automatic type for bending three dimensional complicated workpiece, which can input YBC or XYZ data into CNC control system, and machine make the tube bend accordingly. Bending by hydraulic cylinder , rotation and feeding by servomotor. Maximum 125 sets of program can be stored and maximum 33 bends for each program. 3D complicated workpiece can be finished once. DW63 CNC-2A-1S Pipe Bending Machine was widely used in mass production of standardized products, such as Automobile spare parts (brake line, bumper bar, silencer and etc.), bike and motocycle, fitness equipment, sanitary equipment, vent-pipe, petroleum/water pipeline, shipbuilding, chemical Industries and etc.
DW63 CNC-2A-1S Hydraulic CNC Pipe Bending Machine Rebar bending machine Exhaust pipe bending machine CNC tube bender
Main Features
1) Interactive PLC touch screen offers easy access to auto and manual operating modes.
3) Standard clockwise bending direction.
4) Fully hydraulic clamping on clamp die and pressure die.
5) Drop-way hydraulic clamping.
6) Direct acting hydraulic pressure die with adjustable flow valve.
7) Maximum 125 sets of program storage,Maximum 32 bends for each program.
8) Independent programmable speeds for Y, B, and C axes.
9) Programmable bending material springback settings for each bend angle.
10)Automatic release of pipe prior to final bend.
11)Bending Axis-Driven by hydraulic cylinder. Feeding Axis-Driven by Servo Motor. Rotating Axis-Driven by Servo Motor.
12)Suitable for steel, stainless steel, aluminum, titanium, copper and bronze.
13)Foot Pedal Cycle start.
14) Air Cooling System.
15)Power: As required (3 phase 220V or 380V or 415V, 440V and etc..)
S tandard accessorie s .
1) One pair of standard mould (wheel mould, clamping mould and sliding plate mould)
2) One set of common tools
S pecial accessories for option .
Auxiliary pushing device, core rod, wrinkle-proof mould, shaped mould, forming mould
Tailor made mould for shape like square tube, elliptical tube, plum blossom-shape tube, shaped tube, U-steel, angle bar, I-steel and flat steel, etc.
DW63 CNC-2A-1S Hydraulic CNC Pipe Bending Machine Rebar bending machine Exhaust pipe bending machine CNC tube bender
Machine Parts
Name: Electromagnetic Valve
Brand: 7 Ocean
Original: Taiwan China
Domestic famous electromagnetic valve, accurate flow control and high reliability
Electrical Parts
Name:
PLC/electric relay
Brand:
: Japan Mitsubishi/ Schneider
Original:
Japan/Germany
Worldwide famous brand, high reliability
Machine Parts
Name:
Servo motor
Brand:
: Japan Mitsubishi
Original
: Japan
Worldwide famous brand, high reliability
Electrical Parts.
Name:
Sensor/anti-pinch limit switch
Brand:
FoTEK/ Tmazta
Original:
Taiwan China
Worldwide famous brand, high reliability, more safety
DW63 CNC-2A-1S Hydraulic CNC Pipe Bending Machine Rebar bending machine Exhaust pipe bending machine CNC tube bender
Pre-Sales Service
* Inquiry and consulting support.
*Provide technical suggestion and package solution
* Sample testing support.
*Reply within 24 hours
*Provide progress information
* View our Factory.
After-Sales Service
* Test the machine before shipment
* Provide technical training relate to use the machine.
* Engineers available to service machinery overseas.
* Free spare parts within one-year warranty period
* Reasonable price for spare parts after warranty
* Provide long-term technical assistance.
DW63 CNC-2A-1S Hydraulic CNC Pipe Bending Machine Rebar bending machine Exhaust pipe bending machine CNC tube bender
A bout our company.
Suzhou TaiKang Machinery Co.,Ltd. Founded 2015.One of top manufacturer in China.Specializing in design and manufacturermachines for pipe process equipment and
tailor made solutions for the global supplier.
Our business philosophy is Client First,Quality First and Honesty First. We sincerely welcome worldwide potential buyers and overseas distributors to contact and visit us for cooperation.
What kind of pipe materials can bend ?
Carbon Steel ,Stainless steel ,Aluminum ,Copper pipes, tubes.
How to choose pipe/tube bending machine
According following information to choose type:
1)Pipe/tube materials
2)Max. outside diameter of the pipe/tube
3)Wall thickness range of the pipe/tube
4)Max bending radius (general 1.5*OD)
5)Bending drawing or samples
Do you provide training to operating pipe bending machine?
1)Will provide operating video and manual with machine.
2)Also welcome to our factory for training, we will arrange everything at our factory.
Any optional functions for pipe bending machine
1)Servo motor for axis: 2axis(standard for CNC type),3axis,4axis,5axis,6axis..
2)Control System: PLC(strandard) or IPC
3)Bending mould layer: single layer(standard) ,double layers,triple layers and more.
What about your machine main component
1) PLC: Japan Mitsubishi
2) Servo motor: Japan Mitsubishi
3)Hydraulic system: Taiwan 7 Ocean
4)Main Motor: Siemens
5)Electric parts: Schneider
What about your machine warranty?
One year warranty after machine reached customer's workshop.
And use famous brand components for long working lifespan.
What certificate for pipe bending machine
We have ISO certificate for our factory and CE Certification for our machine.
What delivery time for pipe bend machine
30 working days after received advanced payment.
Payment term for pipe bending machine
Alibaba.com Trade Assurance accepted. T/T and LC accepted.
