Quick Details
-
Brand Name:
-
for HUAWEI
-
Use:
-
FTTH
-
Color:
-
White
-
Material:
-
Plastic
-
Power supply:
-
12V
-
Ports:
-
4 Ports
-
Dimensions:
-
220mm*160mm*32mm
-
XPON:
-
GPON
-
Language:
-
English$Chinese
-
Weight:
-
0.5kg
-
Brand:
-
Huawei Original
Quick Details
-
Type:
-
Enterprise Router
-
Model Number:
-
HG8040
-
Place of Origin:
-
Henan China
-
Brand Name:
-
for HUAWEI
-
Use:
-
FTTH
-
Color:
-
White
-
Material:
-
Plastic
-
Power supply:
-
12V
-
Ports:
-
4 Ports
-
Dimensions:
-
220mm*160mm*32mm
-
XPON:
-
GPON
-
Language:
-
English$Chinese
-
Weight:
-
0.5kg
-
Brand:
-
Huawei Original
Product Description
Product Parameters

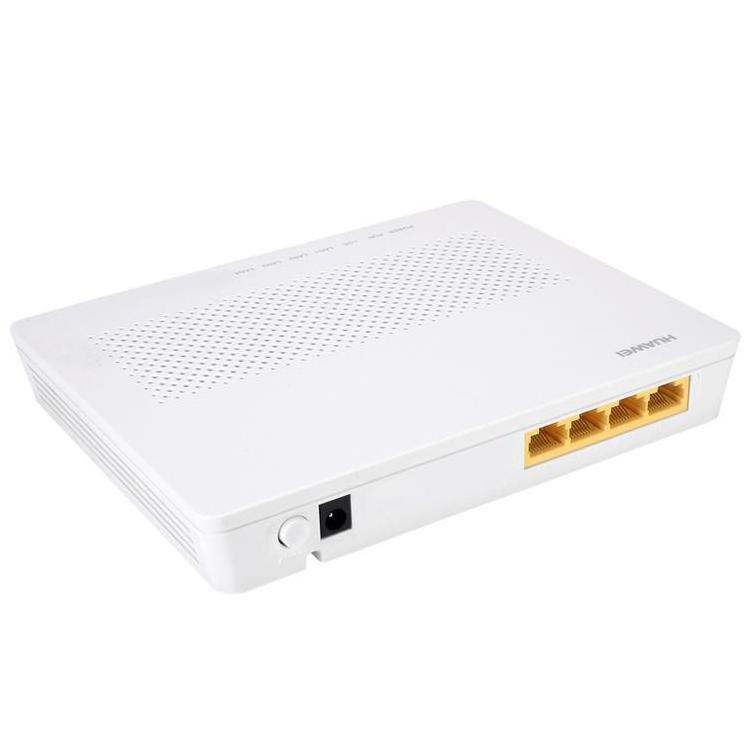

| Huawei GPON ONU HG8040F | |
| Dimensions | (W x D x H):220 mm x 160 mm x 32 mm |
| Model | HG8040F |
| Out Port contains | 4FE |
| LAN | 1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface |
| Firmware | English |
| weight | 234.5g |
| Fiber port | 1 GPON/EPON/XPON interface, ingle-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps |
| Wavelength | Tx 1310nm, Rx 1490nm |
| Fiber interface | SC/FC-UPC/APC Dual mode/Singal mode |
| RX sensitivity | >-28dBm (1490nm) |
| DC power | 12V 1.0A, external AC-DC power adapter |
| Button | Reset, power |
| Operation | Working temperature: -5℃~ +50℃ working humidity:5-95%(non-condensation) |
| Storage | Storage temperature: -5℃~ +50℃ storage humidity: 5-95%(non-condensation) |
