Quick Details
-
Product Name:
-

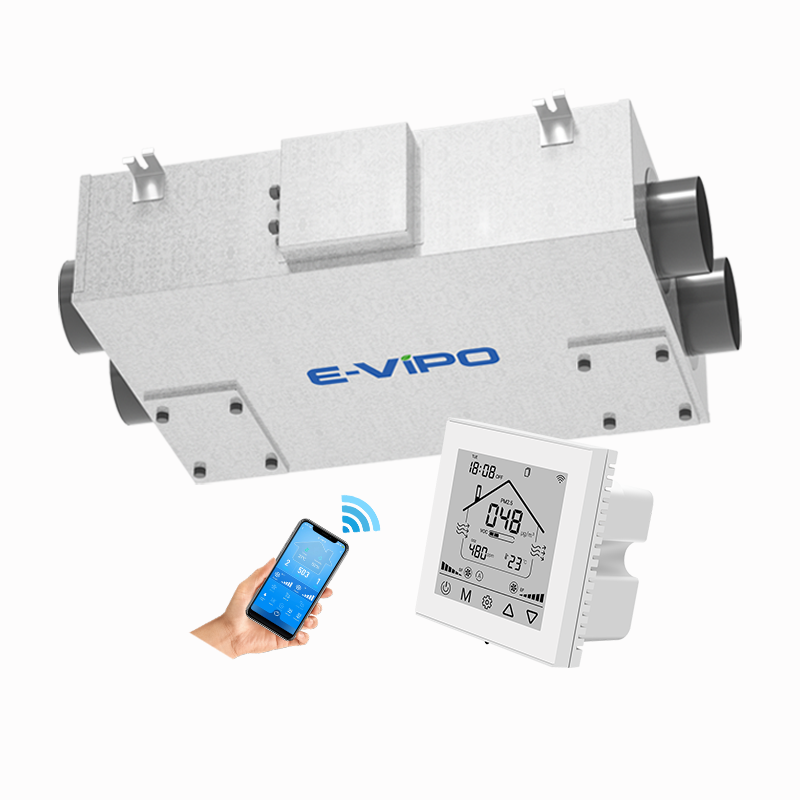

Energy Recovery Ventilator ERV HRV Heat Recovery Ventilation
-
Airflows @100pa:
-
150m3/h - 2000m3/h
-
Supply Filter:
-
G4 Standard ; F8/HEPA Optional
-
Extract Filter:
-
G4
-
Heat Exchanger Type:
-
Cross-flow
-
Internal Insulation Material:
-
Polyethylene Foam
-
Casing Material:
-
Aluminium Zinc casing material
-
Feature:
-
Easy Installation
-
Function:
-
Supply and exhaust air with heat recovery
-
Other Functions:
-
WiFi/APP Remote Control
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
E-VIPO
-
Model Number:
-
SY Series
-
Product Name:
-
Energy Recovery Ventilator ERV HRV Heat Recovery Ventilation
-
Airflows @100pa:
-
150m3/h - 2000m3/h
-
Supply Filter:
-
G4 Standard ; F8/HEPA Optional
-
Extract Filter:
-
G4
-
Heat Exchanger Type:
-
Cross-flow
-
Internal Insulation Material:
-
Polyethylene Foam
-
Casing Material:
-
Aluminium Zinc casing material
-
Feature:
-
Easy Installation
-
Function:
-
Supply and exhaust air with heat recovery
-
Other Functions:
-
WiFi/APP Remote Control
Main Features
▶ Internal insulation for heat and sound
▶ Aluminium Zinc casing material
▶ G4 extract filter and G4 supply filter
▶ F8 / HEPA supply filter option available
▶ WiFi Control - APP for Android / iOS if needed with smart control
▶ Aluminium Zinc casing material
▶ G4 extract filter and G4 supply filter
▶ F8 / HEPA supply filter option available
▶ WiFi Control - APP for Android / iOS if needed with smart control
|
Model
|
Airflows
|
Supply Filters
|
Bypass
|
Air Duct Diameter
|
|
SY150R
|
150m3/h
|
G4 (Standard) ;
F8 | HEPA (Optional)
|
/
|
Φ125mm
|
|
SY250R
|
250m3/h
|
G4 (Standard) ; F8 | HEPA (Optional)
|
/
|
Φ150mm
|
|
SY350R
|
350m3/h
|
G4 (Standard) ; F8 | HEPA (Optional)
|
/
|
Φ150mm
|
|
SY500R
|
500m3/h
|
G4 (Standard) ; F8 | HEPA (Optional)
|
/
|
Φ200mm
|
|
SY650R
|
650m3/h
|
G4 (Standard) ; F8 | HEPA (Optional)
|
/
|
Φ200mm
|
|
SY800R
|
800m3/h
|
G4 (Standard) ; F8 | HEPA (Optional)
|
/
|
200*300mm
|
|
SY1000R
|
1000m3/h
|
G4 (Standard) ; F8 | HEPA (Optional)
|
/
|
230*270mm
|
|
SY1200R
|
1200m3/h
|
G4 (Standard) ; F8 | HEPA (Optional)
|
/
|
230*270mm
|
|
SY1500R
|
1500m3/h
|
G4 (Standard) ; F8 | HEPA (Optional)
|
/
|
280*320mm
|
|
SY2000R
|
2000m3/h
|
G4 (Standard) ; F8 | HEPA (Optional)
|
/
|
300*370mm
|
|
DD150R
|
150m3/h
|
G4 (Standard) ; F8 | HEPA (Optional)
|
Bypass Function
|
Φ125mm
|
|
DD250R
|
250m3/h
|
G4 (Standard) ; F8 | HEPA (Optional)
|
Bypass Function
|
Φ150mm
|
|
DD350R
|
350m3/h
|
G4 (Standard) ; F8 | HEPA (Optional)
|
Bypass Function
|
Φ150mm
|
|
DD500R
|
500m3/h
|
G4 (Standard) ; F8 | HEPA (Optional)
|
Bypass Function
|
Φ200mm
|
|
DD650R
|
650m3/h
|
G4 (Standard) ; F8 | HEPA (Optional)
|
Bypass Function
|
Φ200mm
|
|
DD800R
|
800m3/h
|
G4 (Standard) ; F8 | HEPA (Optional)
|
Bypass Function
|
200*300mm
|
|
DD1000R
|
10000m3/h
|
G4 (Standard) ; F8 | HEPA (Optional)
|
Bypass Function
|
230*270mm
|
|
DD1200R
|
1200m3/h
|
G4 (Standard) ; F8 | HEPA (Optional)
|
Bypass Function
|
230*270mm
|
|
DD1500R
|
1500m3/h
|
G4 (Standard) ; F8 | HEPA (Optional)
|
Bypass Function
|
280*320mm
|
|
DD2000R
|
2000m3/h
|
G4 (Standard) ; F8 | HEPA (Optional)
|
Bypass Function
|
300*370mm
|
Bypass Function
DD Series models
are equipped with a bypass damper for summer bypass (free-cooling). Without exchanging the heat at the heat exchanger, the fresh air with comfortable temperature level from outdoor can be delivered into the room directly and the hot air from indoor can be exhausted to the outdoor directly.
Control System
▶
Several Control panel for option.
▶
Different panel with different size, functions.
HOT SELL MODEL
Mainly Design for European Counties, Residential House | Villa | Apartment | Cafe | Office, Etc.
