Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Dimension(Long * Breadth * High):
-
2295*980*2100
-
Model:
-
W6FD06
-
Product name:
-
Telescopic Loader
-
Color:
-
Yellow,green
-
Max. reach(boom extended):
-
2750mm
-
Max. reach(boom retracted):
-
2270mm
-
Working oil flow:
-
16.5L/min x 2
-
Tracking oil flow:
-
50L/min
-
Oil model(mineral oil):
-
L-HL46
-
Engine brand:
-
Perkins 403D-07
-
Number of cylinder:
-
4
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Free spare parts
-
Certification:
-
CE ISO
Quick Details
-
Engine Brand:
-
HINO
-
Power:
-
OTHER
-
Brand Name:
-
NEWLAND
-
Place of Origin:
-
Jiangsu, China
-
Dimension(Long * Breadth * High):
-
2295*980*2100
-
Model:
-
W6FD06
-
Product name:
-
Telescopic Loader
-
Color:
-
Yellow,green
-
Max. reach(boom extended):
-
2750mm
-
Max. reach(boom retracted):
-
2270mm
-
Working oil flow:
-
16.5L/min x 2
-
Tracking oil flow:
-
50L/min
-
Oil model(mineral oil):
-
L-HL46
-
Engine brand:
-
Perkins 403D-07
-
Number of cylinder:
-
4
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Free spare parts
-
Certification:
-
CE ISO
Avant NEWLAND brand China small wheel loader for sale
A.product information
1.Technical parameters for mini wheel loader W6FD08
| mini wheel loader model | W6FD06 | W6FD08 |
| engine brand | Perkins | Perkins or Kubota |
| rated load | 500kg | 850kg |
| Max.load | 800kg | 1000kg |
| bucket capacity | 300l | 450l |
| weight | 1100kg | 1600kg |
| standard tire | 23*8.5-12 | 26*12-12 |
| pressure | 190bar | 190baR |
| numbers of cylinder | 4 | 4 |
| cooling system | water cooling | water cooling |
| rated power | 12.5kw | 24.5kw |
| overalll dimensions | 2195*980*2100mm | 2600*1240*2320mm |
2.Drawing for mini compact wheel loader
3.Product Description
Compact design, hydrostatic four wheel drive.
With CE certificate
EURO III engine.
Telescopic arm.
Self levering.
Differential lock.
Boom floating.
Four post ROPS.
Standard quick coupling plate.
Pressure test connection on front chassis.
Rotating warning light on top.
Sound alarm for maintenance and warnings

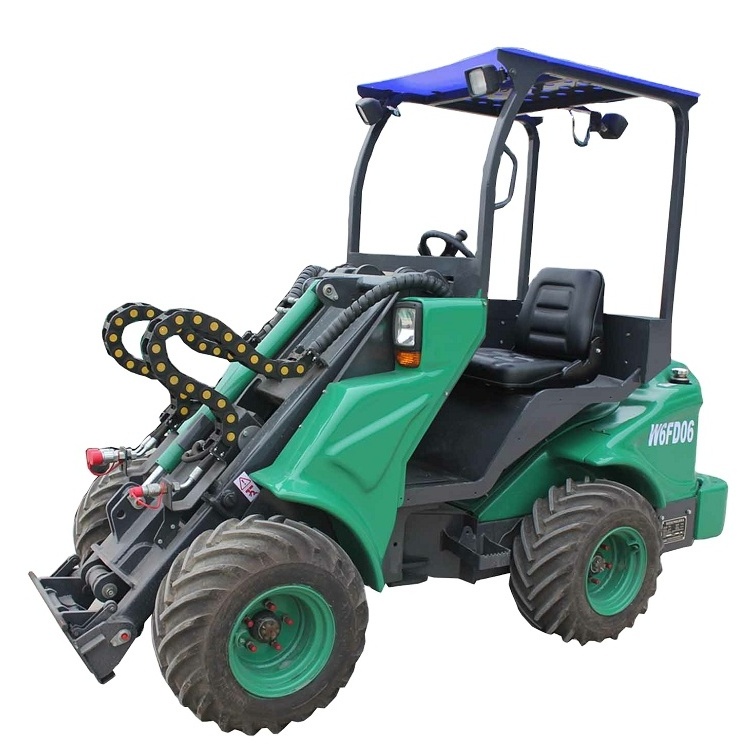

4.Detail image for W6FD06 mini wheel loader
5.Application Field:
mini wheel loader with the narrow machine body,can work at the narrow space like the warehouse,parkings,port,boat deck.
