Quick Details
-
Filling Accuracy:
-
≥99%
-
Voltage:
-
110/220/380V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MIC
-
Dimension(L*W*H):
-
1800*1000*1500mm
-
Weight:
-
650 KG
-
Model:
-
MIC-FC-N25
-
Filling material:
-
Nail gel polish
-
Filling range:
-
1-25ml
-
Filling speed:
-
20-30 bottles/min
-
Filling accuracy:
-
+-0.1g
-
Filling nozzles:
-
1 or 2
-
Bottle type:
-
Glass or plastic bottle
-
Air pressure:
-
0.6-0.8Mpa
-
Filling type:
-
Peristaltic pump
-
Power:
-
2KW
Quick Details
-
Machinery Capacity:
-
2000BPH
-
Packaging Material:
-
Plastic, Metal, Glass
-
Filling Material:
-
Nail polish, Gel polish
-
Filling Accuracy:
-
≥99%
-
Voltage:
-
110/220/380V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MIC
-
Dimension(L*W*H):
-
1800*1000*1500mm
-
Weight:
-
650 KG
-
Model:
-
MIC-FC-N25
-
Filling material:
-
Nail gel polish
-
Filling range:
-
1-25ml
-
Filling speed:
-
20-30 bottles/min
-
Filling accuracy:
-
+-0.1g
-
Filling nozzles:
-
1 or 2
-
Bottle type:
-
Glass or plastic bottle
-
Air pressure:
-
0.6-0.8Mpa
-
Filling type:
-
Peristaltic pump
-
Power:
-
2KW

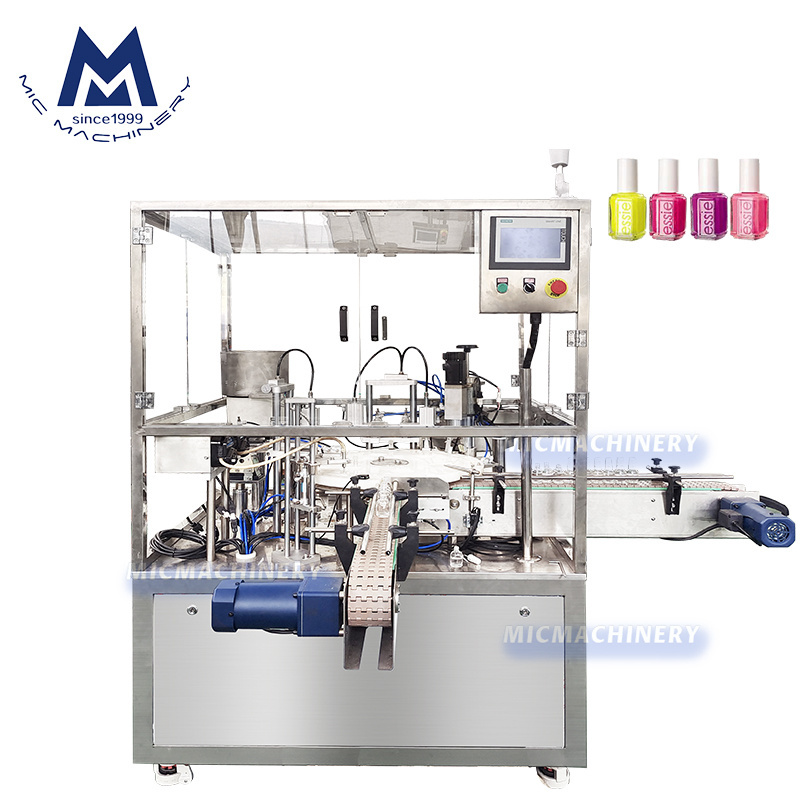

This machine is mainly available to fill nail glue into various round and flat glass and plastic bottles with the filling range from 5-20ml. High precision cam provides a regular plate to position, inner, brush and cap; accelerating cam makes capping heads going up and down; constant turning arm screws caps; peristaltic pump and pressure tank filling time measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine with advantage of high position.
|
Voltage
|
220V/50Hz
|
|
Power
|
2KW
|
|
Air Pressure
|
0.4-0.8Mpa
|
|
Air consumption
|
30dm³/min
|
|
Production Capacity
|
20-30 bottles per minute
|
|
Filling Error
|
±1%
|
|
Dimensions
|
1800*1000*1500mm
|
|
Weight
|
650KG
|
Whole view for machine line
The filling capping machine can connect with turntable and labeling machine to complete a whole production line.
Filling nozzles with peristaltic pumps
Peristaltic pump or piston pump filling (depends on products density), measuring precision, convenient manipulation with anti-drip system.
Vibrator for nail polish brush
This vibrator is used to automatically load the brush into the nail polish.
Vibrator for outside cap
Use mechanical arm to load cap on the bottle, which is stable and precise.
Cap screwing head
When the capping is good
, the bottle and the cap are relatively stationary, and the clutch is released,
which can avoid the injury of the bottle and achieve a high capping qualification rate.
