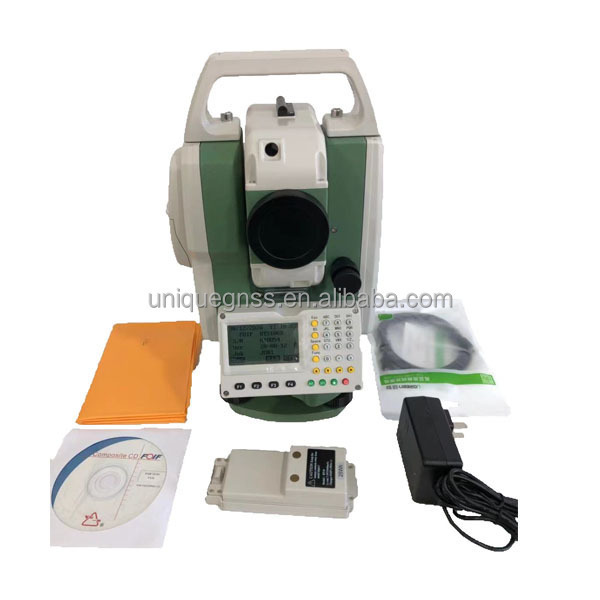

High Precision FOIF RTS102 total station survey equipment
High Precision FOIF RTS102 total station survey equipment
High Precision FOIF RTS102 total station survey equipment
High Precision FOIF RTS102 total station survey equipment
High Precision FOIF RTS102 total station survey equipment
High Precision FOIF RTS102 total station survey equipment
High Precision FOIF RTS102 total station survey equipment
High Precision FOIF RTS102 total station survey equipment

High Precision FOIF RTS102 total station survey equipment

FOB Reference Price: Get Latest Price
≥1 Pieces
US $1650
≥2 Pieces
US $1500
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
RTS102R8
Model:
RTS102
Image:
Erect
reflectorless distance:
800m
CPU:
32 Bit
menory:
120000 point, support SD card(max 16G)
display:
LCD, 6lines x20 characters(96*160dots)
accuracy:
2"
field of view:
1°30'
single prism:
2.0 to 5000m

Quick Details

Warranty:
1 year
Place of Origin:
Tianjin, China
Brand Name:
FOIF
Model Number:
RTS102R8
Model:
RTS102
Image:
Erect
reflectorless distance:
800m
CPU:
32 Bit
menory:
120000 point, support SD card(max 16G)
display:
LCD, 6lines x20 characters(96*160dots)
accuracy:
2"
field of view:
1°30'
single prism:
2.0 to 5000m
Features
● Alphanumeric keyboard
● Reflectorless measuring diatance:800m
● Bluetooth cable-free connection(Factory Optional)
● 120000 points and 40 jobs can be saved
● Can be operated with a data collector, or other third party software is available
Details Images
PRODUCT SPECIFICATIONS
Model
RTS102R8
Technical data
Telescope
Erect
Objective aperture
φ45mm
Magnification
30X
Field of view
1°30’
Shortest focus distance
1.0m
Angle measurement
Reading system
Absolute encoder
Angle unit
360°/400gon/6400mil, selectable
Display resolution
1”/5”/10”(or 0.2mgon /1 mgon /2mgon)
Accuracy
2"
Distance measurement
Laser class(IEC 60825-1)
Reflectorless
Class 3A(3R)
Reflective sheet/RP60
Class 3A(3R)
Prism
Class 1
Measurement range
Reflectorless
2.0 to 800m
Single prism
2.0 to 5000m
Accuracy
Prism
2mm+2ppm
Reflective sheet/ RP60
3mm+2ppm
Reflectorless
3mm+2ppm
Measuring time(prism)
Tracking
0.4 sec
Fast
0.6 sec
Fine
1.0 sec
Display resolution(m/inch selectable)
0.2mm
Temperature input range
-40℃ to +60℃ (1℃ steps)
Pressure input range
500hPa to 1500hPa (1hPa steps)
Prism constant correction
-99.9mm to +99.9mm
Compensator
Dual-axis
Range
±3'
Setting accuracy
1"
Level vial sensitivity
Plate level vial
30"/2mm
Circular level vial
8"/2mm
Laser plummet(Standard)
Accuracy
±1mm/1.5m
Laser class
Class 2/IEC60825-1
Laser spot brightness
Adjustable
Laser wave length
635nm
Optical plummet (Factory Optional)
Accuracy
±0.8mm/1.5m
Erect
Magnification/ Field of view
3x/4°
Focus range
0.5m to∞
Power
Battery
3400mAh Li-ion Rechargeable
Output voltage
7.4VDC
Continuous operation time (angle measurement)
Approx. 24 hours (At +20℃)
Charger
FDJ6-LI
Chargering time (at+20)
Approx.4hours
Application programs
Data collection/Stake out/Resection/REM/MLM/Road
AREA/Point to line/Z coordinate/OFF set/Arc staking out
Others
Display
LCD, 6 lines *20characters (96*160dots)
CPU
32Bit
Memory
120000 points, support SD card (max. 16G)
Keyboard
Alphanumerical key board, both sides
Weight(including batteries)
5.1 kg
Operating temperature
-20℃to+50℃
Storage temperature
-40℃to+70℃
Interface
USB/RS-232C/Bluetooth(Factory Optional)
Water and dust protection
IP66 (IEC60529)
Data collector
F58 ,fully rugged PDA (Optional)
