- Product Details
- {{item.text}}
Quick Details
-
Capacity:
-
150kg/h
-
Filling material:
-
Broken Sponge Fiber cotton
-
Filling speeds:
-
decided by operator
-
Using for:
-
Pillow Fiber Filling
-
Suitable for:
-
pillow cushion down jacket
-
Operating voltage:
-
220v
Quick Details
-
Name:
-
cushion pillow filler machine
-
Application:
-
Filling Pillow Cushion
-
Function:
-
Polyester Fibre Opening Filling Machine
-
Capacity:
-
150kg/h
-
Filling material:
-
Broken Sponge Fiber cotton
-
Filling speeds:
-
decided by operator
-
Using for:
-
Pillow Fiber Filling
-
Suitable for:
-
pillow cushion down jacket
-
Operating voltage:
-
220v
cushion filling machine / pillow filler machine automatic / fiber pillow foam cushion filling machine
Machine introduction of pillow filling machine:
Pillow filling machine is designed for the filling materials such as pillow, cushions, pillow cores, clothes, sofas and other large products. 100-150mm large models of cotton pipe diameter can be freely replaced, long and short fiber cotton, pearl cotton, broken sponge, particles are all applicable. The machine has the advantage of fast filling speed, foot control, simple operation, low noise , safe and reliable.
Machine features of pillow filling machine:
1. This machine has the function of automatic feeding cotton, and filling cotton, no need air compressor to assist it.
2. After filling into the final product by the machine, the stuffing cotton will keep the fluffy condition.
3. The machine is controlled by the foot paddle, filling stuffing is more evenly, working speed faster.
4.The stuffing filling machine has different size filler pipe, the customer can choose the suitable filler pipe according to your product.
Working principle of pillow filling machine:
Loose the PP cotton, pearl cotton, plastic particles, foam material or other fillings with a loose machine. The stuffing will be fluffy. Then the loose filler is inhaled into the cotton machine, treadle the pedal switch, and the filling material is filled into the inner shell of the product that is needed to fill the filling process by using the force of the gas.
Technical parameter of pillow filling machine:
|
Machine model |
ASL-KCJ100 |
|
Power |
1.1+3.75 kw |
|
Voltage |
220v/380v |
|
Output |
200-300kg/h |
|
Weight |
480kg |
|
Machine size |
1900*900*1100mm ; 1100*680*1400mm |

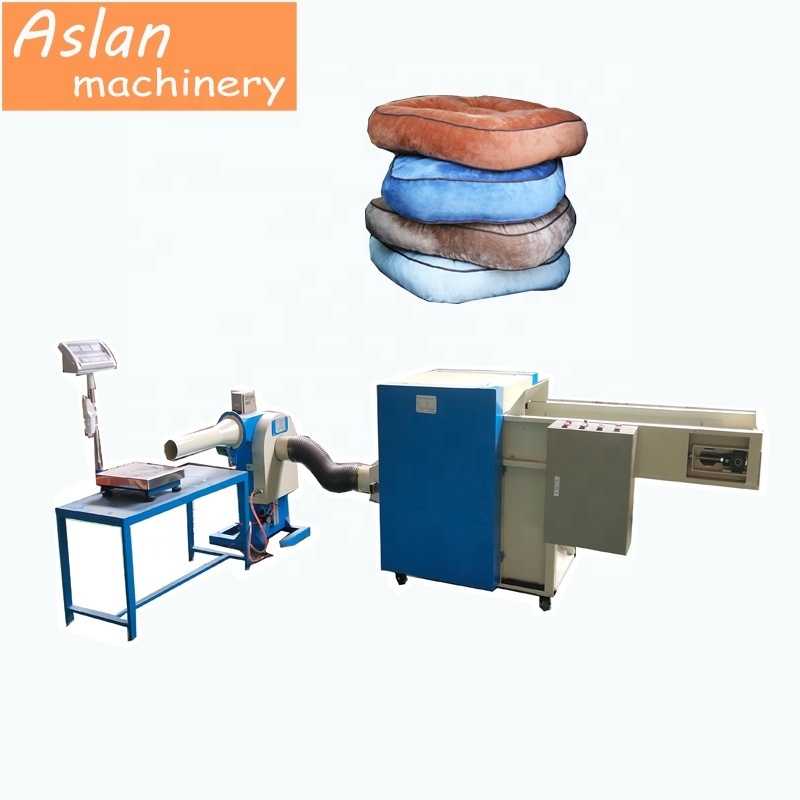

Machine Photo:
Final product:
A conner of workship
Machine freight by truck or container. Container machine be fixed by steel wire, to make sure all of them not be damage by transport jolt.
About package we will use 1cm plywood standard export wooden box.
About documents
We can provided Telex release bill of loading or Original Bill of loading, Certificate of original. Other documents can be provided according to your requirement.
About after sell service of our aslan machinery
Usually machine guarantee time is about 1 year. Within guarantee time. Machine breaking caused by machine itself design defect, we are responsible for it. We can provided free charge breaking part. If machine breaking caused by humane factor, user need take responsibility for it, we will provided technical support .
About goods shipping of our aslan machinery
We have long time working shipping forwarder. We can do our best to send machine to your port safe and sound. If your need, we can help you do custom clearance .
About payment term of our aslan machinery
Currently, in order to protect you and us rights. Both us in safe, hope we can do business in safe way .
L/C(>20000USD),Western Union,T/T(bank transfer),Escrow
which one is you want, we can discuss it .
About online Service of our aslan machinery
24 hours online to solve any problem. Your email will be reply within 12 hours. Your satisfy is our pursuit. Sincerely hope our cooperation .
