Quick Details
-
Rated Input Voltage:
-
220 V
-
Rated Output Current (MIG):
-
200A
-
Rated Output Voltage (MIG):
-
110 V
-
Welding Current/Voltage Range:
-
20~180A
-
Wire Feeding Speed:
-
8.2 m/min
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Delelift
-
Dimensions:
-
580*280*440
-
Usage:
-
Welding
-
Weight (KG):
-
18 KG
-
Year:
-
2021
-
Product name:
-
MIG-200 multi-function Mix gas welding machine
-
warranty:
-
36months
-
welding material:
-
ss304/316,iron,alumium..
-
MOQ:
-
5sets
-
Rated duty cycle(%):
-
60%
-
Wire diameter:
-
0.6-1.2mm
-
PROTECTION:
-
IP 23
-
GAS:
-
CO2/ argon
Quick Details
-
Wire Melting Type:
-
Short Circuit Transfer
-
Max. Load Power Capacity:
-
6.5 KW
-
Rated Duty Cycle @40°C (MIG):
-
60%
-
Rated Input Voltage:
-
220 V
-
Rated Output Current (MIG):
-
200A
-
Rated Output Voltage (MIG):
-
110 V
-
Welding Current/Voltage Range:
-
20~180A
-
Wire Feeding Speed:
-
8.2 m/min
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Delelift
-
Dimensions:
-
580*280*440
-
Usage:
-
Welding
-
Weight (KG):
-
18 KG
-
Year:
-
2021
-
Product name:
-
MIG-200 multi-function Mix gas welding machine
-
warranty:
-
36months
-
welding material:
-
ss304/316,iron,alumium..
-
MOQ:
-
5sets
-
Rated duty cycle(%):
-
60%
-
Wire diameter:
-
0.6-1.2mm
-
PROTECTION:
-
IP 23
-
GAS:
-
CO2/ argon
Certifications
Products Description

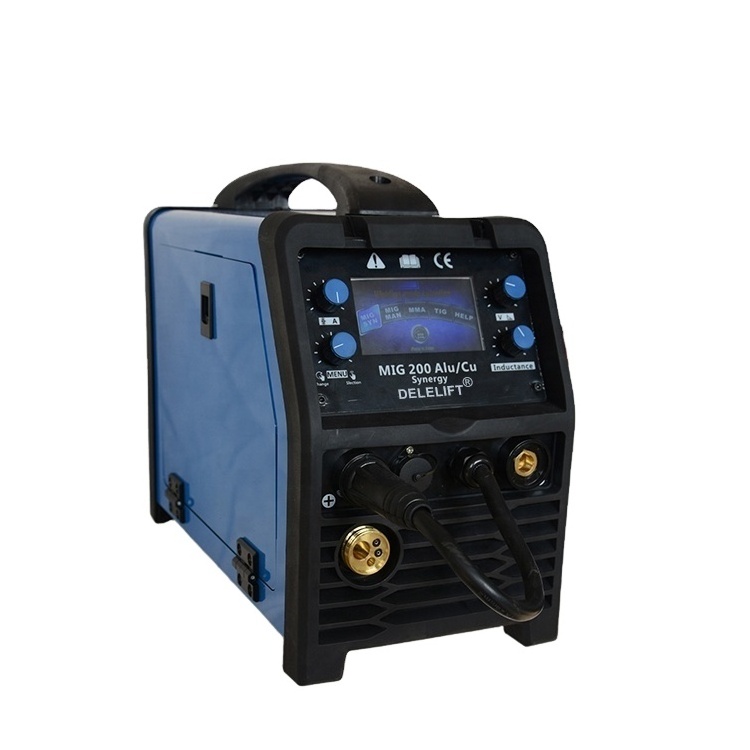

DLMIG 200 ALU SYNERGY welder is a light, portable semi-automatic welding machine made in inverter technology, powered from a single-phase 230V network with a maximum welding current of 200A. The device is equipped with a large numeric and graphic LCD screen with an intuitive, easy-to-use control panel. The synergy function used in the device allows for quick setting of welding parameters.
ADVANTAGES OF THE DEVICE:
3 YEARS WARANTY
- MCU program control system
- Special for carbon steel , stainless steel , aluminium , copper
- Multi-Function:MIG/MAG+MMA+LIFT TIG
- welding in synergic and manual mode
- braze welding
- inductance regulation
- 2T, 4T function
- welding without gas
- TIG LIFT welding
- SPOOL GUN ready
- MMA synergic welding
- selection of the type of electrodes
- graphic selection of the thickness of the welded material
- solid metal feeder
The power source was built on the basis of the latest technology using IGBT transistors, which translates into a reduction of electromagnetic interference, low power losses, increased efficiency and reliability of the power source and lower energy consumption.
The device has smooth adjustment of welding parameters, is equipped with an overload thermal protection system to prevent overheating. The welder is equipped with a 2-roll wire feeder with a socket "euro connector" which allows the connection of various types of welding holders.
SET CONTAINS:
- Welding device
- MIG / MAG work cable
- MMA work cable
- Cable with a ground clamp
-Teflon liner and U roller for
aluminium welding
- Manual user instructions.
|
model
|
DLMIG 200 P·LCD
|
|
|
|
|
|
|||||
|
power supply voltage(V)
|
110
|
|
|
230
|
|
|
|||||
|
Duty Cycle(40℃ 10Min)
|
MIG/MAG
|
LIFT TIGSTICK
|
STICK
|
MIG/MAG
|
STICK
|
LIFT TIG
|
|||||
|
|
140A 40％
|
100A 45%
|
140A 40%
|
200A 40％
|
170A 45%
|
200A 40%
|
|||||
|
|
115A 60％
|
85A 60%
|
115A 60%
|
165A 60％
|
120A 60%
|
165A 60%
|
|||||
|
|
90A 100％
|
65A 100%
|
90A 100%
|
130A 100％
|
100A 100%
|
100A 100%
|
|||||
|
Welding Current Range(A)
|
30~140A
|
20~110A
|
10~140A
|
30~200A
|
20~170A
|
10~200A
|
|||||
|
Welding Voltage Range(V)
|
10~21V
|
|
|
10~27V
|
|
|
|||||
|
Wire Diameter(mm)-
|
0.6 / 0.8 / 0.9 / 1.0 / 1.2
|
|
|
|
|
|
|||||
|
Electrode
|
2.5-4.0
|
|
|
|
|
|
|||||
|
Net Weight(Kg)
|
11.5
|
|
|
|
|
|
|||||
|
Gross weight(Kg)
|
15.7
|
|
|
|
|
|
|||||
|
Packing size Dimensions(mm)
|
485*285*425
|
|
|
|
|
|
|||||
|
Cover Protection Class
|
IP21S
|
|
|
|
|
|
|||||
Reactor
(full copper set) others copper with aluminum
Solenoid valve
(DC24V/0.8Mpa) top quality
Fast recovery diode
silan brand
IGBT
silan brand
Main transformer
(full copper set) others copper with aluminum
Power switch
(30A/top quality) others 15-20A/normal quality
Custom-made
Complete set(packing)
|
MATERIALS NAME
|
QUANTITY
|
|
MIG TORCH: 3 meter 15 AK MIG euro torch
|
1PCS
|
|
MMA work cable: 25mm 3 meter 200A welding clamp (copper and alu)
|
1PCS
|
|
25mm 3 meters 300A earth clamp(copper and alu)
|
1PCS
|
|
Teflon tube for Alu:3.5 meter
|
1PCS
|
|
U roller (1./1.2mm) for aluminium welding
|
1PCS
|
|
MASK
|
1PCS
|
|
BRUSH
|
1PCS
|
|
Air tube: 3 meters
|
1PCS
|
|
Manual user instructions
|
1PCS
|
