Quick Details
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1800*1000mm
-
Cutting Thickness:
-
Depends
-
Control Software:
-
DSP Control System
-
Place of Origin:
-
China
-
Brand Name:
-
MC
-
Weight (KG):
-
800 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support
-
Laser tube:
-
Sealed CO2 Glass Tube
-
Laser power:
-
80w/100w/130w/150w
-
Working speed:
-
0-400mm/s
-
Working table:
-
Conveyor platform with auto feeding system
-
Driving system:
-
High-precision Step Motor and Leadshine Driver
-
Compatible software:
-
Coreldraw Auto CAD Photoshop
-
Power supply:
-
AC110V/220V±10%,50HZ/60HZ
-
Min shaping character:
-
English 1mm*1mm
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0-40000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1800*1000mm
-
Cutting Thickness:
-
Depends
-
Control Software:
-
DSP Control System
-
Place of Origin:
-
China
-
Brand Name:
-
MC
-
Weight (KG):
-
800 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support
-
Laser tube:
-
Sealed CO2 Glass Tube
-
Laser power:
-
80w/100w/130w/150w
-
Working speed:
-
0-400mm/s
-
Working table:
-
Conveyor platform with auto feeding system
-
Driving system:
-
High-precision Step Motor and Leadshine Driver
-
Compatible software:
-
Coreldraw Auto CAD Photoshop
-
Power supply:
-
AC110V/220V±10%,50HZ/60HZ
-
Min shaping character:
-
English 1mm*1mm

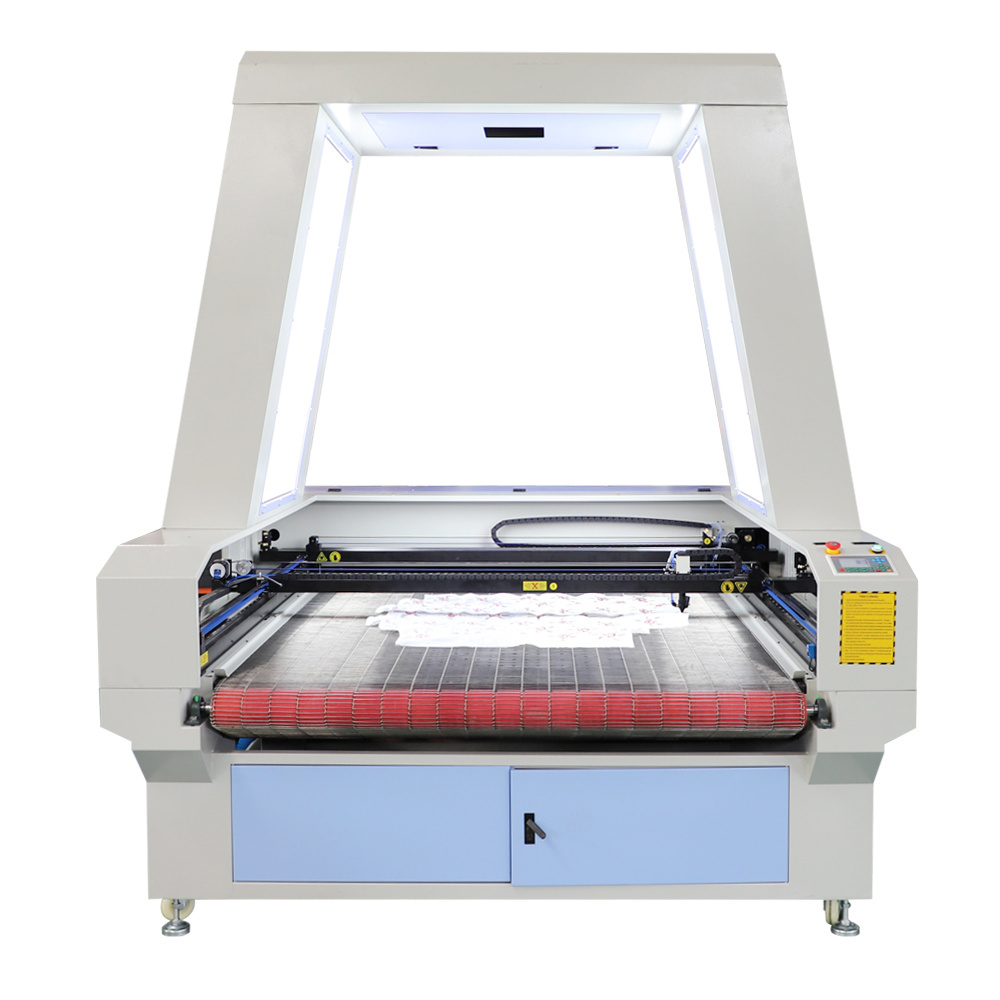

1810 Auto Position Cnc Co2 Laser Cutting Machine With CCD Camera For Fabric Cloth Label Cutting
|
Model |
MC1610 |
MC1810 |
Option |
|
Working Area |
1600*1000mm |
1800*1000mm |
According to Demands |
|
Laser Power |
80w/100w/130w/150w for option |
||
|
Laser Type |
CO2 Sealed Glass Laser Tube |
||
|
Cooling Type |
Water Cooling |
||
|
Laser Output Control |
0-100% Set by Software |
||
|
Min. Engraving Size |
English Letter:1.0mm*1.0mm |
||
|
Highest Scanning Precision |
4000DPI |
||
|
Locating Accuracy |
≤+0.01mm |
||
|
Graphic Format Supported |
DST PLT BMP DXF DWG AI LAS, etc |
||
|
Compatible Software |
CORELDRAW, PHOTOSHOP, AUTOCAD, TAJIMA, etc. |
||
|
Color Separation |
Yes |
||
|
Driver System |
Leadshine Step Motor and driver |
||
|
Auxiliary Equipments |
Exhaust san with air pipe, Air pump, Water pump/Water chiller |
||
|
Power Supply |
AC110V/220V±10%, 50HZ/60HZ |
||
|
Working Environment |
Temperature: 0-45C, Humidity 5-95%(No Condensate Water) |
||
Q1: I knew nothing about machine, How can I get the best one for me?
Pls you tell us your working material, detail work by picture or video so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
We'll send you manual and guide video in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can talk by phone, email or other contact ways.
Q3: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".
Q4: How long is the delivery time?
For standard machines, it would be 10-15 workdays; For non-standard machines and customized machines according to your specific requirements, it would be 25 to 30 workdays.
Q5: Are you a Factory or Trading company?
We're a professional manufacturer with export license.
Q6: Where is your company located?
Factory: L aser Industrial Park, Qifa Avenue and Mingjia East Road Intersection East 200 Meters, Economic Development Zone, Qihe County, Dezhou City.
Office: Room 1401, Building 6, Rongsheng Times International Plaza, Quanfu Street, Licheng District , Jinan City .
Warmly welcome at any time to visit!
