Quick Details
-
Charging Port:
-
no
-
Connection:
-
Type2
-
Voltage:
-
230V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TDT EVSE
-
Model Number:
-
TDT-A1-1P-EV016
-
Product name:
-

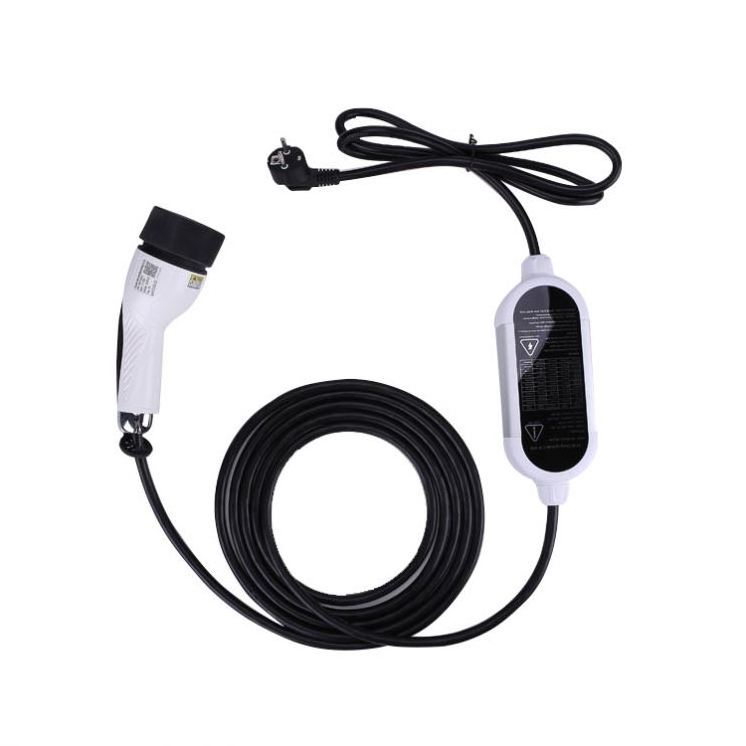

Adjustable Electric Vehicle Charger
-
Material:
-
Aluminum profile + Plastic PC940
-
Feature:
-
Portable,Plug and Play,Anti-corrosion and weather proof
-
Size:
-
238*84*44mm
-
Weight:
-
2.5 kgs
-
Delivery Time:
-
7
-
Logo:
-
Customized Logo
-
Packages:
-
Customized Package
-
Certification:
-
CE/RoHS/IP65
Quick Details
-
Function:
-
Plug and Play, Portable and Convenient, Friendly Interface, Safe and Reliable, New Energy Car Charging
-
Car Fitment:
-
BYD, Nissan, bmw
-
Type:
-
Portable Ev Charger, commercial user/Home use series
-
Charging Port:
-
no
-
Connection:
-
Type2
-
Voltage:
-
230V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TDT EVSE
-
Model Number:
-
TDT-A1-1P-EV016
-
Product name:
-
Adjustable Electric Vehicle Charger
-
Material:
-
Aluminum profile + Plastic PC940
-
Feature:
-
Portable,Plug and Play,Anti-corrosion and weather proof
-
Size:
-
238*84*44mm
-
Weight:
-
2.5 kgs
-
Delivery Time:
-
7
-
Logo:
-
Customized Logo
-
Packages:
-
Customized Package
-
Certification:
-
CE/RoHS/IP65
Details Images
Product Paramenters
|
Specification
|
Model
|
T-A1-1P-EV016
|
|
AC Nominal
Input |
Phases / Lines
|
1 Phase + Neutral + PE
|
|
|
Voltage
|
230 V± 10%
|
|
|
Frequency
|
50Hz
|
|
AC Nominal
Output |
Voltage
|
230 V± 10%
|
|
|
Current
|
8A 10A 13A 16A(4 Gears Adjustable)
|
|
|
Power
|
3.68KW (Max)
|
|
Structure Design
|
Housing Material
|
Aviation aluminum
|
|
|
LED Indicator
|
4 indicators
|
|
|
Display Screen
|
LED display
|
|
|
Power Cord Plug
|
UK / US / Schuko/ CEE / Nema（Optional）
|
|
|
Charging Outlet
|
One charging plug (Type 2)
|
|
|
Plug Cable Length
|
0.5M
|
|
|
Gun Cable Length
|
4.5M
|
|
Environmental
|
Operating Temperature
|
-30 ~ +50 °C
|
|
|
Working Humidity
|
5%~95% Without condensation
|
|
|
Working Altitude
|
<2000M
|
|
Index
|
Protection Grade
|
IP65 / IK10(Third party report)
|
|
|
Application Site
|
Indoor / Outdoor
|
|
|
Cooling Method
|
Natural cooling
|
|
Security Protection
|
Multiple Protection
|
Over/Under voltage protection, Over/Under frequency protection,
Over/Under temperature protection, Over current protection, Current leakage protection, Grounding protection. |
|
|
MTBF
|
50,000 hours
|
|
|
Safety Standard
|
IEC62752, IEC61851, IEC62192 / SAE J1772
|
|
|
Warranty
|
1 years
|
|
Package Information
|
Product Dimension
|
238*84*44mm (Control Box)
|
|
|
Package Dimension
|
365*285*85mm
|
|
|
Net Weight
|
2KG
|
|
|
Gross Weight
|
2.5KG
|
|
|
External Packing
|
Carrying case + Carton box
|
Feature of Portable ev charger
1. Portable and Convenient:
Simple and portable. Charge your EV wherever and whenever.
2. Plug and Play:
Easy operation, plug and play. Charge your EV just like charging your mobile phone.
3. Friendly Interface:
Intuitive HMI with LED indicators.
4. Robust and Durable:
Anti-corrosion and weather proof. IP65 protection grade for outdoor use.
5. Safe and Reliable:
Over temperature and leakage protection to ensure safety and reliability.
