Quick Details
-
Brand Name:
-
GINRI
-
Model Number:
-
DPR-S90
-
Max. Working Pressure:
-
100MPA
-
Pressure connector:
-
M20*1.5 G1/2,G1/4 (other connector could be customized)
-
Accuracy grade:
-
±0.5%FS
-
Mounting methods:
-
Axial direction or radial direction optional
-
Certification:
-
CE
-
Rated voltage:
-
DC12V,DC24V,AC220V,AC380V
-
Pressure unit:
-
MPa,kgf/cm ,PSI adjustable
-
Power supply:
-
24VDC 220VAC 380VAC
-
Load capacity:
-
3A/380VAC,5A/220VAC,5A/24VDC
-
Pressure range:
-
0~1, 2, 3, 4, 5, 10, 20,30, 40, 50, 60Mpa
-
Overload pressure:
-
120%
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GINRI
-
Model Number:
-
DPR-S90
-
Max. Working Pressure:
-
100MPA
-
Pressure connector:
-
M20*1.5 G1/2,G1/4 (other connector could be customized)
-
Accuracy grade:
-
±0.5%FS
-
Mounting methods:
-
Axial direction or radial direction optional
-
Certification:
-
CE
-
Rated voltage:
-
DC12V,DC24V,AC220V,AC380V
-
Pressure unit:
-
MPa,kgf/cm ,PSI adjustable
-
Power supply:
-
24VDC 220VAC 380VAC
-
Load capacity:
-
3A/380VAC,5A/220VAC,5A/24VDC
-
Pressure range:
-
0~1, 2, 3, 4, 5, 10, 20,30, 40, 50, 60Mpa
-
Overload pressure:
-
120%

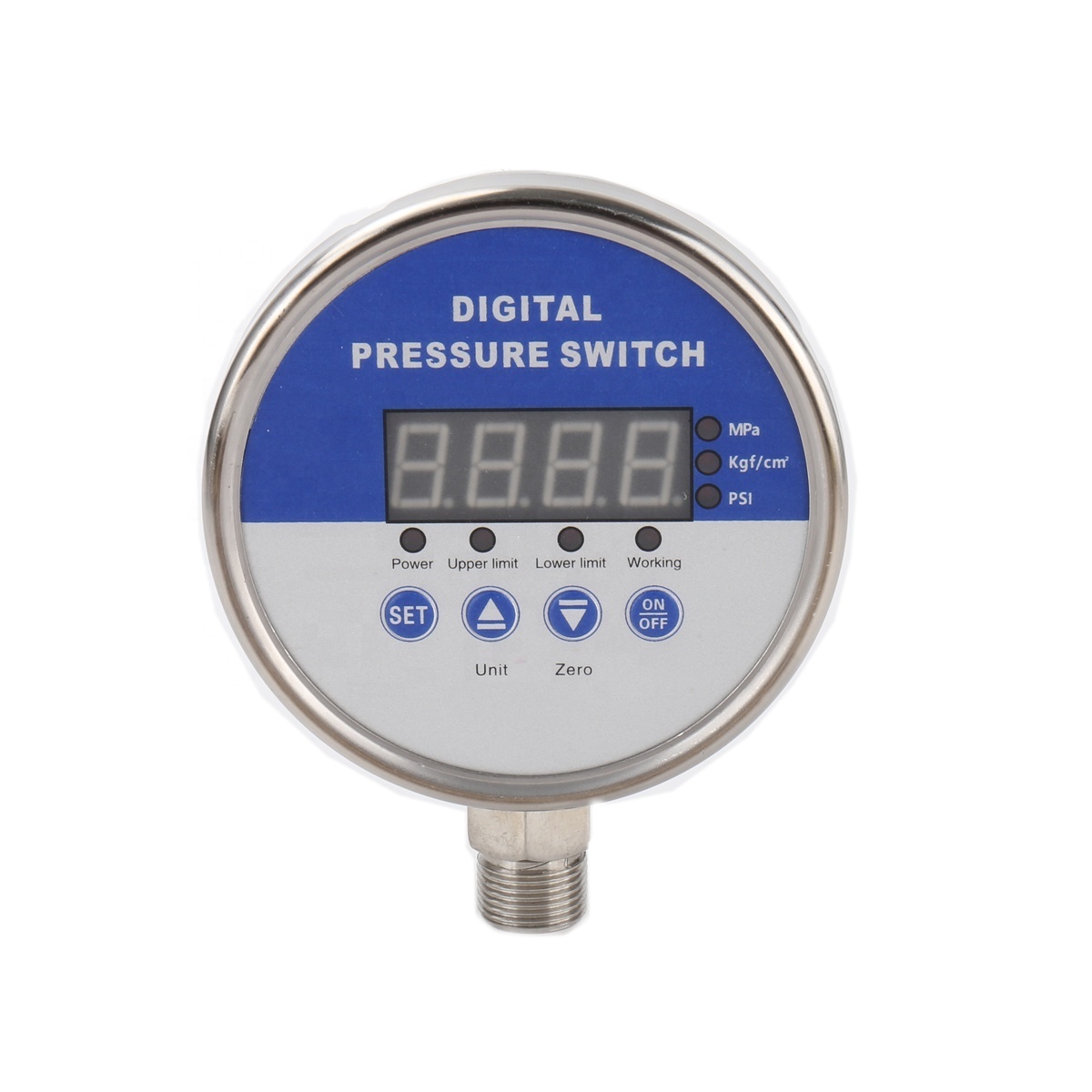

LED Digital Pressure Switch
DPR-S90 Series
♦ Features
-- 4 digital LED display pressure, Accuracy ≤ 0.5%
-- Three pressure units available ( Psi, Kg/cm2 , Mpa)
-- Adjustable high & low pressure threshold and delay time
-- Adjustable control mode:normal control and reverse control
-- Pressure leak and loss protection,secure setting-up
-- Anti-electromagnetic interference design
-- Zero clearing with one button
♦ Protective Functions
Upper limit alarm(high pressure)
Lower limit alarm(low pressure)
Pressure leak alarm
Pressure loss alarm(no pressure)
♦ Typical Applications
• Machine Automation • Engineering Machinery
• Electromechanical Integration Equipment • Pump&compressor
• Hydraulic System • Medical project • Pipeline engineering
♦ Specification
|
Pressure range |
General type:0 ~ 1, 2, 3, 4, 5, 10, 20, 30, 40, 50, 60Mpa Micro type:0 ~ 0.2, 0.5Mpa Negative type: -0.1 ~ 0.1Mpa |
|
Pressure unit |
MPa,kgf/cm2,PSI adjustable |
|
Overload pressure |
120% |
|
Accuracy grade |
±0.5%FS |
|
Power supply |
24VDC , 220V AC , 380VAC |
|
Alarm point |
Full range can be set |
|
Alarm type |
relay signal |
|
Load capacity |
380V 3A , 220V 5A , 24V 5A |
|
Sampling frequency |
10 times/sec |
|
Operating temperature |
-20 ℃ -80 ℃ |
|
Compensation Temperature |
-10 ~60 ℃ |
|
Measurement medium |
Air,Non-flammable&non-corrosive gas, water, oil (compatible with 316 stainless steel) |
|
Electric protection |
Short-circuit protection, reverse polarity protection, anti-electromagnetic interference design |
|
Pressure connector |
M20*1.5 G1/2,G1/4 (other connector could be customized) |
|
Connector material |
304SS |
|
Optional module |
RS485 Modbus Communication protocol |
|
Dial diameter |
100mm |
|
Shell material |
304SS |
|
Mounting methods |
Axial direction or radial direction optional |
|
Weight |
0.6Kg |
♦ Dimension
DPR-S90 R adial mounting
DPR-S90 Axial mounting
* Please contact us for further information.
♦ GINRI Selection Guide
♦ GINRI Packing
♦ GINRI Relay Family Photo
