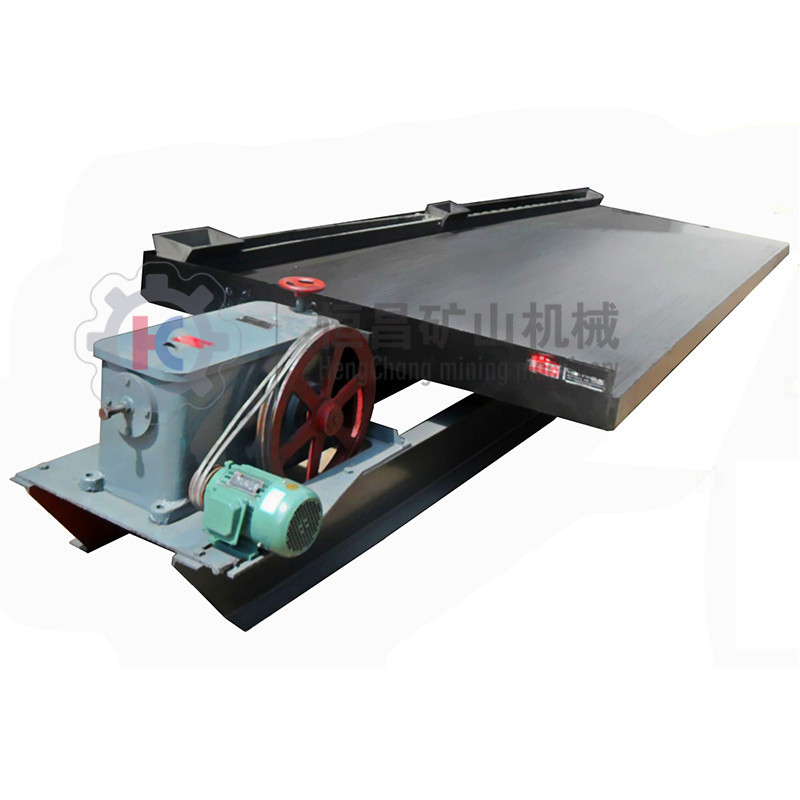

The first product on this page with channel bar, easy to install, just need pour cement to channel bar, embedded anchor bolts for equipment foundation. The effectiveness is same compare with the one have bracket.
The price is reasonable, being loved and esteemed by the customers. We recommend order this one.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Depend on the model
-
Weight:
-
150 KG
-
Feeding size:
-
0.074-2mm
-
Capacity:
-
0.2-2.5t/h
-
Color:
-
As required
-
Installation:
-
Technical guidance
-
Price:
-
Negotiable
-
Separator:
-
Gravity Separator
-
Material:
-
Fiberglass
-
After-sales Service Provided:
-
Video technical support
Quick Details
-
Production Capacity:
-
98%
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Hengchang
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Depend on the model
-
Weight:
-
150 KG
-
Feeding size:
-
0.074-2mm
-
Capacity:
-
0.2-2.5t/h
-
Color:
-
As required
-
Installation:
-
Technical guidance
-
Price:
-
Negotiable
-
Separator:
-
Gravity Separator
-
Material:
-
Fiberglass
-
After-sales Service Provided:
-
Video technical support
Hengchang gold dry washer industrial machinery
Hengchang machinery
Industrial Machinery
can be used for many minerals separating, such as gold, copper, tungsten, tin, tantalum, coltan, chrome, zinc ore and some other minerals. When you find us, you find one best mining machinery manufacturer.
Industrial Machinery
Introduction:
Industrial Machinery is widely used for sorting minerals. Its main function is sorting the rough and concentrate mixture after minerals gravity separating. (Such as rough concentrate sorted by jig and shaking table). Process particle size is ranging from 2 mm to 0.074 mm. The separating effect is especially for minerals with a variety of sulfide minerals. It has the following advantages compared with the gold table: it is easy to observe changes of slurry on shaking table; easy to operate; it has many different specifications for choosing.
It is proved by a large number of actual production data and feedback from the customer after-sales information that this gravity mineral separating shaking table is simple operation in production process. The separation effect is especially prominent for tungsten mine including sulfur and other sulfide minerals. Secondly, its capacity is larger than 6-S shaking table. Its overall production costs are much lower than 6-S shaking table.
Industrial Machinery Working Principle:
The working principle of shaking table is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.
This machine is composed of three parts, i.e. head of shaking table, surface of shaking table, as well as bearing and adjusting gradient.
1. Head of shaking table: This is eccentric connecting-rod type mechanism. The motor drives the eccentric shafts to rotate and the connecting rod to move up and down. When the connecting rod pushes down the toggle plate compression spring, the pull rod drives the table surface to move in the direction of table head. When the connecting rod pushes it upward, it, through the spring tension, drives the table surface to move in the opposite direction. When they are linked, the rotating motion of eccentric shaft is changed into horizontal alternating differential motion of table surface.
2. Industrial Machinery for gold table surface: It is mainly composed of vibrating roof, steel skeleton, glass fiber reinforced plastics and wear-proof surface, feed water tank, feed chute, and draw bar. The table surface adopts steel skeleton FRP composite structure. That is, glass fiber reinforced plastics are pasted on steel skeleton to form a solid glass fiber reinforced plastic surface. Its above uses abrasion-proof materials to make surface and riffle (notch groove).
3. Bearing and Adjusting Gradient Mechanism: Shaker table for gold The bearing and adjusting gradient mechanism is mainly composed of shaking support plate, adjusting seat board, saddle seat, and adjusting screw rod. The shaking support plate enables the table surface to make arc forward and backward alternating movement on vertical plane. The shaking support plate and shaking box are fixed on the adjusting seat board with gripping channel steel. When hand wheel regulating screw rod is used to get the adjusting seat board to rotate on the saddle seat, the Transverse gradient of table surface can be adjusted.
Industrial Machinery Applications:
Industrial Machinery is a mine separation device for fine minerals working by gravity. They are effective in processing precious and base metal, rare metal and non-metallic minerals, widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc.
Industrial Machinery is widely used for sorting minerals. Its main function is sorting the rough and concentrate mixture after minerals gravity separating. (Such as rough concentrate sorted by jig and shaking table). Process particle size is ranging from 2 mm to 0.074 mm. The separating effect is especially for minerals with a variety of sulfide minerals. It has the following advantages compared with the gold table: it is easy to observe changes of slurry on shaking table; easy to operate; it has many different specifications for choosing.
It is proved by a large number of actual production data and feedback from the customer after-sales information that this gravity mineral separating shaking table is simple operation in production process. The separation effect is especially prominent for tungsten mine including sulfur and other sulfide minerals. Secondly, its capacity is larger than 6-S shaking table. Its overall production costs are much lower than 6-S shaking table.
Industrial Machinery Working Principle:
The working principle of shaking table is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.
This machine is composed of three parts, i.e. head of shaking table, surface of shaking table, as well as bearing and adjusting gradient.
1. Head of shaking table: This is eccentric connecting-rod type mechanism. The motor drives the eccentric shafts to rotate and the connecting rod to move up and down. When the connecting rod pushes down the toggle plate compression spring, the pull rod drives the table surface to move in the direction of table head. When the connecting rod pushes it upward, it, through the spring tension, drives the table surface to move in the opposite direction. When they are linked, the rotating motion of eccentric shaft is changed into horizontal alternating differential motion of table surface.
2. Industrial Machinery for gold table surface: It is mainly composed of vibrating roof, steel skeleton, glass fiber reinforced plastics and wear-proof surface, feed water tank, feed chute, and draw bar. The table surface adopts steel skeleton FRP composite structure. That is, glass fiber reinforced plastics are pasted on steel skeleton to form a solid glass fiber reinforced plastic surface. Its above uses abrasion-proof materials to make surface and riffle (notch groove).
3. Bearing and Adjusting Gradient Mechanism: Shaker table for gold The bearing and adjusting gradient mechanism is mainly composed of shaking support plate, adjusting seat board, saddle seat, and adjusting screw rod. The shaking support plate enables the table surface to make arc forward and backward alternating movement on vertical plane. The shaking support plate and shaking box are fixed on the adjusting seat board with gripping channel steel. When hand wheel regulating screw rod is used to get the adjusting seat board to rotate on the saddle seat, the Transverse gradient of table surface can be adjusted.
Industrial Machinery Applications:
Industrial Machinery is a mine separation device for fine minerals working by gravity. They are effective in processing precious and base metal, rare metal and non-metallic minerals, widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc.
6-S Small Channel steel support
Industrial Machinery
6-S Big Channel steel support
Industrial Machinery
6-S have the same effectiveness as the common bracket, but no need pour cement to embedded anchor bolts. Easy to install and move.Especially suitable for rough surface, sand ground and virtual earth's surface.
6-S Fixed Type
Industrial Machinery
Without mounting bracket, the use of the installation takes the mound to cement casting pile to put shaking table, not convenient to move, but relatively save cost, users can according to the economic situation to decide.
Yunxi Type
Industrial Machinery
The difference is the bedside,
Less wearing parts, long service life, easy operation and more expensive.
|
Model
|
6S4450x1855x1546
|
LY3000x1620x1360
|
LY2100*1050*850
|
LY1100*500*430
|
|
Storke (mm)
|
8-22
|
6-30
|
12-38
|
9-17
|
|
Times of Stroke r(t/min)
|
210-350
|
210-320
|
250-460
|
280-460
|
|
Cross Slope (°)
|
1-4
|
0-10
|
0-8
|
0-10
|
|
Feed Size (mm)
|
2-0.074
|
2-0.074
|
2-0.074
|
2-0.074
|
|
Feed Density (%)
|
15-30
|
10-30
|
10-30
|
10-30
|
|
Water Consumption (t/h)
|
0.5-6
|
0.3-1.5
|
0.2-1.0
|
0.1-0.5
|
|
Capacity (t/h)
|
0.6-2.5
|
0.4-1.5
|
0.3-0.8
|
0.05-0.2
|
|
Power (kw)
|
1.1
|
1.1
|
1.1
|
0.55
|
|
Weight (kg)
|
800
|
500
|
350
|
150
|
