Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
4 tones 355mm solid rubber wheels heavy duty mecanum wheel
-
Diameter::
-
355mm(14 inch)
-
Width::
-
190mm
-
Number of Rollers::
-
8pcs
-
Number of Plates::
-
2pcs
-
Main shaft hole::
-
50mm(customizable)
-
Body material::
-
Aluminum alloy
-
Roller material::
-
Aluminum core with Polyurethane coated
-
Net weight::
-
45kg/ set
-
Load capacity::
-
4000kg/Set
Quick Details
-
Width:
-
190mm
-
Material:
-
Aluminum alloy
-
Warranty:
-
none
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
4 tones 355mm solid rubber wheels heavy duty mecanum wheel
-
Diameter::
-
355mm(14 inch)
-
Width::
-
190mm
-
Number of Rollers::
-
8pcs
-
Number of Plates::
-
2pcs
-
Main shaft hole::
-
50mm(customizable)
-
Body material::
-
Aluminum alloy
-
Roller material::
-
Aluminum core with Polyurethane coated
-
Net weight::
-
45kg/ set
-
Load capacity::
-
4000kg/Set
Product Description
Load capacity 4 tones 355mm solid rubber wheels heavy duty mecanum wheel
Omni wheel&Mecanum wheel is heavy load Omni wheel&Mecanum wheel. Each High-strength wheel hub and great-quality material ensure the series an excellent performance. Industry Omni wheel&Mecanum wheel series Omni wheel also adapt to various indoor and outdoor occasions.It can be used in industry . install on the heavy duty omni moving platform to make the platform rotate to omni directions.And it mainly used in industry , workshop, AGV and so on . It can even used on stage show equipment .

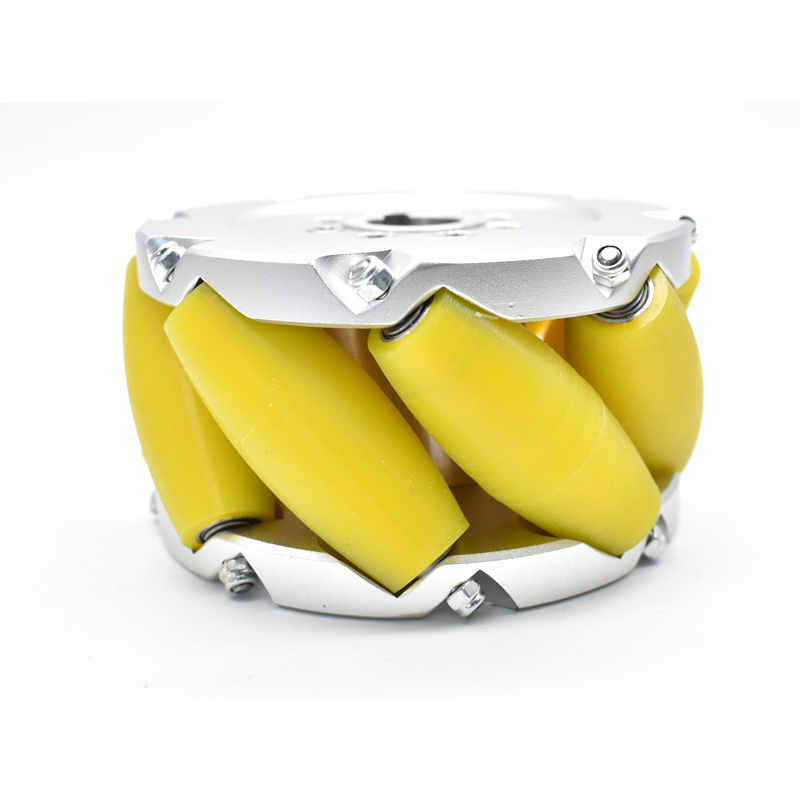

Heavy Duty Mecanum Wheels 355mm 14inch wheel
With a series of rollers attached to its circumference, these rollers having an axis of rotation at 45° to the plane of the wheel in a plane parallel to the axis of rotation of the mecanum wheel. Depending on each individual wheel direction and speed, the resulting combination of all these forces produce a total force vector in any desired direction. thus allowing the platform to move freely in the direction of the resulting force vector, without changing of the mecanum wheels themselves.It is perfect for tight space.These wheels are sold in assembled units, with many rollers per wheel. Each roller is a heavy-duty wheel itself.These offers capacity up to pounds at least.Typical applications include Material handling, table lift, and Heavy dusty vehicle etc.Especially in warehousing andlogistics,could improve efficiency and promote the development of the industry.Mecanum wheel would have a huge technological revolution.
Specifications:
Diameter: 355mm（14 inch)
Width: 190mm
Main shaft hole:φ50mm(customizable)
Number of Rollers: 8
Number of Plates: 2
Body material: Aluminum alloy
Roller material: Aluminum core with Polyurethane coated
Net weight: 45kg *4
Load capacity: 4000kg/Set
Specification
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
