Quick Details
-
Model Number:
-
EW-20A-1
-
Winding ID:
-
50 - 150 mm
-
Tying OD:
-
8 - 30 mm
-
Winding shape:
-
Round shape, 8 shape (mechanical adjustment on winding plate)
-
Winding speed:
-
1 - 13 turns/s
-
Tie wire length:
-
75 - 140 mm
-
Twist number on tie wire end:
-
Adjustable
-
Noise level:
-
< 70 dB(A)
-
Power supply:
-
110, 220 V (50 - 60 Hz)
-
Power:
-
200 W
-
Program language:
-
English (custom option)
Quick Details
-
Use:
-
WINDING
-
Place of Origin:
-
China
-
Brand Name:
-
EASTONTECH
-
Model Number:
-
EW-20A-1
-
Winding ID:
-
50 - 150 mm
-
Tying OD:
-
8 - 30 mm
-
Winding shape:
-
Round shape, 8 shape (mechanical adjustment on winding plate)
-
Winding speed:
-
1 - 13 turns/s
-
Tie wire length:
-
75 - 140 mm
-
Twist number on tie wire end:
-
Adjustable
-
Noise level:
-
< 70 dB(A)
-
Power supply:
-
110, 220 V (50 - 60 Hz)
-
Power:
-
200 W
-
Program language:
-
English (custom option)
Customer Case Video
Products Description

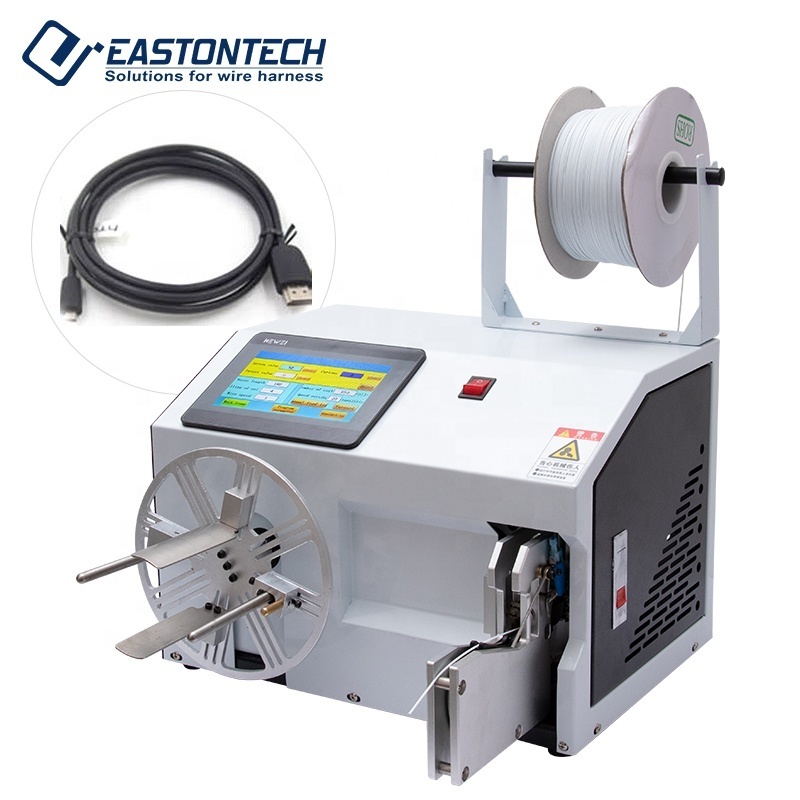

EW-20A-1
Touch Screen
Cable Winding And Tying Machine
Features:
1.This machine is suitable for
AC power cord, DC power cord,USB cable, sheathed cable and HDMI high-definition cable
and other types of transmission lines using encapsulated core twist tied into bundle, can also be used to tape and other sealing plastic bag cores.
2.This machine can reduce employee fatigue strength, improve working efficiency, save cable ties and so on.
3.Employees simply put the wires on the port it will automatically winding,then putting these wires around the Norse mouth,the machine will automatically norse.The machine can set binding wire length and number of laps,count the yield.
4.The machine adopts PLC control program , text display for parameter setting, easy to operate.Adjusting space, replacement of fixtures is very convenient, (
"8" -shaped tying, tying round universal,
l
arge range of bundled,widely used.)
Product Paramenters
|
Model
|
EW-20A-1
|
|
Winding inner diameter
|
65-125 mm
|
|
Tying outer diameter
|
5-35 mm
|
|
Tying shape
|
Round, long, 8 shape
|
|
Winding speed
|
50 - 65 rpm.
|
|
Noise level
|
< 70 dB(A)
|
|
Power supply
|
110, 220 V (50 - 60 Hz)
|
|
Operation interface
|
Bilingual
|
|
Dimension
|
500 * 300 * 400 mm
|
|
Weight
|
40 kg
|
Details Images
Smart Control Panel
High-definition display screen, touch operation, intuitive and convenient parameter setting, simple and fast
Anti-Rust Winding Reel
It adopts anti-rust coating, and the matte grade feels delicate and does not cut hands. The diameter of the winding wire can be adjusted according to the needs.
It can be winding around figure 8 and round shape.
Cable Tie Cutout
Imported steel material, anti-corrosion and durable, touch-sensitive automatic cable
tie/twisting/cutting
operation
Iron Core Cable Tie
Using
high toughness iron core
,
it can be twisted many times and is not easy to break, the binding is firm, and the service time is long
