Quick Details
-
Brand:
-
AOXUN
-
Packaging:
-
carton
-
Description:
-
N Female RF Coaxial Connector
-
Product name:
-
RF coaxial connector
-
Axial retention force:
-
≥26.7 N
-
Characteristic impedance:
-
50ohm
-
Internal conductor separation force:
-
≥0.27 N
-
temperature range:
-
-40°C~125°C
-
Frequency range:
-
0--6GHz
-
Insulation resistance:
-
≥5000MΩ
-
Material:
-
All Copper
-
Connector type:
-
N
-
Execution standards:
-
IEC60169
Quick Details
-
Type:
-
RF Coaxial Connector N Tape
-
Model Number:
-
N-C-K4D
-
Place of Origin:
-
Jiangsu, China
-
Brand:
-
AOXUN
-
Packaging:
-
carton
-
Description:
-
N Female RF Coaxial Connector
-
Product name:
-
RF coaxial connector
-
Axial retention force:
-
≥26.7 N
-
Characteristic impedance:
-
50ohm
-
Internal conductor separation force:
-
≥0.27 N
-
temperature range:
-
-40°C~125°C
-
Frequency range:
-
0--6GHz
-
Insulation resistance:
-
≥5000MΩ
-
Material:
-
All Copper
-
Connector type:
-
N
-
Execution standards:
-
IEC60169
Products Description

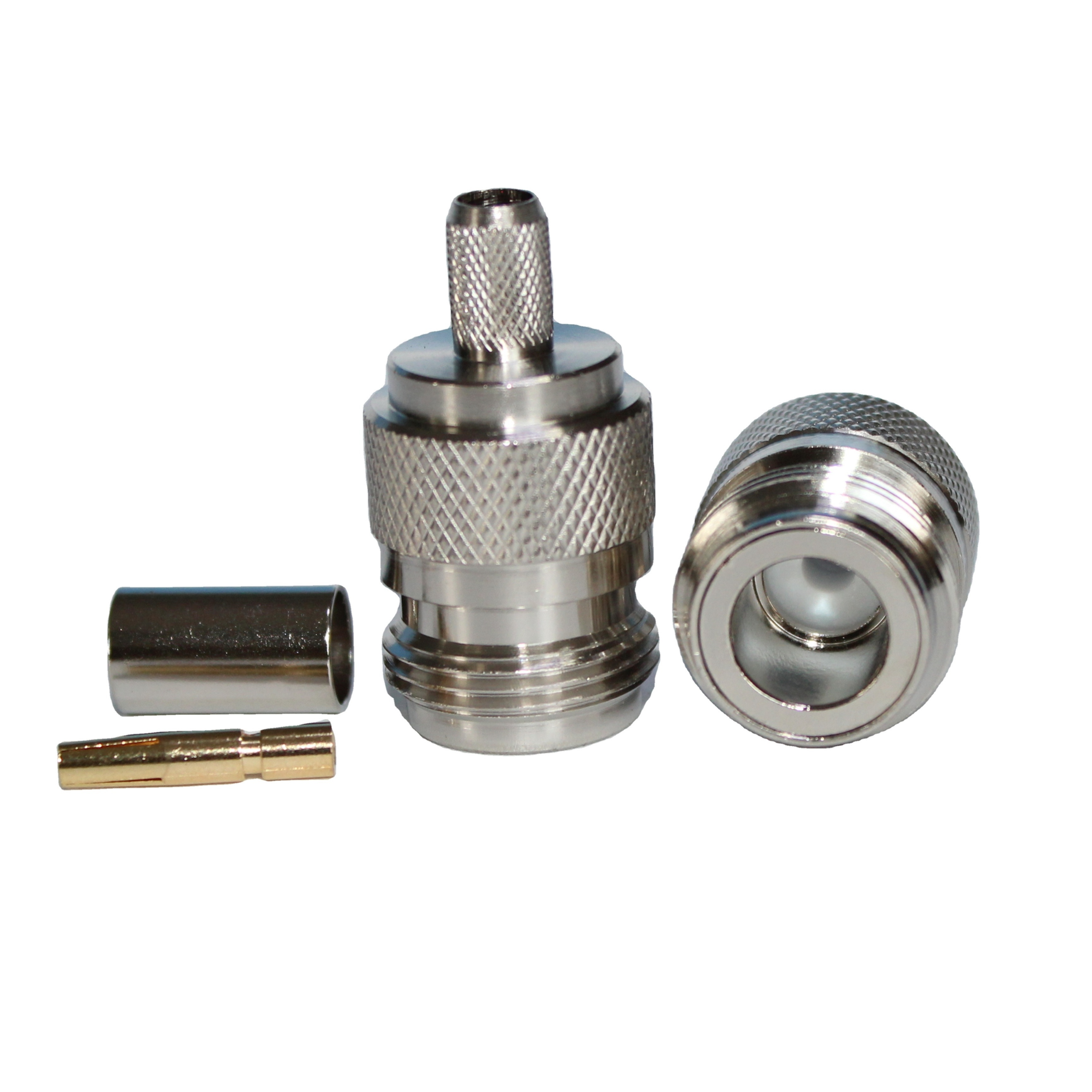

RF Coaxial Connectors--N Type
The N series product is a type of small and medium-sized power connector with a threaded connection mechanism, widely used in wireless equipment and instruments to connect RF coaxial cables. It can be interchanged with similar N-type products internationally, and is divided into 50 ohms and 75 ohms according to characteristic impedance.
The N series product is a type of small and medium-sized power connector with a threaded connection mechanism, widely used in wireless equipment and instruments to connect RF coaxial cables. It can be interchanged with similar N-type products internationally, and is divided into 50 ohms and 75 ohms according to characteristic impedance.
The N series product is a type of small and medium-sized power connector with a threaded connection mechanism, widely used in wireless equipment and instruments to connect RF coaxial cables. It can be interchanged with similar N-type products internationally, and is divided into 50 ohms and 75 ohms according to characteristic impedance.
Product Paramenters
|
Model
|
N-C-K4D
|
|
|
|
Temperature Range
|
-40~+125°C
|
|
|
|
Impedance
|
50Ω
|
|
|
|
Frequency Range
|
0-6GHz
|
|
|
|
Execution standards
|
IEC60169
|
|
|
|
Insulation Resistance
|
≥5000MΩ
|
|
|
|
contact resistance
|
Between outer conductors<0.2mΩ
Between inner conductors<1mΩ
|
|
|
|
Axial retention force
|
≥26.7 N
|
|
|
If you are interested in our products, please don't hesitate to contact with us. we will reply you within 24 hours after receive your specific enquires.
