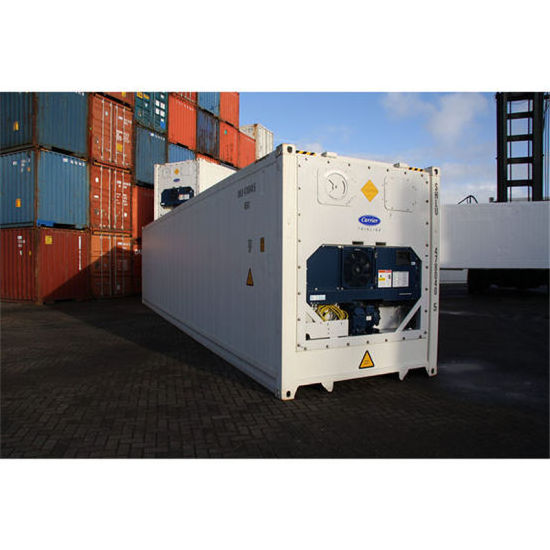

40 Feet Refrigerated Container
High cube containers is the best solution for your storage problems, especially when your cargo is too large to fit into a standard general purpose container. High cube containers are designed and constructed to meet the harsh demands of sea travel, so you know they will last as they are strong and secure for whatever purpose needed. We supply both 20 ft and 40 ft high cube containers.
BSL ISO Refrigerated Containers have 3 standard sizes: 10ft, 20ft and 40ft
All reefer units are new build in China, and fitted with new
Carrier ThinLINE Machinery.
Color : RAL 9003
We have stock units available in China. Please contact us for quotation.
| 40'x8'x9'6" | ||
| Exterior | Length | 12,192mm |
| Width | 2,438mm | |
| Height | 2,896mm | |
| Internal | Length | 11,584mm |
| Width | 2,2292mm | |
| Height | 2,546mm | |
| Cubic | Capacity | 2,387 |
|
CONTAINER REFRIGERATION UNIT SPECIFICATIONS
Model: THINLINE 69NT40-541 |
|||
| Net R-134a Refrigeration Cooling Capacity | |||
|
At 38°C (100°F) ambient temperature and 60 Hz Power Supply: |
|||
| Air to Evaporator | Cooling Capacity | Power | |
| -29 °C (-20°F) | 3,100 Watt | 5.0 kW | |
| -18 °C (0°F) | 6,010 Watt | 6.4 kW | |
| 2°C (35°F) | 10,250 Watt | 10.8 kW | |
| To download the detailed technical specifications, please click here | |||
|
CONTAINER REFRIGERATION UNIT SPECIFICATIONS
Model: PRIMELINE 69NT40-561 |
|||
| Net R-134a Refrigeration Cooling Capacity | |||
|
At 38°C (100°F) ambient temperature and 60 Hz Power Supply: |
|||
| Air to Evaporator | Cooling Capacity | Power | |
| -29 °C (-20°F) | 4,400 Watt | 4.9 kW | |
| -18 °C (0°F) | 6,600 Watt | 5.8 kW | |
| 2°C (35°F) | 12,000 Watt | 8.9 kW | |
40 Feet Standard Container.
We provide 40 Feet Container for supply storage. We pride ourselves on being able to deliver high quality storage container products at competitive prices. We have new and used storage containers for sale available and ready for delivery.
20 Feet Standard Container.
We are a highly spirited supplier of Marine Containers. Our Marine Containers are demanded by quality conscious clients at a very large scale. The Marine Cargo Containers supplied by us are long lasting. We have tie up with many renowned manufacturers of best quality Marine Containers. These Marine Containers are available with us in various capacities. Our marine containers are made up of the rugged steel with hardwood floors. They can be easily transported and popular for their safe storage. We have earned immense reputation amongst leading Marine Shipping Containers suppliers in South Africa.
20 Feet Open Top Container.
We offer 20 ft refrigerated containers for industrial use.If you're after a refrigerated storage container for sale then we have the right unit for you. Refrigerated storage containers are ideal for storing and transporting perishable goods.
NEW 20GP/20HC/40GP/40HC Container with certificate, can be used for loading goods to overseas.
Specification as below table:
|
Specification |
|||||||
|
|
External (mm) |
Internal (mm) |
M3 |
||||
|
Type |
Length |
Width |
Height |
Length |
Width |
Height |
Int.Volume |
|
20GP |
6058 |
2438 |
2591 |
5898 |
2352 |
2393 |
33.2 |
|
20HC |
6058 |
2438 |
2896 |
5898 |
2352 |
2698 |
37.4 |
|
40GP |
12192 |
2438 |
2591 |
12032 |
2352 |
2393 |
67.7 |
|
40HC |
12192 |
2438 |
2896 |
12032 |
2352 |
2698 |
76.4 |
|
45HC |
13716 |
2438 |
2896 |
13556 |
2352 |
2698 |
86 |
