Solder Fume extractor FES150 has Wide range of applications: Smoke Removal, Dust Removal ,Laser smoke purifier, Harmful Gases Removal ,Beauty nail salon, Printing and Soldering;
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
Fume Extractor
-
Function:
-
Industrial Waste Gas Purification
-
Usage:
-
Dust Smoke Working Enviroment
-
Color:
-
White
-
WEIGHT:
-
16kg
-
Power:
-
150W
-
Voltage:
-
AC110V/220V
-
Dimension:
-
420*250*410 mm
-
After Warranty Service:
-
Online support
Quick Details
-
Weight (KG):
-
14
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KNOKOO
-
Product name:
-
Fume Extractor
-
Function:
-
Industrial Waste Gas Purification
-
Usage:
-
Dust Smoke Working Enviroment
-
Color:
-
White
-
WEIGHT:
-
16kg
-
Power:
-
150W
-
Voltage:
-
AC110V/220V
-
Dimension:
-
420*250*410 mm
-
After Warranty Service:
-
Online support
Product Description

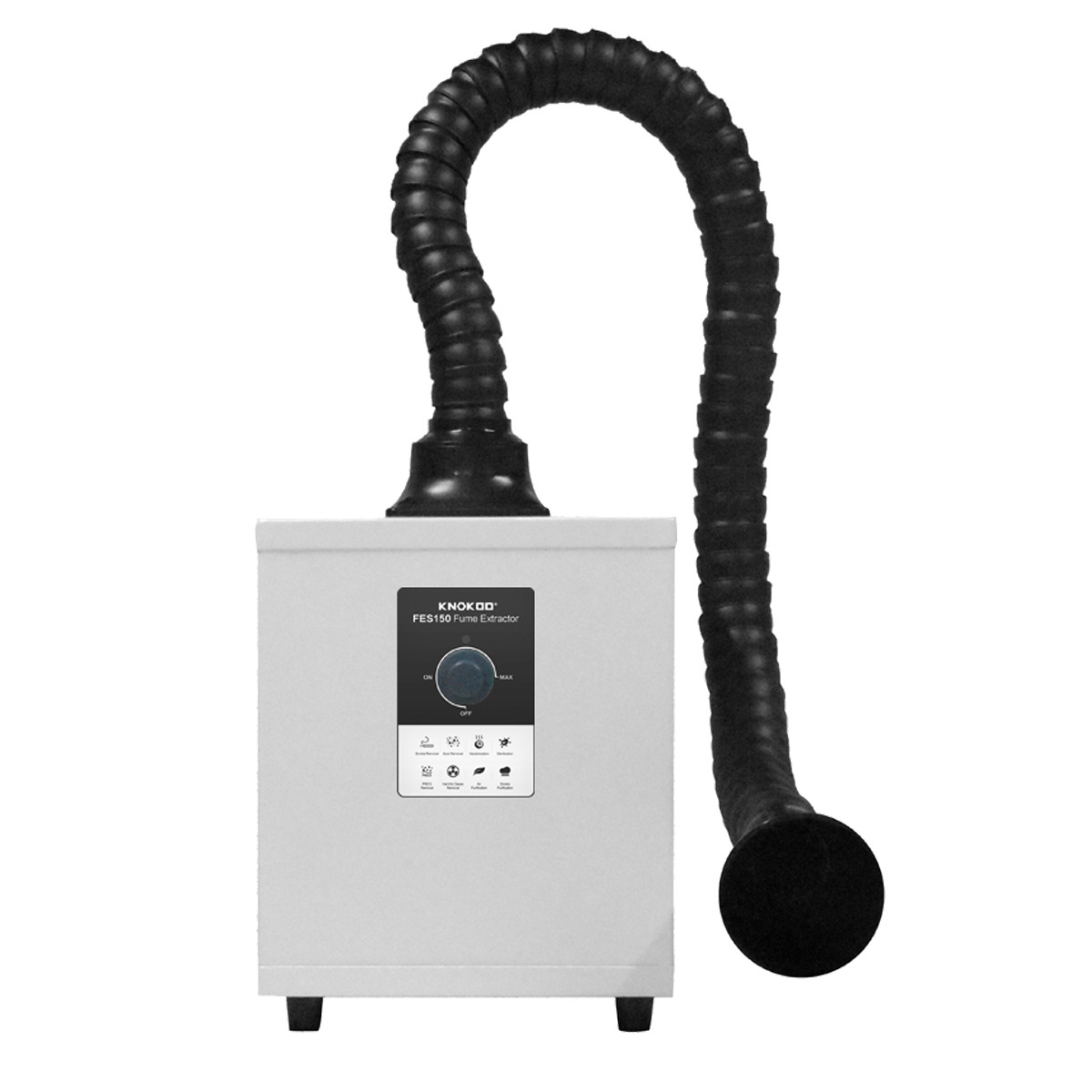

KNOKOO Solder Fume Extractor FES150 150W Strong Sunction
|
Voltag
|
AC 110V AND AC 220V
|
Air Inlet Interface
|
Φ75mm(3" )Flange
|
|
Power
|
150W
|
Noise
|
<55db
|
|
Air Flow
|
278m³/h （163.5CFM）
|
Filtering Efficiency
|
0.3μm 99.97%
|
|
Smoke pipe
|
1.2m(47.24")
|
Dimensions
|
28*24*32cm
|
|
Packing weight
|
12.2 KG
|
Packing Size
|
37*34*55cm(w*d*h)
|
KNOKOO Multiple Filtration Fume Extractor，Trusted Choice
3 STAGES FILTER
.
The fumes and CO, CO2, O3 and other chemical smoke and harmful gas generated by welding, soldering,nail salon, laser, it can be filtered through the primary filter cotton, HEPA filter layer, and activated carbon high efficiency filter layer to achieve 99.97% filtration and purification effect.
Each layer can be replaced separately
.
Three -layer filter Structure has larger dust capacitance than single-layer filter core,
longer service time of filter core and more cost-saving.
longer service time of filter core and more cost-saving.
1st Layer Pre-Filter Cotton
Pre-filter Cotton Filtration PM60 and Dust, replacement in 10-60 days;
2nd Layer Middle HEPA Filter
Middle HEPA filter Filtration PM0.3, replacement in 5-8 months
3rd Layer Main Filter with Activated Carbon
Main filter with Activated Carbon filter Adsorption of harmful Gases and smoke, replacement in 6-12 months.
Multiple filtration system (3 layers)
.
KNOKOO fume absorber continuously exhaust the welding fume and lead mist, and rapid discharges it into the Pre-filter, HEPA filter and activated carbon filter to purifier smoke and unpleasant odors. each layer can be replaced separately. Three -layer filter Structure has larger dust capacitance than single-layer filter core, longer service time of filter core and more cost-saving.
0.3 micron particles of strong purification
.
Through screening filtration, active interception, diffusion adsorption 3 functions to complete the purification of the dust world.
360-degree universal adjustable smoking duct
- The suction pipe is composed of many shortened pipes and each interface can be bent freely, greatly improving the adjustment angle.
SMALL SIZE BODY . The size of the main body is small, and the smoke pipe can be adjusted freely. The workbench at home, the company's production line, on and off the stage, improve your work space utilization, without worrying about machine placement problems. it is effortless to create a healthy indoor air environment for you.
KNOKOO used DC motor, less power consumption, lowe noise .smoke filtered and discharged into the air, in line with the requirements of environmental impact assessment.The power is 87.5% larger than the 80W machine on the market, the suction power is greater, the noise is not increased, and the smoke absorption and purification effect is more better.
SMALL SIZE BODY . The size of the main body is small, and the smoke pipe can be adjusted freely. The workbench at home, the company's production line, on and off the stage, improve your work space utilization, without worrying about machine placement problems. it is effortless to create a healthy indoor air environment for you.
KNOKOO used DC motor, less power consumption, lowe noise .smoke filtered and discharged into the air, in line with the requirements of environmental impact assessment.The power is 87.5% larger than the 80W machine on the market, the suction power is greater, the noise is not increased, and the smoke absorption and purification effect is more better.
KNOKOO Fume Extractor Multifunctional usage scenarios
The use of rich scene.
HEPA Filter for Fume/Particulate Removal
Soldering
3D Printing
Welding
Hair salon
Nail salon
Laser cutting
Grinding
Carbon and Gas Filters for Gas and Vapor Removal
Glues
General fumes Conformal Coating
General fumes Conformal Coating
Fume Extractor Professional Customization .
For laser, Soldering Station, DIY welding, precious metal engraving, DTF printing, beauty, Nail Salon, 3D Printing and other work scenarios, with special smoking pipes,nozzles and accessories, perfect for customers to solve work problems. (Support various scene customization)
.
Optional Accessories
.
1.Pre-calibrating filter cotton and transparent cover
Heavy metals and precious metals can be prevented from clogging pipes and interiors.
You can quickly see the use of the filter element.
2.Front adjustable air valve
Direct control of air volume;
Hand can be adjusted, air volume size visual operation.
No need to remove pipes or bend over to adjust equipment.
|
