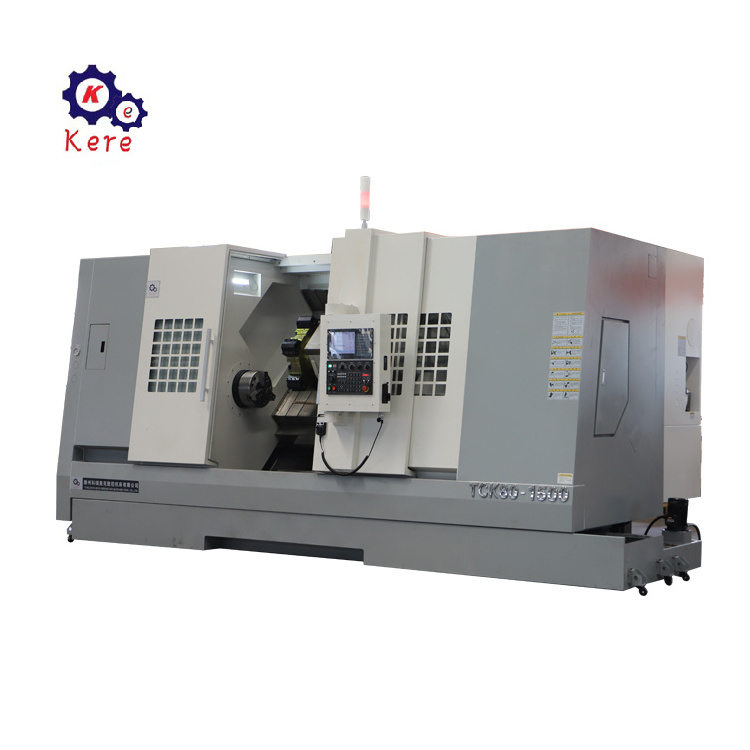

Universal Very Large Low Cost CNC Milling Machine Pipe Threading Lathe TCK80 CNC inclined lathe

Universal Very Large Low Cost CNC Milling Machine Pipe Threading Lathe TCK80 CNC inclined lathe

FOB Reference Price: Get Latest Price

≥1 Sets

US $63720

≥10 Sets

US $60220

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Max. Spindle Speed (r.p.m):: 3500 r.p.m

Width of bed (mm):: 50 mm

Spindle Motor Power(kW):: 18.2/22

Travel (X Axis)(mm):: 250 mm

Travel (Z Axis)(mm):: 3050 mm

Place of Origin:: Shandong, China

Dimension(L*W*H):: 3570*1860*1850

Brand Name:: Kerui Meike

Model Number:: TCK80, TCK80

Voltage:: 220V/380V

Weight (KG):: 6000

Product name:: cnc lathe machining center

Keywords:: automatic feeding cnc lathe

Function:: Machining Metal Lathe

Control system:: GSK SIEMENS FANUC (optional)

Guideways:: Taiwan linear rail

Turret post:: Servo turret 12 position

Features:: High Precision Economical

Spindle speed:: 3500

Quick Details

Type:: TURNING CENTER

Max. Length of Workpiece (mm):: 3000

Year:: 2024

Max. Spindle Speed (r.p.m):: 3500 r.p.m

Width of bed (mm):: 50 mm

Spindle Motor Power(kW):: 18.2/22

Travel (X Axis)(mm):: 250 mm

Travel (Z Axis)(mm):: 3050 mm

Place of Origin:: Shandong, China

Dimension(L*W*H):: 3570*1860*1850

Brand Name:: Kerui Meike

Model Number:: TCK80, TCK80

Voltage:: 220V/380V

Weight (KG):: 6000

Product name:: cnc lathe machining center

Keywords:: automatic feeding cnc lathe

Function:: Machining Metal Lathe

Control system:: GSK SIEMENS FANUC (optional)

Guideways:: Taiwan linear rail

Turret post:: Servo turret 12 position

Features:: High Precision Economical

Spindle speed:: 3500

Products Description

Details Images

10 INCH HOLLOW HYDRAULIC CHUCK

Greater clamping flexibility

12 STATION SERVO

TURRET

Quick tool change and high precision

RETRACTABLE

TAILSTOCK

Wide adjustment range Tail seat travel 2800mm

OPTIONAL CNC SYSTEM

FANU system, Siemens system, Kandi system, Huazhong system new generation system, Guangshu system and other systems are optional.

TAIWAN SCREW

AND RAIL

The X/Z axis rail adopts Taiwan Shangyin/Yintai line rail, and the X/Z axis ball screw adopts Taiwan Shangyin/Yintai ball screw, which has good rigidity.

Product Paramenters

SPECIFICATIONS	Units	TCK80
Max Swing Diameter over bed	mm	800
Max. workpiece length	mm	1000/1500/2000/3000
Spindle bore diameter	mm	80
Spindle nose type	-	A2-11
Spindle speed range	rpm	50-3500
Turret/tool post	-	12 Position servo turret
Chuck	mm	12'' Hollow hydraulic chuck
X axis travel	mm	250
Z axis travel	mm	1020/1520/2050/3050
Xaxis rapid traverse	mm/min	12
Z axis rapid traverse	mm/min	16
Main motor power	kw	18.5/22
Tailstock quill taper	-	MT6
Tailstock travel	mm	900/1400/1950/2950
Guide rail type	-	45° Slant bed linear rail
Machine weight	kg	6000/7000/8000/10000
Overall dimension	mm	3570x1860x1850
