Quick Details
-
Warranty(Year):
-
5-Year
-
Brand Name:
-
BBIER
-
Model Number:
-
BB-GKD-100W-2F1
-
Place of Origin:
-
Guangdong, China
-
Input Voltage(V):
-
100-277VAC/50-60HZ 200-480VAC/50-60HZ available
-
Lamp Luminous Flux(lm):
-
130lm/w
-
Beam Angle(°):
-
120
-
Lamp Luminous Efficiency(lm/w):
-
130
-
Dimmable:
-
aviable in 0-10V Dimmable
-
Other Wattage:
-
100w 160w 200w 300w 400w
-
PF:
-
>0.95
-
Replacement:
-
HPS 300W
-
Product Name:
-
Contemporary new lighting commercial pendant led lights fixtures
-
Type:
-
Contemporary
Quick Details
-
Design Style:
-
Modern
-
Application:
-
Supermarket
-
Body Material:
-
Aluminum
-
Warranty(Year):
-
5-Year
-
Brand Name:
-
BBIER
-
Model Number:
-
BB-GKD-100W-2F1
-
Place of Origin:
-
Guangdong, China
-
Input Voltage(V):
-
100-277VAC/50-60HZ 200-480VAC/50-60HZ available
-
Lamp Luminous Flux(lm):
-
130lm/w
-
Beam Angle(°):
-
120
-
Lamp Luminous Efficiency(lm/w):
-
130
-
Dimmable:
-
aviable in 0-10V Dimmable
-
Other Wattage:
-
100w 160w 200w 300w 400w
-
PF:
-
>0.95
-
Replacement:
-
HPS 300W
-
Product Name:
-
Contemporary new lighting commercial pendant led lights fixtures
-
Type:
-
Contemporary

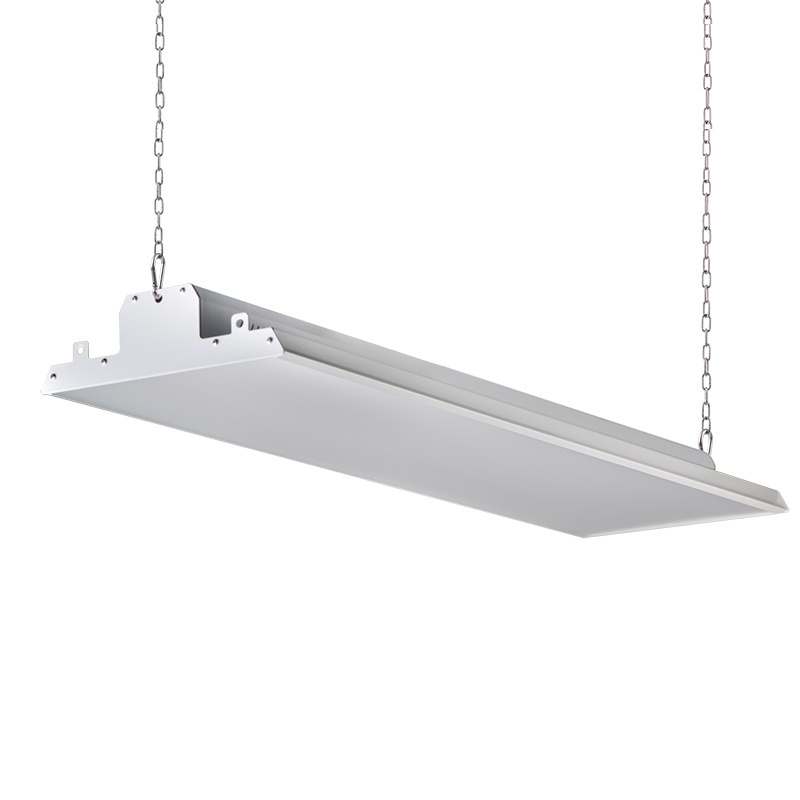

Contemporary new lighting commercial pendant led lights fixtures
Benefits
1.Replace conventional linear high bay lights.
2.Precision die cast aluminum housing.
3.Fade resistant powder coat finish.
4.Easy installation.
5.CE ROHS listed.
Features
1.Beam angle : 120 degrees.
2.Aluminum die casting heat sinks is good for heat dissipation.
3.It's major to replace the conventiona high bay light.
4.Green ,energy saving,long and relialble life of 50,000 hours.
5.No RF interference ,no IR / UV radiation,no mercury pollution.
6.Wide colour availability in degrees Kelvin(K),2700-6700K.
7.Streamline exterior design,beautiful appearance.
8.Environment friendly ,energy saving (70%~80%).
9.Special circuit design,each LED work separately,avoiding the single broken LED influence problem.
Application
1.Parking area lighting;
2.Industrial workshop lighting;
3.Warehouse lighting;
4.Stadium lighting.
5.Airport lighting.
Specifications
| Power | 100W | 160W | 200W | 300W | 400W |
| Model | BB-GKD-100W-2F1 | BB-GKD-160W-2F1 | BB-GKD-200W-4F1 | BB-GKD-300W-4F1 | BB-GKD-400W-4F1 |
| Replacement | HPS 300W | HPS 400W | HPS 600W | HPS 1000W | HPS 1200W |
| Luminous Flux | 13000lm | 20800lm | 26000lm | 39000lm | 52000lm |
| Light Source | SMD LED | ||||
| Luminous Efficacy | 130lm/w | ||||
| Voltage | 100-277VAC/50-60HZ 200-480VAC/50-60HZ available | ||||
| CRI | 80+ | ||||
| Operation Temp. | -40 to +45℃ | ||||
| CCT | 3000K WW/4100K NW/5000K DW/5700K CW | ||||
| Life Span | 50,000 hours at 25 ℃ | ||||
| Dimming | 0-10V dimmable optional | ||||
| Mounting options | Chain | ||||
| Beam Angle | 120 ° | ||||
| PF | >0.95 | ||||
| Warranty | 5 Years | ||||
Dimensional Drawing
Luminous intensity distribution
Projects
By using our 100w linear high bay light to replace 300w traditional linear lamp,
the customer is now able to save a lot per month from his electric bill.
Note
1.Don't take the LED lamp apart.
2.The LED lamp must work under the right voltage according to the specification.
Installation
Suspension chain mounting
Step 1:Turn off the power before installation.
Step 2:Hang the two rings of the lamp with two chains.
Step 3:Wiring right("Black" is connected to "L","White" connect to "N","Green" to "Ground").
Step 4:Make sure it is secure and finished.
Packing INFO
