Quick Details
-
Brand Name:
-
SHANTUI
-
Model Number:
-
DH08
-
Dimension(Long * Breadth * High):
-
4568*2680*2950mm
-
Product name:
-
Crawler Bulldozer
-
Engine:
-
Weichai
-
Model:
-
WP4G95E221
-
Engine power:
-
70kw
-
Track gauge:
-
1650mm
Quick Details
-
Machine Weight:
-
8680 KG
-
Dozing Capacity:
-
1.93cbm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SHANTUI
-
Model Number:
-
DH08
-
Dimension(Long * Breadth * High):
-
4568*2680*2950mm
-
Product name:
-
Crawler Bulldozer
-
Engine:
-
Weichai
-
Model:
-
WP4G95E221
-
Engine power:
-
70kw
-
Track gauge:
-
1650mm
Products Description

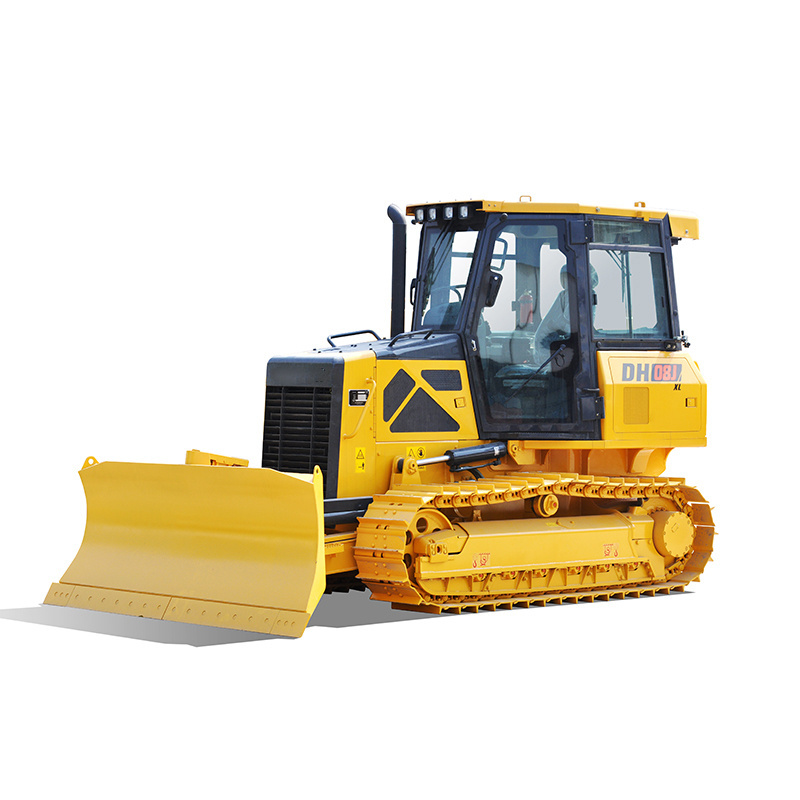

SHANTUI Brand New DH08/DH10 Crawler Bulldozer
Weichai mechanical engines comply with the National II non-road machinery emission regulations and feature high interchangeability of parts and low maintenance costs.
The intelligent matching technology achieves the highest work efficiency and the most reasonable fuel economy.
The intelligent matching technology achieves the highest work efficiency and the most reasonable fuel economy.
Contact way
Aring Zhou
Newindu Construction Engineering (Shanghai) Co., Ltd.
Add: Suite 2806, Super Ocean Finance Center, No.2067 West Yan'an Road, Shanghai 200336, China.
Mobile / Whatsapp/ Wechat: +86-15855426352
Web: www.newindu.com
Newindu Construction Engineering (Shanghai) Co., Ltd.
Add: Suite 2806, Super Ocean Finance Center, No.2067 West Yan'an Road, Shanghai 200336, China.
Mobile / Whatsapp/ Wechat: +86-15855426352
Web: www.newindu.com
Product Paramenters
|
Building
|
Model 8
|
Weichai WP4, China II emissions;
mechanical pump engine |
|
|
net power
|
63kW/2200rpm
|
|
|
Engine size
|
915x624x944mm
|
|
|
Piston displacement
|
4.5L
|
|
|
Engine weight
|
550kg
|
|
|
Maximum torque
|
380 Nm @ 1400-1600 rpm
|
|
Motion transfer system
|
type
|
electronic control
|
|
|
travel pump()
|
2
|
|
|
walking motor()
|
2
|
|
|
Tourism system pressures
|
40 mpa
|
|
|
brake pressure
|
2.5 Mpa
|
|
Driving speed
|
forward
|
0~9km/h
|
|
|
reverse
|
0~9km/h
|
|
Chassis
_ |
Supporting sprocket
|
1 per side
|
|
|
roller
|
6 per side
|
|
|
track shoe width
|
460mm
|
|
|
spacing
|
154mm
|
|
Hydraulic
system |
type
|
2-way hydraulic pilot control
+ 1-way electro-hydraulic hybrid control |
|
|
greatest pressure
|
21 MPa
|
|
|
Working pump (Parker)
|
1
|
|
|
Main valve (hydraulic control)
|
1
|
|
blade
|
blade type
|
VPAT blade
|
|
|
ability to doze
|
1.93 cubic meters
|
|
|
Shovel width
|
2680mm
|
|
|
Blade height
|
950mm
|
|
|
Maximum vertical underground
|
515mm
|
|
|
Maximum lifting height
|
750mm
|
|
|
Maximum vertical underground
|
515mm
|
|
|
maximum tilt
|
350mm
|
|
|
corner
|
25
|
