Coil inner diameter: 450-550 mm
working type: manually
- Product Details
- {{item.text}}
Quick Details
-
Rolling thinckness:
-
0.3-0.8 mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZHONGTUO
-
Voltage:
-
220V-3P-50HZ
-
Weight:
-
10000 kg
-
Feeding width:
-
Other
-
Marketing Type:
-
New design 2023
-
Product name:
-
gutter making machine
-
Control system:
-
Delta
-
Thickness:
-
0.3-0.8 mm
-
Shaft material:
-
80 mm
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Color:
-
Custimized
-
Roller stations:
-
22 roller stations
-
Material of rollers:
-
Gcr12 Steel
-
Control box language:
-
Add Customer Request Language
-
Decoiler:
-
Manual or hydraulic decoiler
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
20 m/min
-
Rolling thinckness:
-
0.3-0.8 mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZHONGTUO
-
Voltage:
-
220V-3P-50HZ
-
Weight:
-
10000 kg
-
Feeding width:
-
Other
-
Marketing Type:
-
New design 2023
-
Product name:
-
gutter making machine
-
Control system:
-
Delta
-
Thickness:
-
0.3-0.8 mm
-
Shaft material:
-
80 mm
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Color:
-
Custimized
-
Roller stations:
-
22 roller stations
-
Material of rollers:
-
Gcr12 Steel
-
Control box language:
-
Add Customer Request Language
-
Decoiler:
-
Manual or hydraulic decoiler
Europe design automatic portable metal iron round rain gutter making rolling machine
Design Idea：
Fast Speed
:
25
m /min forming speed, very fast, more efficiency.
Roll forming Effect:
The finished gutter no burr no deformation.
Processing Flow
Uncoiling → Feeding Material Into Machine →Roll Forming → Auto Cutting →Products Receiving Table
|
round gutter making machine
|
|
|
|
Raw Material
|
PPGI,PPGL
|
|
|
Raw material
|
Material Thickness: 0.3-0.8 mm
|
|
|
Machine Frame
|
400mm H beam structure
|
|
|
Material Of Rollers
|
High grade 45# forged steel,Chromed treatment
|
|
|
Roller Stand
|
Vertical cast steel structure
|
|
|
Forming Stations
|
16 rows
|
|
|
Diameter Of Shafts
|
Φ80mm Solid
|
|
|
Material Of Shafts
|
High Grade 45#,With Heat Treatment
|
|
|
Forming Speed
|
20 M/Min
|
|
|
Voltage
|
380v/50hz/3p (As Requested)
|
|
|
Transmission Way
|
By double chains
|
|
|
Main Motor
|
5.5 KW
|
|
|
Cutting Blade Material
|
Gcr12 quenched treatment
|
|
|
Cutting Type
|
hydraulic post cutting
|
|
|
Driving method
|
By pillar type Cylinder
|
|
5T
Hydraulic Decolier
Capacity:3 tons
Feeding Device
The feeding device can be adjustable, and have rollers to protect the material from scrached.
The machine rollers
1.rollers thick chromed good hardness for long service time.
2. Each roller has number and with keynotes, it can fix on the shaft stably
3. Double chains drive, no easy loose.

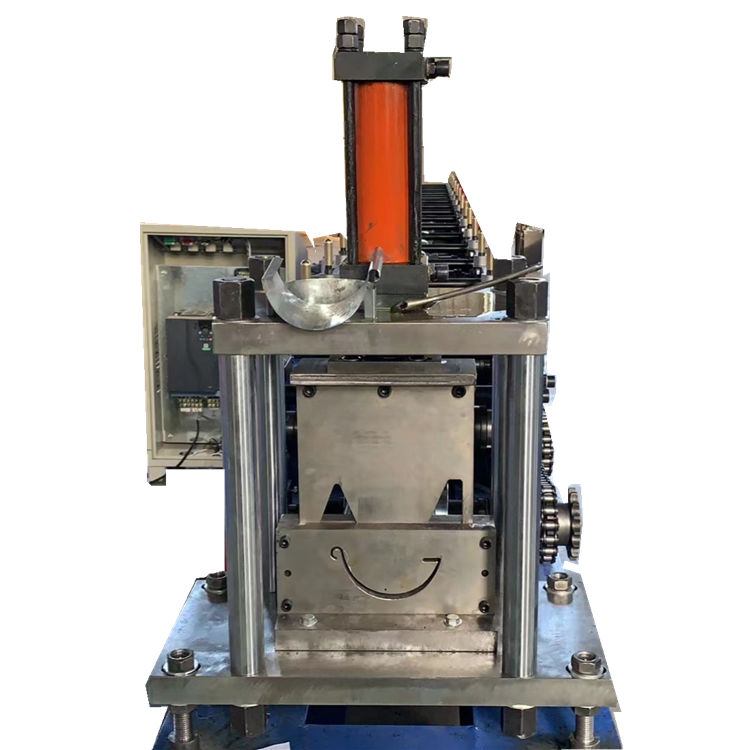

Hydraulic Cutting Device
We use four pillars cutting system structure, it can make sure the cutting stable
PLC control system
Hydraulic station
● Hydraulic station motor:7.5KW
● Hydraulic oil:46# hydraulic oil
● Main components:Include a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And one of electromagnetism valve
Product collect table
Length: 3 m length
CE(
NO.OP180719.CZIDC95
)
ISO 9001(No:ZL92090220234630)
